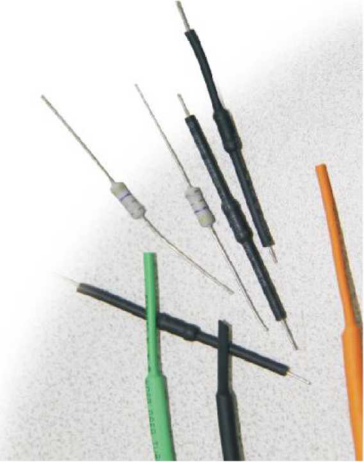

0.8mm Heat Shrink Insulation Tube ASTM D 2671 Flexible Thin Wall Halogen Free
0.8mm Heat Shrink Insulation Tube ASTM D 2671 Flexible Thin Wall Halogen Free
Specifications
Brand Name :
WOER
Model Number :
3/64 (0.8mm)
Certification :
ISO
Place of Origin :
China
MOQ :
10m
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
400000meters per day
Delivery Time :
1-9days
Packaging Details :
Roll/Carton
Wall :
Ultra thin wall
Flexible :
Flexible
Halogen free or not :
Halogen free
Continuous operating Temperature :
-55°C to 125°C
Fully shrink temperature :
124°C
Longitudinal change(%) :
-5%~+5%
Tensile strength(MPa) :
5=10.4
Ultimate elongation(%) :
2200
Description

Thin Wall Halogen Free,Flexible Heat Shrink Tubing With UL Certificate

Thin wall halogen free,flexible

heat shrink tubing.

Features

• Ultra thin wall

• Flexible

• Halogen free

• Flame retardant

• low smoke generation if burning

• Continuous operating

Temperature:-55°C to 125°C

• Fully shrink temperature: 125°C

• RoHS and Sony compliant

Dimensions

Size As Supplied After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter Max mm Wall Thickness Nom mm Spool Length M/spool
3/64 0.8 1.1±0.2 0.50 0.22 200
1/16 1.0 1.5±0.2 0.65 0.28 200
1.5 2.0±0.2 0.85 0.32 200
3/32 2.0 2.5±0.2 1.00 0.35 200
2.5 3.0+0.2 1.30 0.38 200
1/8 3.0 3.5±0.2 1.50 0.40 200
3.5 4.0±0.2 1.80 0.42 200
4.0 4.5±0.2 2.00 0.45 200
3/16 4.5 5.0±0.2 2.30 0.50 100
5.0 5.5±0.2 2.5 0.55 100
1/4 6.0 6.5±0.2 3.0 0.55 100
5/16 7.0 7.5±0.3 3.5 0.55 100
8.0 8.5+0.3 4.0 0.60 100
3/8 9.0 9.5±0.3 4.5 0.60 100
10.0 10.5±0.3 5.0 0.60 100
11.0 11.5±0.3 5.5 0.60 100
1/2 12.0 12.510.3 6.0 0.60 100
13.0 13.5±0.3 6.5 0.65 100
14.0 14.510.3 7.0 0.65 100
5/8 15.0 15.5±0.4 7.5 0.70 100
16.0 16.5±0.4 8.0 0.70 100
17.0 17.5+0.4 8.5 0.70 100
3/4 18.0 19.010.5 9.0 0.80 100
20.0 21.0±0.5 10.0 0.80 100
22.0 23.010.5 11.0 0.80 100
1 25.0 26.010.5 12.5 0.90 50
28.0 29.010.5 14.0 0.90 50
1-1/4 30.0 31.5±1.0 15.0 0.95 50
35.0 36.5±1.0 17.5 1.00 50
1-1/2 40.0 41.5+1.0 20.0 1.00 50
45.0 46.511.0 22.5 1.00 25
2 50.0 >50 25.0 1.00 25
60.0 N60 31.0 1.30 25
70.0 >70 36.0 1.30 25
3 80.0 )80 41.0 1.46 25
90.0 >90 46.0 1.46 25
4 100.0 ^100 51.0 1.46 25
5 120.0 >120 61.0 1.56 25
6 150.0 >150 76.0 1.56 25
7 180.0 >180 91.0 1.56 25

Technical Data

I Property I Test Method Typical Performance I
Tensile strength(MPa) ASTM D 2671 5=10.4
Ultimate elongation(%) ASTM D 2671 2200
Tensile strength after heat aged (Mpa) 158°CX168h N7.3
Ultimate elongation after heat aged (%) 158°CX168h ^100
Longitudinal change(%) ASTM D 2671 -5%~+5%
Flammability ASTM D 2671 C method VW-1
Dielectric strength (kV/mm) ASTM D 149 M15
Volume resistivity (Q-cm) ASTM D 876 mio"
