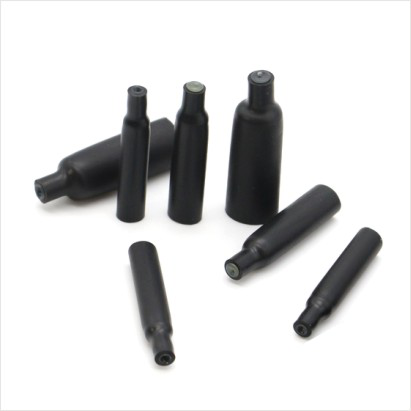

Adhesive Lined Heat Shrink Insulation Tube 22mm 3.2mm End Cap
Adhesive Lined Heat Shrink Insulation Tube 22mm 3.2mm End Cap
Adhesive Lined Heat Shrink Insulation Tube 22mm 3.2mm End Cap
Adhesive Lined Heat Shrink Insulation Tube 22mm 3.2mm End Cap
Specifications
Brand Name :
Long
Model Number :
SBRS-CAPS
Certification :
ISO
Place of Origin :
China
MOQ :
1piece
Payment Terms :
D/A, D/P, T/T, L/C, Western Union, MoneyGram
Supply Ability :
400000pieces per day
Delivery Time :
1-9days
Packaging Details :
bag/Carton
Material :
PE
Colour :
Black
Shrink Ratio :
4:1
Inner Wall :
With Glue
Size :
3.2mm
Standard Length :
22mm
Continuous operating temperature :
-45℃- 125℃
Minimum shrinking temperature :
125℃
Description

Adhesive-Lined Insulating Caps

Adhesive lined, heat shrink insulating caps specifically designed to insulate, seal and protect end or stub splices in wiring harness and electronic assemblies

Features

● 4:1 shrink ratio allows fewer sizes to cover a wide range of profiles

● Seals and protects against water, moisture and chemical

● Adhesive bonds readily to PVC, XLPE and PP-EPDM cable jackets

● Shrinks rapidly for quick installation

● Continuous operating temperature:-45℃- 125℃

● Minimum shrinking temperature: 125℃

Dimensions

Code

Size

(mm)

 Standard Length(mm) Expanded Recoverd
Internal Diameter Min(mm) Internal Diameter Max(mm) Outer Layer Thickness (mm) Adhesive Thickness (mm) Total Wall Thickness (mm)
A B
CAPS-1 3.2 22 12.7 3.2 0.80 0.64 0.56 1.20
CAPS-2 4.8 25.4 15.2 4.8 1.30 0.76 0.76 1.52
CAPS-3 6.4 28.4 15.2 6.4 1.52 1.00 0.91 1.91
CAPS-4 9.5 31.8 18.3 9.5 2.00 1.08 1.00 2.08
CAPS-5 12.7 38.1 21.6 12.7 2.41 1.30 1.24 2.54

Technical Data

Property Test Method Stantard Typical Performance
Tensile Strengtn(MPa) ASTM D2671 ≥10.4 11.5
Elongation(%) ASTM D2671 ≥300 450
Tensile Strengtn after aging (MPa) UL224 158℃X168hr ≥7.3 8.5
Elongation after aging(%) UL224 158℃X168hr ≥200 350
Dieletric strength(kv/mm) IEC243 ≥15 17.5
Volume resistivity(Ω.cm) ASTM D876 ≥1X1014 2.5X1014

Adhesive

Property Test Method Stantard
Water Absorption ASTM D570 ≤0.2%
Sofening Point(℃) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm

Adhesive Lined Heat Shrink Insulation Tube 22mm 3.2mm End Cap

FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
