Halogen Free Heat Shrink Tube Adhesive Lined Dual Wall Heat Shrink Tube 12.7mm
Halogen Free Heat Shrink Tube Adhesive Lined Dual Wall Heat Shrink Tube 12.7mm
Specifications
Brand Name :
Long
Model Number :
12.7mm
Certification :
ISO
Place of Origin :
China
MOQ :
1m
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
400000meters per day
Delivery Time :
1-9days
Packaging Details :
Roll/Carton
Feature :
Waterproof Insulating
Shrink Ratio :
3:1
Halogen free :
Halogen free
Super sealing against water, moisture or other contaminates :
Super sealing against water, moisture or other contaminates
Continuous operating temperature :
-45℃- 125℃
Shrink Temperature :
125℃
Compliant :
Sony compliant
MOQ :
1meter
Description

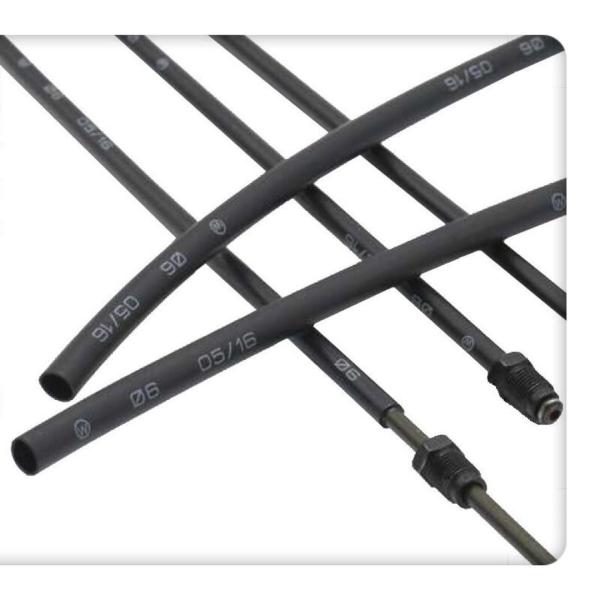

12.7mm Halogen Free Dual Wall Adhesive Lined Heat Shrink PE Tubing

Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.

Features


● 3:1 shrink ratio

● Halogen free

● Super sealing against water, moisture or other contaminates

● Continuous operating temperature:-45℃- 125℃

● Shrink Temperature:125℃

● Shrink ratio: 3:1

● Sony compliant

Dimensions

SizeExpandedAfter RecoveryStandard Package
Inch

Internal Diameter mmInternal Diameter mmTotal Wall Thickness mmAdhesive Thickness mmSpool Length M/spool
3/322.42,40.80.85±0.150.40±0.10200
1/83.23,21.00.95±0.150.40±0.10200
3/164.84,81.61.10±0.150.40±0.10100
1/46.46,42.21.20±0.150.45±0.12100
5/167.97,92.71.35±0.150.50±0.12100
3/89.59,53.21.45±0.200.50±0.1250
1/ 212.712,74.21.70±0.200.50±0.121.22 OR 25M/Roll
5/815155.21.80±0.200.55±0.151.22 OR 25M/Roll
3/419.119,16.32.00±0.200.55±0.151.22 OR 25M/Roll
125.425,48.52.10±0.250.55±0.151.22 OR 25M/Roll
1-1/4303010.22.20±0.250.60±0.151.22 OR 25M/Roll
1-1/2393913.52.40±0.250.60±0.151.22 OR 25M/Roll
25050172.70±0.250.70±0.151.22 OR 25M/Roll
5/26464213.00±0.300.70±0.151.22 OR 25M/Roll
37575253.00±0.301.00±0.201.22 OR 25M/Roll
7/29090303.00±0.301.00±0.201.22 OR 25M/Roll
4100100343.00±0.301.00±0.201.22 OR 25M/Roll
5125125423.00±0.301.00±0.201.22 OR 25M/Roll


Technical Data

PropertyTest MethodStantard
Tensile Strengtn(MPa)ASTM D2671≥10.4
Elongation(%)ASTM D2671≥300
Tensile Strengtn after aging (MPa)UL224 158℃X168hr≥7.3
Elongation after aging(%)UL224 158℃X168hr≥200
FlammabilityASTM D2671BSelf-extinguish within 30s
Dieletric strength(kv/mm)IEC243≥15
Volume resistivity(Ω.cm)ASTM D876≥1X1014


Adhesive
PropertyTest MethodStantard
Water AbsorptionASTM D570＜0.5
Sofening Point(℃)ASTM E2890±5
Strength of pearing(PE)ASTM D 1000120N/25mm
Strength of pearing(AL)ASTM D 100080N/25mm
