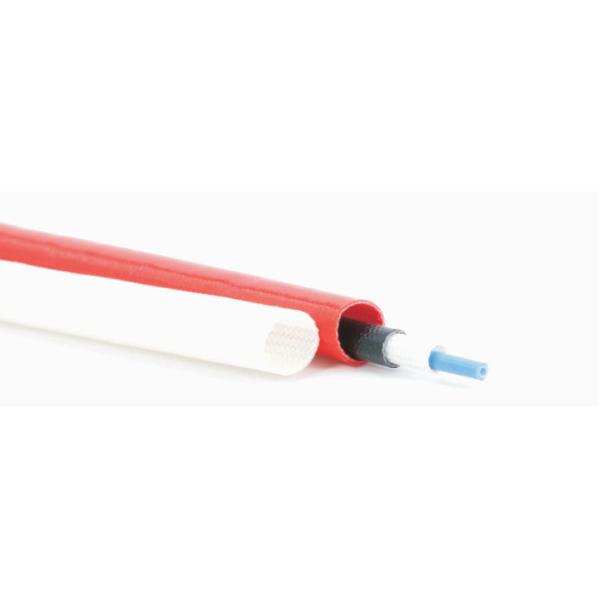

White Silicone Fiberglass Sleeve 100m , 12mm Braided Fiberglass Tube
White Silicone Fiberglass Sleeve 100m , 12mm Braided Fiberglass Tube
White Silicone Fiberglass Sleeve 100m , 12mm Braided Fiberglass Tube
White Silicone Fiberglass Sleeve 100m , 12mm Braided Fiberglass Tube
White Silicone Fiberglass Sleeve 100m , 12mm Braided Fiberglass Tube
White Silicone Fiberglass Sleeve 100m , 12mm Braided Fiberglass Tube
White Silicone Fiberglass Sleeve 100m , 12mm Braided Fiberglass Tube
White Silicone Fiberglass Sleeve 100m , 12mm Braided Fiberglass Tube
Specifications
Brand Name :
Long
Model Number :
Fiber-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
100mter
Price :
0.033/m
Payment Terms :
T/T, Western Union, MoneyGram, D/A, D/P, L/C
Supply Ability :
400000m/per day
Delivery Time :
1-9days
Packaging Details :
Carton& Pallet
Material :
Silicone Rubber and Fiberglass
Colour :
White
Size :
As order
Length :
100m or cut for you
Certificate :
ISO9001
Feature :
Two types: Inner fiberglass outside braided rubber&inner silicone rubber outside fiberglass braided
Voltage :
1.5KV, 2.5KV, 4KV , 7KV
Operating temperature :
-55℃- 200℃
Description

White Silicone Rubber Braided Fiberglass Tube Insulating Protection

Silicone Rubber Braided Tube

General insulating protection for various household appliances, light fitting, machines, electronic instruments, etc

Features

● Two types: Inner fiberglass outside braided silicone rubber(SRG-N) Inner silicone rubber outside fiberglass braided(SRG-W)

● Operating temperature:-55℃- 200℃

● RoHS compliant; UL approved

● Good flexibility, arc resistance, corona resistance

Standard color: white (Other colors upon request)

Dimensions

Size Internal Diameter (mm) Average Wall Thickness (mm) Standard Package M/Spool
1500V, 2500V 4000V 7000V
0.5 0.5 ± 0.30 0.20 ± 0.10 0.40 ± 0.10 0.45 ± 0.10 100
1.0 1.0 ± 0.30 0.20 ± 0.10 0.40 ± 0.10 0.45 ± 0.10 100
1.5 1.5 ± 0.30 0.20 ± 0.10 0.40 ± 0.10 0.45 ± 0.10 100
2.0 2.0 ± 0.30 0.20 ± 0.10 0.40 ± 0.10 0.45 ± 0.10 100
2.5 2.5 ± 0.30 0.20 ± 0.10 0.40 ± 0.10 0.50 ± 0.10 100
3.0 3.0 ± 0.35 0.23 ± 0.10 0.40 ± 0.10 0.50 ± 0.10 100
3.5 3.5 ± 0.35 0.23 ± 0.10 0.45 ± 0.10 0.55 ± 0.10 100
4.0 4.0 ± 0.35 0.23 ± 0.10 0.45 ± 0.10 0.55 ± 0.10 100
4.5 4.5 ± 0.35 0.23 ± 0.10 0.45 ± 0.10 0.55 ± 0.10 100
5.0 5.0 ± 0.45 0.30 ± 0.10 0.45 ± 0.10 0.55 ± 0.10 100
6.0 6.0 ± 0.45 0.30 ± 0.10 0.50 ± 0.10 0.60 ± 0.10 100
7.0 7.0 ± 0.60 0.35 ± 0.10 0.50 ± 0.10 0.60 ± 0.10 50
8.0 8.0 ± 0.60 0.35 ± 0.10 0.50 ± 0.10 0.60 ± 0.10 50
9.0 9.0 ± 0.60 0.35 ± 0.10 0.50 ± 0.10 0.60 ± 0.10 50
10.0 10.0 ± 0.80 0.43 ± 0.10 0.60 ± 0.10 0.65 ± 0.10 50
12.0 12.0 ± 0.80 0.43 ± 0.10 0.60 ± 0.10 0.65 ± 0.10 50
