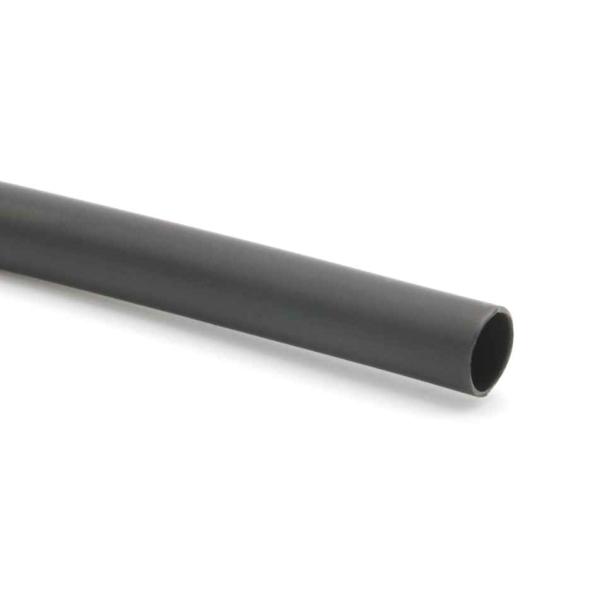

6mm Heat Shrink Insulation Tube Singel Wall Black PE
6mm Heat Shrink Insulation Tube Singel Wall Black PE
6mm Heat Shrink Insulation Tube Singel Wall Black PE
6mm Heat Shrink Insulation Tube Singel Wall Black PE
Specifications
Brand Name :
Long
Model Number :
6.0mm
Certification :
ISO
Place of Origin :
China
MOQ :
1m
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
400000meters per day
Delivery Time :
1-9days
Packaging Details :
Roll/Carton
Material :
PE
Size :
6mm
Shrink ratio :
2:1
Wall thickness :
Singel Wall
Heat shock(%) :
No cracks, flowing or dripping
Cold blend :
No cracks
Dielectric strength (kv/mm) :
N15
Water absorption(%) :
<0.5
Description

150℃ Flame Retardant Black PE Heat Shrink Tubing With Shrink Ratio 2X

150°c Flame retardant heat shrink tubing

Features

• 2:1 shrink ratio

• Flame retardant

• Good resistance to common fluids and solvents

• UL approved

• Continuous operating temperature:-55°C ~150°C

• Fully shrink temperature:135°C

• RoHS compliant

Dimensions

Size As Supplied After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Wall Thickness mm Spool Lenqth M/spooF
3/64 1.0 N1.20 W0.60 0.41±0.10 200
1/16 1.5 5=1.60 W0.80 0.43±0.10 200
3/32 2.5 N2.40 W1.20 0.51±0.10 200
1/8 3.0 N3.20 ^1.60 0.5110.10 200
3/16 4.5 ^4.80 <2.40 0.51±0.10 100
1/4 6.0 N6.4. W3.20 0.64±0.10 100
3/8 9.0 N9.50 W4.80 0.64±0.10 100
1/2 12 5=12.7 <6.40 0.64±0.10 100
3/4 18 N19.1 W9.50 0.76±0.15 100
1 25 N25.4 W12.7 0.89±0.15 50
5/4 32 N32 W15.9 0.8910.15 50
3/2 38 N38 W19.1 1.00±0.15 50
2 50 N51 <25.4 1.15±0.15 25
3 75 N76 W38.1 1.27±0.20 25
4 100 N102 W50.8 1.40±0.20 25
5 120 >125 W63.5 1.40±0.25 25

Technical Data

I Property Test Method Typical Performance I
Tensile strength(MPa) ASTM D2671 5=10.4
Ultimate elongation(%) ASTM D2671 >200
Tensile strength after heat aged(Mpa) 180°CX168h N7.3
Ultimate elongation after heat aged (%) 180°CX168h >100
Corrosion UI224 Pass
Flammability ASTM D 2671C method VW-1
Voltage withstand 2500V, 60s No breakdown
Heat shock(%) 250°CX4h No cracks, flowing or dripping
Cold blend -30°CX1 h No cracks
Dielectric strength (kv/mm) ASTM D 149 N15
Volume resistivity (Q-cm) ASTM D 876 ^1014
Water absorption(%) UL224 <0.5
