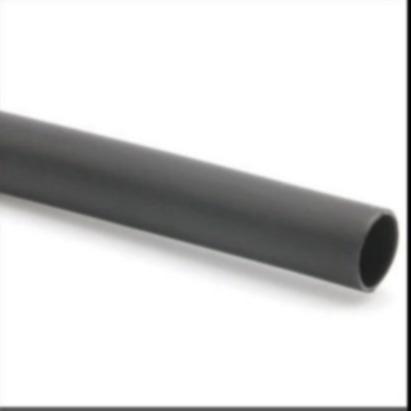

0.4mm Polyolefin Heat Shrink Tubing Irradiated PO Flexible Flame Retardant
0.4mm Polyolefin Heat Shrink Tubing Irradiated PO Flexible Flame Retardant
Specifications
Brand Name :
Long
Model Number :
AWG18-1mm
Certification :
ISO
Place of Origin :
China
MOQ :
1m
Price :
0.03
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
400000meters per day
Delivery Time :
1-9days
Packaging Details :
Roll/Carton
Material :
PE-PO
Color :
Black
Shrink ratio :
Non-shrinkable
Certificate :
RoHS compliant
Operating temperature :
90°C
Wall thickness :
0.4mm
Packing :
200m/roll
MOQ :
1meter
Description

PO Non Shrinkable Irradiated Flexible Flame Retardant Polyolefin Tubing

Non-shrinkable, Irradiated .Flexible

Flame-retardant,Polyolefin Tubing.

Features

Flexible

Flame retardant

Operating temperature:-55°C~+125°C

RoHS compliant.

Dimensions

Size(AWG) Internal Diameter(mm) Wall Thickness(mm) Standard Package (M/Spool)
AWG18 1.00±0.10 0.40±0.06 200
AWG16 1.30±0.10 0.40±0.06 200
AWG14 1.65+0.10 0.40±0.06 200
AWG12 2.10±0.15 0.40±0.06 200
AWG10 2.6010.15 0.50+0.08 200
AWG8 3.30±0.15 0.50±0.08 200
AWG6 4.10±0.20 0.50±0.08 100
AWG4 5.20±0.20 0.50±0.08 100
AWG2 6.50±0.20 0.50±0.08 100
AWGO 8.30±0.30 0.50±0.08 100
3/8〃 9.50±0.40 0.50±0.08 100
7/16〃 11.10±0.40 0.50+0.08 100
1/2〃 12.70±0.40 0.50±0.08 100

Technical Data

I Property Test Method Typical Performance I
Tensile strength(MPa) ASTMD2671 210.4
Ultimate elongation(%) ASTM D2671 5=200
Water absorption (%) ASTM D 570 W0.5
Dielectric strength (kv/mm) ASTM D 149
Volume resistivity (Q-cm) ASTM D 876 >1014
