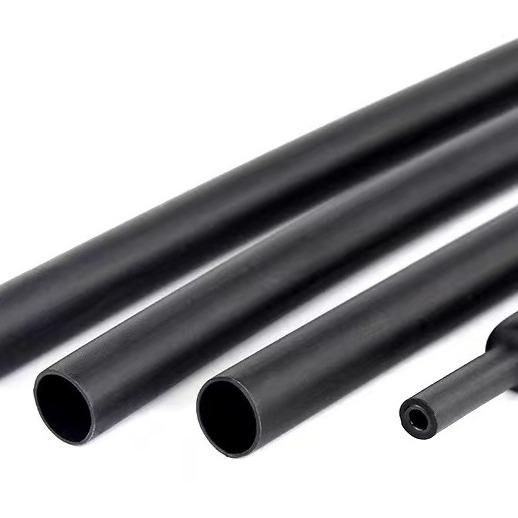

ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing
ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing
ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing
ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing
ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing
ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing
Specifications
Brand Name :
Long
Model Number :
16/4mm
Certification :
ISO
Place of Origin :
China
MOQ :
2m
Price :
0.039
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
200000meters per day
Delivery Time :
2-5days
Packaging Details :
Roll/Carton
Shrink Ratio :
4:1
Flame retardant :
Out jacket only
Superior sealing against :
Superior sealing against water
Size :
16mm shrink to 4mm
Inner :
Inner adhesive bonds to plastics, steel and polyethylene
With Adhesive :
to plastics, steel and polyethylene
Continuous operating temperature :
-45℃- 120℃
Shrink Temperature :
120℃
Description

4:1 heat shrink tubing 16mm/4mm with glue dual wall tubing

Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.

Thickened adhesive, waterproof, anti-corrosion, wear resistance, good insulation.

Features

● 4:1 shrink ratio

● Low longitudinal shrinkage

● Superior sealing against water, moisture or other contaminants

● Ideal for connector sealing covering large diameter differences

● Inner adhesive bonds to plastics, steel and polyethylene

● Flame retardant( out jacket only)

● Continuous operating temperature:-45℃- 126℃

● Shrink Temperature:124℃

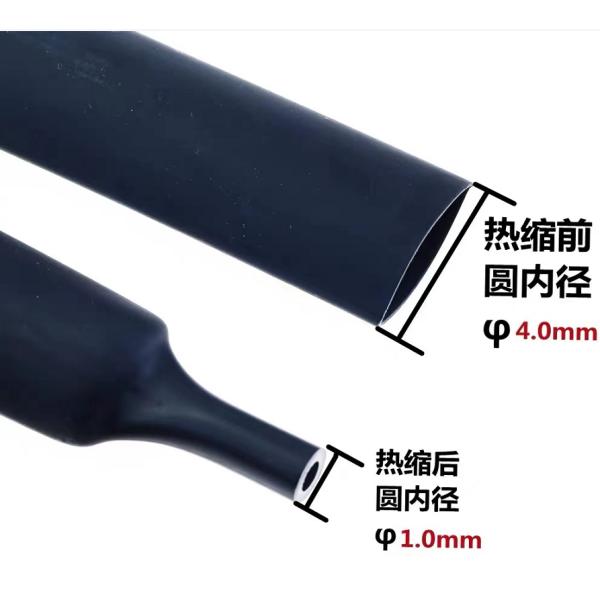

Dimensions

Size Expanded After Recovery Standard Package
Inch

Internal Diameter mm Internal Diameter mm Total Wall Thickness mm Adhesive Thickness mm Spool Length M/spool
5/32 4.0 4,0 1.0 1.00±0.15 0.40±0.15 200
1/4 6.0 6,0 1.5 1.10±0.15 0.40±0.15 100
5/16 8.0 8,0 2.0 1.50±0.15 0.50±0.15 50
1/ 2 12.0 12,0 3.0 1.70±0.15 0.50±0.15 1.22 OR 25M/Roll
5/8 16.0 16,0 4.0 2.00±0.15 0.60±0.15 1.22 OR 25M/Roll
25/32 20.0 20,0 5.0 2.30±0.25 0.60±0.15 1.22 OR 25M/Roll
1 24.0 24,0 6.0 2.60±0.25 0.60±0.15 1.22 OR 25M/Roll
1-1/4 32.0 32,0 8.0 3.00±0.30 0.70±0.15 1.22 OR 25M/Roll
1-1/2 40.0 40,0 10.0 3.00±0.30 0.70±0.15 1.22 OR 25M/Roll
2 52.0 52,0 13.0 3.30±0.30 0.70±0.15 1.22 OR 25M/Roll

Technical Data
Property Test Method Stantard Typical Performance
Tensile Strengtn(MPa) ASTM D2671 ≥10.4 11.5
Elongation(%) ASTM D2671 ≥300 450
Tensile Strengtn after aging (MPa) UL224 158℃X168hr ≥7.3 8.5
Elongation after aging(%) UL224 158℃X168hr ≥200 350
Flammability ASTM D2671B Self-extinguish within 30s
Dieletric strength(kv/mm) IEC243 ≥15 17.5
Volume resistivity(Ω.cm) ASTM D876 ≥1X1014 2.5X1014

Hot Melt Adhesive Property

Property Test Method Stantard
Water Absorption ASTM D570 ≤0.2%
Sofening Point(℃) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm

Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.

At Longchuang, we know this can be done.
