Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts
Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts
Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts
Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts
Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts
Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts
Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts
Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts
Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts
Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts
Specifications
Brand Name :
HUIXUAN
Model Number :
4340，20CrMnMo,34CrNiMo7-6,18CrNiMo7-6
Certification :
ASTM，ASME，DIN，JIS，ISO，BS，API，EN
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000-5000Ton/month
Delivery Time :
30-50Days
Packaging Details :
Plywood case,Wooden pallet,Steel frame
Heating treatment :
N+T Q+T
Forging ratio :
≥5
MOQ :
1PC
Max Weight :
30T
Melting proce :
EF+LF+VD
Material :
Steel
Molding Style :
Forging
Application :
Cement Construction Machinery
Description

Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts ​

Products:

cement machinery gear parts,construction gear parts,first grade big gear,second grade big gear.

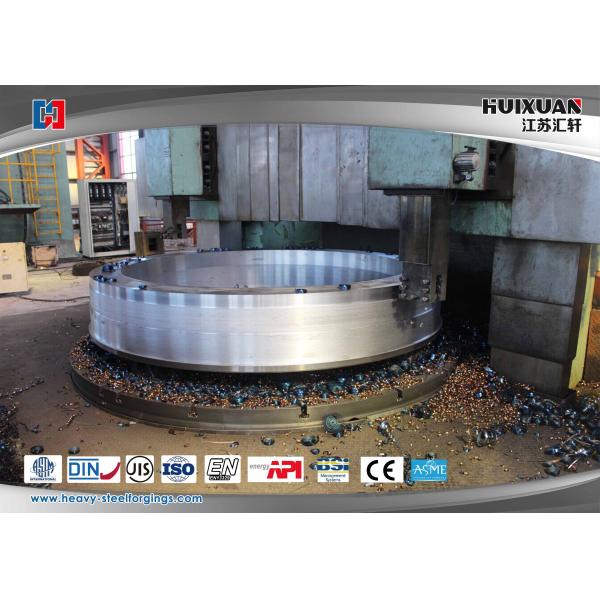

Big gear ring of cement grinding mill to rotate cement grinding mill equipment by first grade big gear ring and second grade big gear ring’s coordinate.

Products reference:

Material 4340,20CrMnMo,34CrNiMo7-6,18CrNiMo7-6
Forging equipment 4000T open die hydorpress
Application

Cement construction machinery,mining metallurgical equipment

Melting process

 EF+LF+VD
Production process

Forging+heat treatment,rough machining+QT+hobbing+gear grinding+finish machining
Forging ratio

≥5
Applicable standard ASTM,ASME,DIN,JIS,ISO,BS,API,EN

Executive standard

 JB/GB/EN/DIN/JIS/ASME/ASTM/ISO

Certification authority

 ISO,BV,SGS, IST, UL,CTI
Delivery term

Rough machining(N+T);finish machining(Q+T),nitriding quenching

Test equipment

Spectrograph,UT device ,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,trilinear coordinate measuring machine,hardness test machine
Service Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.

Hydraulic Press Open Die Forgings 4000T Cement Machinery Gear Parts

Custom properties

Material elements C Si Mn P S Cr Ni Mo

Others
20CrMnMo 0.17-0.23 0.17-0.37 0.90-1.20 0.035 0.035 1.10-1.40 0.30 0.20-0.30 0.17-0.23
34CrNiMo6 0.30-0.38 ≤0.040 0.50-0.80 ≤0.035 ≤0.035 1.30-1.70 1.30-1.70 0.15-0.30
18CrNiMo7-6 0.15-0.21 0.17-0.35 0.50-0.90 ≤0.025 ≤0.025 1.50-1.80 1.40-1.70 0.25-0.35
4340 0.38-0.43 0.15-0.35 0.60-0.80 ≤0.035 ≤0.040 0.70-0.90 1.65-2.00 0.20-0.30 -

Mechanical property

Dia.(mm)

TS/Rm(Mpa)

YS/Rp0.2(Mpa)

EL/A5(%)

RA/Z(%)

Type Of notch

Impact energy

HBW
20CrMnMo Ø15 ≥1180 ≥885 ≥10 ≥45 V ≥55 ≤217HBS
34CrNiMo6 Ø15 750-900 450-600 ≥13 ≥55 V -40℃≥20 ≤269HBS
18CrNiMo7-6 Ø15 ≥980 ≥785 ≥9 ≥40 V ≥47 ≤269HBS
4340 Ø15 ≥980 ≥835 ≥12 ≥55 V ≥78 ≤179HBS

Process procedure:

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment

Commerce clause

Max weight 30T
MOQ 1PC
Delivery time 30-50 days

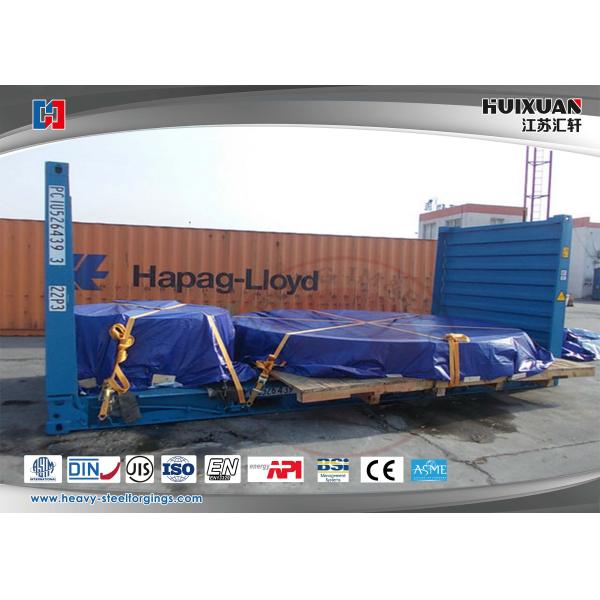

Package Plywood case,wood pallet,steel frame
Delivery term FOB;CIF;CFR；DDU；
Payment term T/T,LC
Type of shipping

By ocean,air

Advantage

  1. High-precision dimensional tolerance;
  2. Excellent mechanical properties;
  3. Produce different dimension based on customer’s requirements;
  4. Advanced manufacture equipments and inspection devices;
  5. Excellent technical personality;
  6. Control the production procedure strictly;
  7. Pay attention on the package protection;
  8. Quality full service.
