Steel Forged Custom Roll Shaft 15000MM For Veneer Reeling Machine
Steel Forged Custom Roll Shaft 15000MM For Veneer Reeling Machine
Steel Forged Custom Roll Shaft 15000MM For Veneer Reeling Machine
Steel Forged Custom Roll Shaft 15000MM For Veneer Reeling Machine
Steel Forged Custom Roll Shaft 15000MM For Veneer Reeling Machine
Steel Forged Custom Roll Shaft 15000MM For Veneer Reeling Machine
Steel Forged Custom Roll Shaft 15000MM For Veneer Reeling Machine
Steel Forged Custom Roll Shaft 15000MM For Veneer Reeling Machine
Specifications
Brand Name :
HUIXUAN
Model Number :
Max Length 15000mm
Certification :
ISO，BV,SGS,IST,UL.CTI
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000-4000 Ton/Month
Delivery Time :
30-60 days
Packaging Details :
Wood pallet,steel frame
Size :
As drawing
Heat treatment :
N+T Q+T
Material :
Steel
Forging ratio :
≥3.5
Melting process :
EF+LF+VD

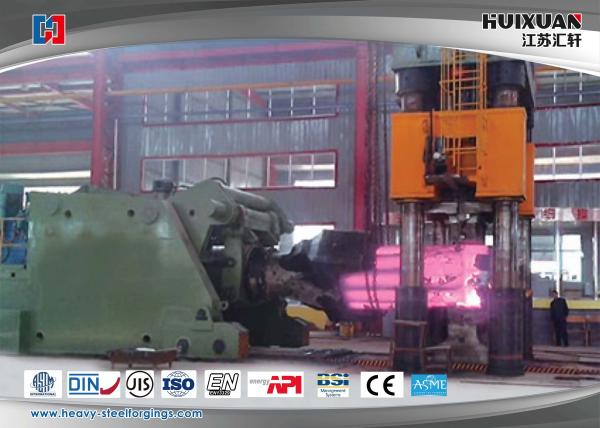

Forging equipment :
8000T open die hydropess
Description

Steel Forged Custom Roll Shaft 15000MM For Veneer Reeling Machine

Products:

roll shaft of veneer reeling machine,,up roll shaft,low roll shaft,up roll of veneer reeling machine,low roll of veneer reeling machine,supporting roll,marine roll shaft of veneer reeling machine

Products reference:

Material 50Mn,4140,60CrMo,9Cr2Mo,90Cr3
Forging equipment 8000T open die hydropess
Application

Supporting roll of veneer reeling machine to rotate up roll and low roll,thus to bend the sheet continuously
Melting process

EF+LF+VD
Production process

Forging+heat treatment+rough machining+QT
Forging ratio

≥3.5
Applicable standard ASTM,ASME,DIN,JIS,ISO,BS,API,EN
Executive standard JB/GB/EN/DIN/JIS/ASME/ASTM/ISO
Certification authority ISO9001:2008,BV,SGS, IST, UL,CTI
Delivery term

Rough machining(N+T);finsh machining(Q+T)

Test equipment

Spectrograph,UT device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine
Service Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.

Custom properties

Material elements C Si Mn P S Cr Ni Mo

Others
50Mn 0.48-0.56 0.17-0.37 0.70-1.00 ≤0.035 ≤0.035 ≤0.25 ≤0.30 ≤0.25
4140 0.38-0.43 0.15-0.35 0.60-0.90 ≤0.035 ≤0.040 0.80-1.10 -- 0.15-0.25 -
60CrMo 0.55-0.65 0.17-0.30 0.450-0.80 ≤0.020 ≤0.015 0.50-0.80 ≤0.25 0.20-0.40
9Cr2Mo 0.85-0.95 0.25-0.45 0.20-0.40 ≤0.025 ≤0.025 1.70-2.10 ≤0.25 0.20-0.40

Mechanical property

Dia.(mm)

TS/Rm(Mpa)

YS/Rp0.2(Mpa)

EL/A5(%)

RA/Z(%)

Type Of notch

Impact energy

HBW
50Mn Ø10 ≥645 ≥390 ≥13 ≥40 V ≥39 ≤255HBS
4140 Ø10 740~1000 450~850 ≥12 ≥25 V ≥40 ≤250HBS

Process procedure:

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment

Commerce clause

MOQ 1PC
Max length 15000MM
Delivery time 30-60days
Package Wood pallet,steel frame
Delivery term FOB;CIF;CFR；DDU；
Payment term T/T,LC
Type of shipping

By ocean,air

Keywords

Veneer reeling machine parts,up low supporting roll of three roll veneer reeling machine,hydraulic veneer reeling machine parts

High-precision dimensional tolerance;Excellent mechanical properties;Produce different dimension based on customer’s requirements;Advanced manufacture equipments and inspection devices;Excellent technical personality;Control the production procedure strictly;Pay attention on the package protection;

Quality full service.
