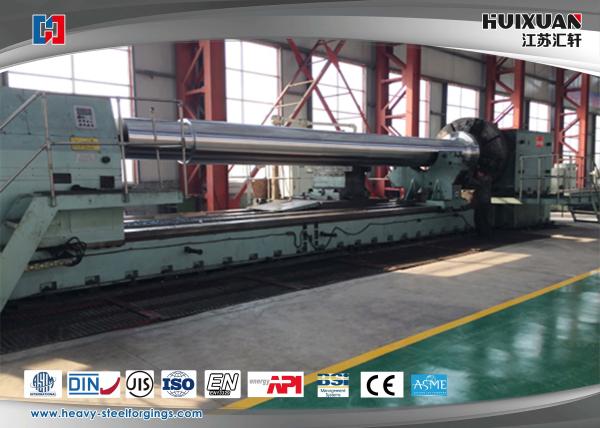

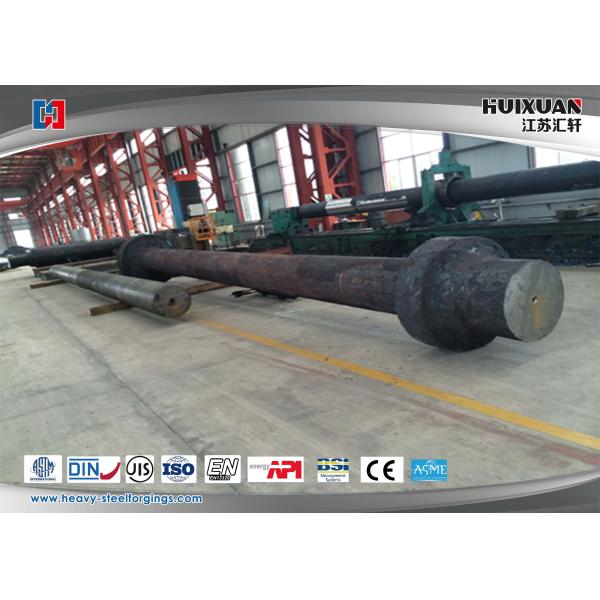

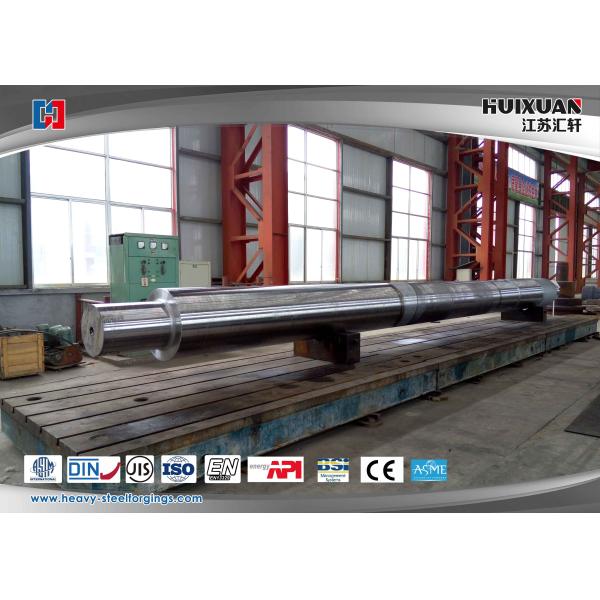

50Mn / DG20Mn / 25Cr2Ni4MoV Heavy Steel Forgings ASME Marine Shaft Forging
50Mn / DG20Mn / 25Cr2Ni4MoV Heavy Steel Forgings ASME Marine Shaft Forging
50Mn / DG20Mn / 25Cr2Ni4MoV Heavy Steel Forgings ASME Marine Shaft Forging
50Mn / DG20Mn / 25Cr2Ni4MoV Heavy Steel Forgings ASME Marine Shaft Forging
50Mn / DG20Mn / 25Cr2Ni4MoV Heavy Steel Forgings ASME Marine Shaft Forging
50Mn / DG20Mn / 25Cr2Ni4MoV Heavy Steel Forgings ASME Marine Shaft Forging
Specifications
Brand Name :
HUIXUAN
Model Number :
Marine Shaft
Certification :
ABS/ DNV/ BV/ GL/KR/ CCS/ LR/ NK/ RINA/ RS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000-4000 Ton/Month
Delivery Time :
30-60 days
Packaging Details :
Wood pallet, steel frame support
Max Weight :
40T
Color :
Original
Size :
As drawing
Material :
Steel
Application :
Machinery parts
OEM :
Yes
Description

50Mn / DG20Mn / 25Cr2Ni4MoV Heavy Steel Forgings ASME Marine Shaft Forging

​

Products:

Marine forging, ship shaft, screw shaft, rudder stock, bearing pintle, cardan shaft, intermediate shaft

Products reference:

Material

50Mn,DG20Mn,25Cr2Ni4MoV,34CrNiMo6

Max. weight

40T

Apply for

Ship, cargo, steamer engine fittings, dock port machinery parts.

Melting process

EF+LF+VD

Process technology

Forging+heat treatment+rough machining+finish machining

Forging ratio

≥3.5

Applicable standard

ASTM,ASME,DIN,JIS,ISO,BS,API,EN

Executive standard

JB/GB/EN/DIN/JIS/ASME/ASTM/ISO

Certification authority

ABS/ DNV/ BV/ GL/KR/ CCS/ LR/ NK/ RINA/ RS.

Delivery terms

Rough machining(N+T); finish machining(Q+T)

Test equipment

Spectrograph, UT device, tensile and impact test machine, metalloscope,external micrometer, bore dial indicator, hardness testing device and so on.

Service

Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.

Custom properties

Material elements

 C Si Mn P S Cr Ni Mo V
50Mn 0.48-0.56 0.17-0.37 0.70-1.00 ≤0.035 ≤0.035 ≤0.25 ≤0.30 -- -
DG20Mn 0.17-0.24 0.17-0.34 0.70-1.00 ≤0.035 ≤0.035 ≤0.25 ≤0.25 --
25Cr2Ni4MoV ≤0.25 ≤0.23 ≤0.53 ≤0.006 ≤0.004 ≥1.62 ≥3.75 ≥0.33 ≥0.09
34CrNiMo6 0.30-0.38 ≤0.040 0.50-0.80 ≤0.035 ≤0.035 1.30-1.70 1.30-1.70 0.15-0.30

Mechainal properties

Dia.(mm)

TS/Rm(Mpa)

YS/Rp0.2(Mpa)

EL/A5(%)

RA/Z(%)

Type Of notch

Impact energy

HBW
50Mn Ø25 ≥645 ≥390 ≥13 ≥40 V ≥31 ≤255HBS
DG20Mn Ø25 ≥450 ≥275 ≥24 ≥50
34CrNiMo6 Ø15 750-900 450-600 ≥13 ≥55 V -40℃≥20 ≤269HBS

Process procedure:

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment

Commerce clause

MOQ

1PC

Delivery time

30-60 days

Package

Wood pallet, steel frame support

Delivery terms

FOB;CIF;CFR；DDU；

Payment terms

T/T,LC

Type of shipping

By ocean, air

Keywords

Various of forging used for marine products, dock port machinery, marine engine crank shaft with the ten classification certificates.

Note:

  • Excellent mechanical properties;
  • Produce different dimension based on customer’s requirements;
  • Advanced manufacture equipments and inspection devices;
  • Excellent technical personality;
