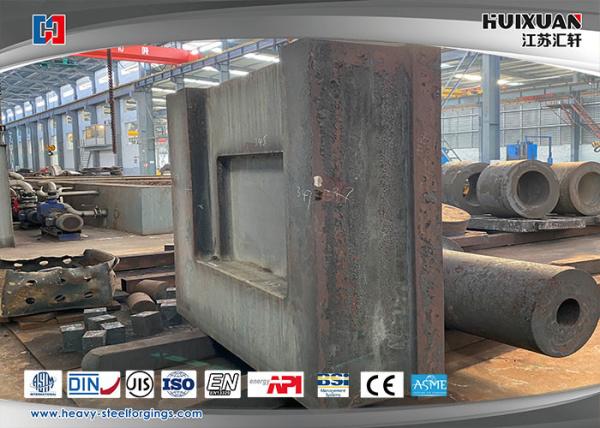

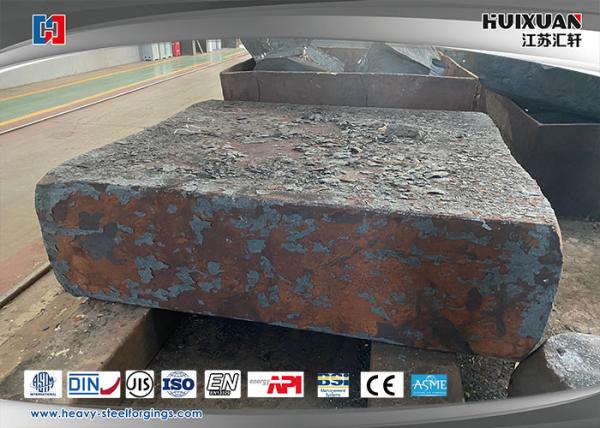

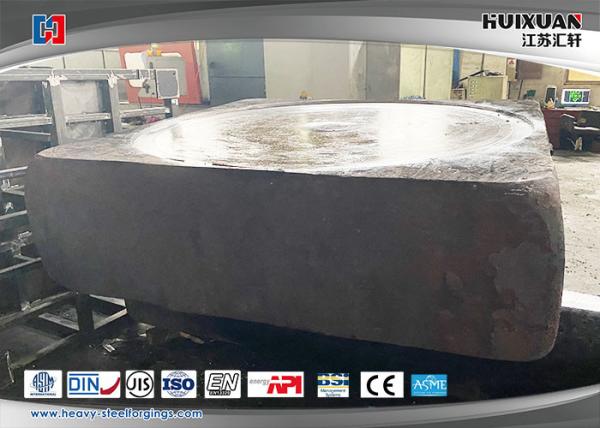

56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds
56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds
56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds
56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds
56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds
56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds
56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds
56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds
Specifications
Brand Name :
HUIXUAN
Model Number :
Forging Module
Certification :
ASTM, ASME, DIN, JIS, ISO, BS, API, EN
Place of Origin :
Jiangsu
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000-5000T/Month
Delivery Time :
30-60 days
Packaging Details :
Wood pallet, steel frame support
Max. thickness :
1000MM
Forging ratio :
≥4
Heat treatment :
N+T Q+T
Material :
Steel
Delivery time :
30-60 days
Color :
Original
Description

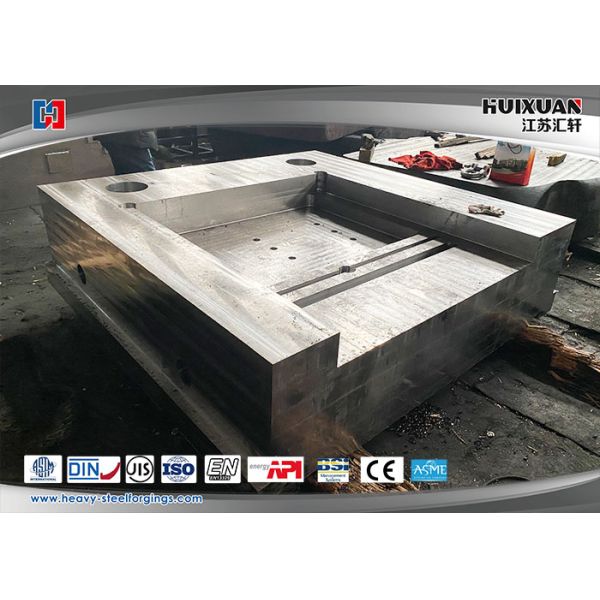

56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds

1.Products:

forging mold, module, forging module, metal mold, hardware mould, die block steel, cylinder mold, swage mold, hot-work die steel

2.Products reference:

Material

56NiCrMoV7,50CrMnMo,4140

Forging equipment

10000T open die hydropress

Apply for

It is use for industrial maufacture of molds and tooling production by means of injection molding, blow molding, extrusion, die casting or forging to molding, smelt, punching press and so on methods.

Melting process

EF+LF+VD

Process technology

Forging+heat treatment+rough machining+finish machining

Forging ratio

≥4

Applicable standard

ASTM, ASME, DIN, JIS, ISO, BS, API, EN

Executive standard

JB/GB/EN/DIN/JIS/ASME/ASTM/ISO

Certification authority

ISO9001:2008,BV,SGS, IST, UL,CTI

Delivery terms

Rough machining(N+T); finish machining(Q+T)

Test equipment

Spectrograph, UT device, tensile and compact test machine, metalloscope,external micrometer, bore dial indicator, hardness testing device and so on.

Service

Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.

3, Custom properties

Materical elements C Si Mn P S Cr Ni Mo V other
56NiCrMoV7 0.5-0-0.60 0.10-0.40 0.65-0.95 ≤0.030 ≤0.030 1.00-1.20 1.50-1.80 0.45-0.55 0.07-1.20 -

Mechainal properties

Dia.(mm)

TS/Rm(Mpa)

YS/Rp0.2(Mpa)

EL/A5(%)

RA/Z(%)

Type Of notch

Impact energy

HBW
56NiCrMoV7 Ø10 ≥1000 ≥850 ≥11 ≥30 V ≥25 314-360HBS

4, Process procedure:

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment

5, Commerce clause

MOQ 1PC

Max. thickness

1000MM

Delivery time

30-60 days

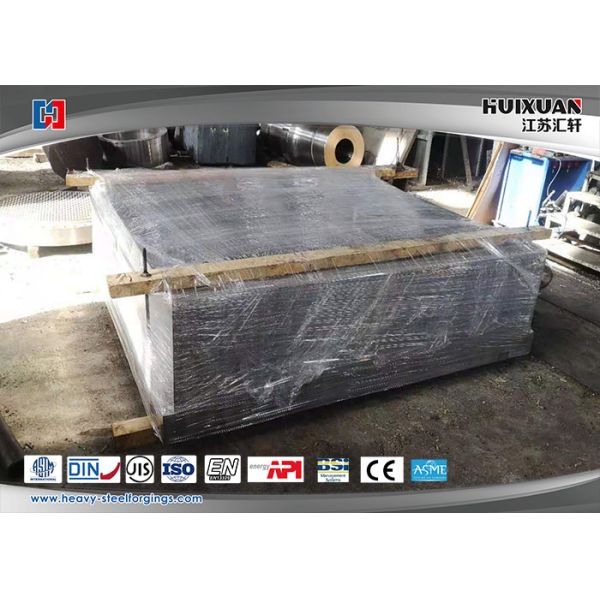

Package

Wood pallet, steel frame support

Delivery terms

FOB;CIF;CFR；DDU；

Payment terms

T/T,LC

Type of shipping

By ocean, air

6, Keywords

Mold and module is wildly used in the field of blanking, die forging, cold upsetting, extrusion, powder metallurgy suppress, die casting and compression molding or injection molding forming of engineering plastics, rubber, ceramics and so on.

56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds

Note:

High-precision dimensional tolerance;Excellent mechanical properties;Produce different dimension based on customer’s requirements;Advanced manufacture equipments and inspection devices;Excellent technical personality;Control the production procedure strictly;Pay attention on the package protection;

Quality full service

56NiCrMoV7 Alloy Heavy Steel Forgings Heat Treatment Forging Molds
