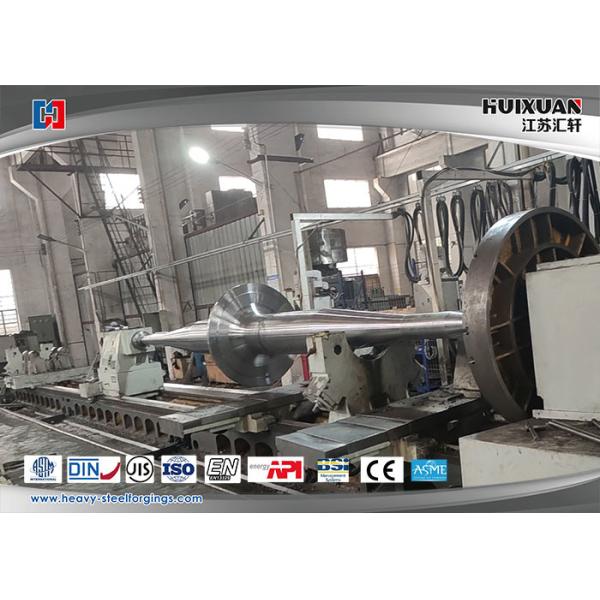

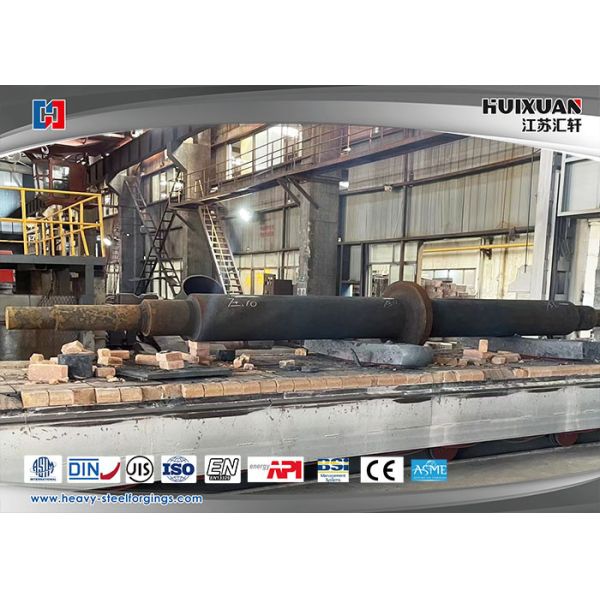

42CrMo Blower Shaft Heat Treatment Stainless Steel Forging Transmission Coupling Shaft
42CrMo Blower Shaft Heat Treatment Stainless Steel Forging Transmission Coupling Shaft
42CrMo Blower Shaft Heat Treatment Stainless Steel Forging Transmission Coupling Shaft
42CrMo Blower Shaft Heat Treatment Stainless Steel Forging Transmission Coupling Shaft
42CrMo Blower Shaft Heat Treatment Stainless Steel Forging Transmission Coupling Shaft
42CrMo Blower Shaft Heat Treatment Stainless Steel Forging Transmission Coupling Shaft
42CrMo Blower Shaft Heat Treatment Stainless Steel Forging Transmission Coupling Shaft
42CrMo Blower Shaft Heat Treatment Stainless Steel Forging Transmission Coupling Shaft
Specifications
Brand Name :
HUIXUAN
Model Number :
9000MM
Certification :
ASTM，ASME，DIN，JIS，ISO，BS，API，EN
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000-5000Ton/month
Delivery Time :
30-50 days
Packaging Details :
Wooden pallet,Steel frame
Application :
Industry
Material :
Steel
Forging ratio :
≥3.5
Max weight :
45t
Molding Style :
Forging
Size :
As per drawing
Heating treatment :
N+T Q+T
Standard :
GB/EN/DIN/JIS/ASME/ASTM/ISO
Description

42CrMo 45 Blower shaft Heat Treatment stainless Steel Forging

Products:

Used for centrifugal, axial and mixed-flow

42CrMo steel belongs to ultra-high strength steel, which has high strength and toughness, good hardenability, no obvious tempering brittleness, high fatigue limit and multiple impact resistance ability after tempering and tempering treatment, and good impact toughness at low temperature.42CrMo steel is suitable for large and medium sized plastic molds which require certain strength and toughness.

Products reference:

Material 42CrMo
Melting process EF+LF+VD
Production process

Forging+heat treatment+rough machining+QT
Forging ratio

≥3.5
Applicable standard ASTM,ASME,DIN,JIS,ISO,BS,API,EN
Executive standard JB/GB/EN/DIN/JIS/ASME/ASTM/ISO
Authority certification ISO,BV,SGS, IST, UL,CTI
Inspection

Plant self inspection or third party inspection,shipment after all inpection items qualified
Delivery term

Rough machining(N+T);finish machining(Q+T)

Test equipment

 Spectrograph,ut device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine
Service Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.

Custom properties

Chemical elements
Heat No C% Si% Mn% S% Cr % Mo % P% H%
42CrMo 0.38-0.43 0.10-0.35 0.75-1.00 0.008-0.016 0.80-1.10 0.15-0.25 P≤0.015 H≤2.5
Mechanical Properties Tests
Nr./No Test Temp Yield Strength/Rp
0.2 N/mm²		 Tensile Strength/Rm N/mm² Elongation(
Tr)/A%		 Reduction of Area/Ψ% Charpy Impact(20℃)
/Joule		 Hardness
/HB
42CrMo 20℃ 1001 1076 16 60.9 106.110.110 318-326

42CrMo Blower Shaft Heat Treatment Stainless Steel Forging Transmission Coupling Shaft42CrMo Blower Shaft Heat Treatment Stainless Steel Forging Transmission Coupling Shaft
Process
Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment


Attention

  1. To control the forging temperature, do not coarse grain;
  2. To control the tempering process, to ensure that the core of the tempering and tempering
  3. The surface of the medium frequency hardening hardening layer depth control;
  4. Avoid surface micro-cracks.

Advantage

  1. High-precision dimensional tolerance;
  2. Excellent mechanical properties;
  3. Produce different dimension based on customer’s requirements;
  4. Advanced manufacture equipments and inspection devices;
  5. Excellent technical personality;
  6. Control the production procedure strictly;
  7. Pay attention on the package protection;
  8. Quality full service.
