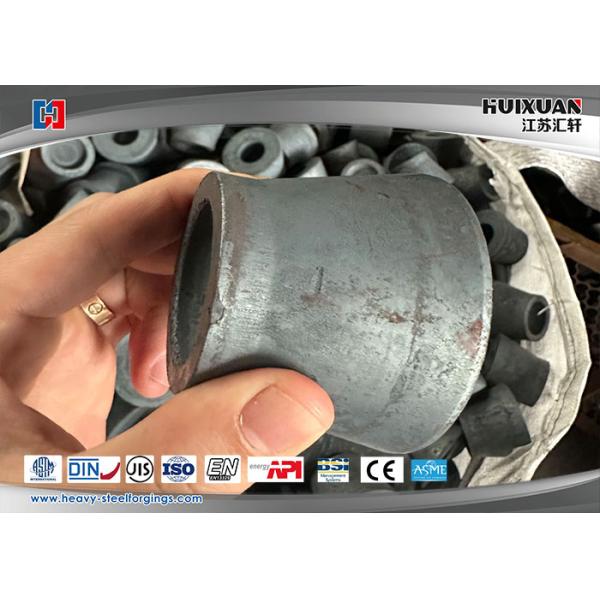

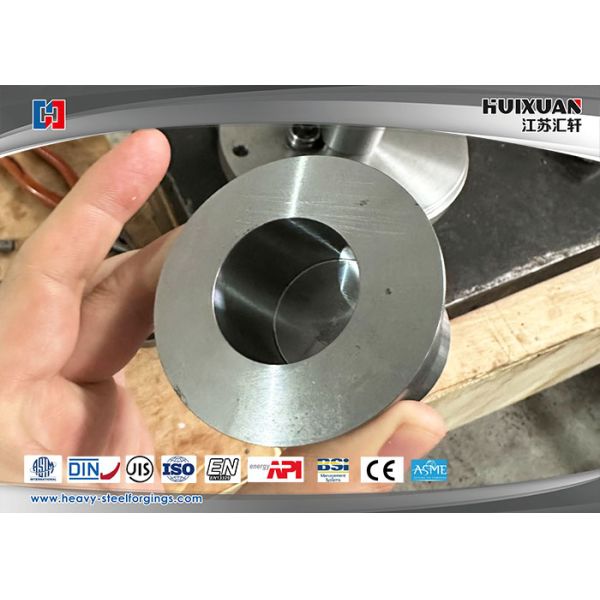

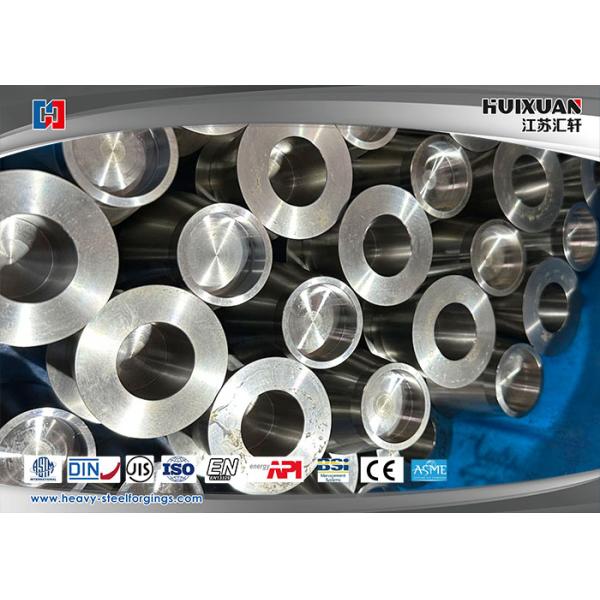

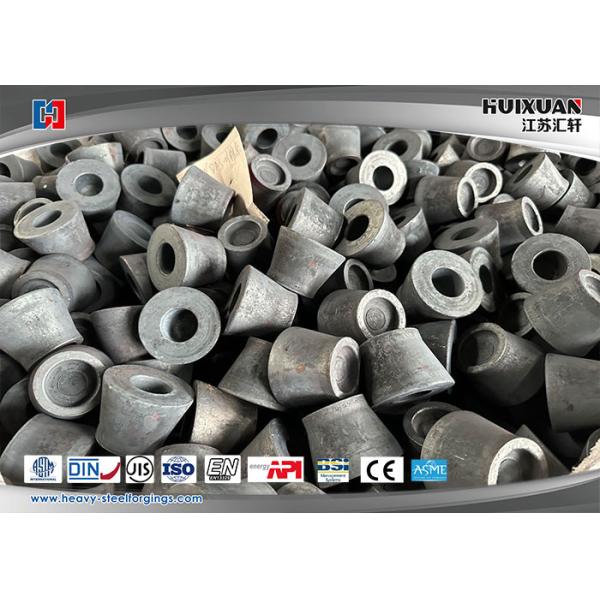

41Cr4 Auto Mobile Die Fogings Parts Custom Diameter
41Cr4 Auto Mobile Die Fogings Parts Custom Diameter
41Cr4 Auto Mobile Die Fogings Parts Custom Diameter
41Cr4 Auto Mobile Die Fogings Parts Custom Diameter
41Cr4 Auto Mobile Die Fogings Parts Custom Diameter
41Cr4 Auto Mobile Die Fogings Parts Custom Diameter
41Cr4 Auto Mobile Die Fogings Parts Custom Diameter
41Cr4 Auto Mobile Die Fogings Parts Custom Diameter
Specifications
Brand Name :
HUIXUAN
Model Number :
HX200
Certification :
ISO
Place of Origin :
China
MOQ :
200
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000ton/month
Delivery Time :
20 days
Packaging Details :
film and frame
Colour :
Metal
Application :
automobile
Description

classification of automobile die forgings:

1, according to the type of automobile forgings to classify:

a. Round cake: such as gear and wheel hub

b.Rod type: such as connecting rod, steering hammer arm

c.Crank class: such as crankshaft, camshaft

d. Axis class: such as the front axis

e. Fork class: such as knuckle, flange fork

Classification by process use:

Our factory is mainly forging press production of automobile forgings, so according to the characteristics of our production process is mainly divided into:

a.Roller forging die: general rod parts have this die, such as connecting rod

The upsetting die: This kind of die is mostly round cake parts

b. Pre-forging die: basically all forgings have this step, so the die always exists;

c.Final forging die: each part must have this die, this is the final forming die;

d. Cutting and punching die: in addition to closed forging, all forgings should be edging, individual forgings need punching;

e. Correction mold: This mold is basically every forging will be used, because there is deformation after heat treatment of forging

41Cr4 Auto Mobile Die Fogings Parts Custom Diameter41Cr4 Auto Mobile Die Fogings Parts Custom Diameter41Cr4 Auto Mobile Die Fogings Parts Custom Diameter41Cr4 Auto Mobile Die Fogings Parts Custom Diameter

Special design automobile die forging
Production Process for Forged parts
Forging, press, machining ,heat treatment , assembly
Blanks Tolerance:
+/-0.3~+/-2 mm
Production Applicable Material:
40Cr,41Cr4
Forging Blank Size /Dimensions:
142 mm- 300mm or according to customer requirement
Blanks Weight:
Range from 0.1kg-1000kg
Applicable Machining Process:
CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming etc.
Machining Tolerance:
From 0.005mm-0.01mm-0.1mm
Machined Surface Quality:
Ra 0.8-Ra3.2 according to customer requirement
Applicable Heat Treatment:
Normalization , quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface Treatment:
Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate,
Dacromat coating, Finish Painting,
MOQ of mass production:
For forging parts: 1 Ton
For Machining: 200Pcs
Lead Time:
30-40 days from the receipt date of payment
