HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts
HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts
HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts
HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts
HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts
HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts
HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts
HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts
Specifications
Brand Name :
ZJHK
Model Number :
HA-016-M / HA-016-F
Certification :
CE, RoHS, SGS, CQC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100,000 pcs per month
Delivery Time :
5 Days
Packaging Details :
Standard Export Cartons
Order Number :
09200162612 & 09200162812
Model Type: :
Slim Connector HA series
Material :
Polycarbonate Sabic 3412 ECR
Wire Connection :
Screw
OEM :
Provided
No of Contact :
16
Description

HA-016 Waterproof Deutsch Electrical Connectors of the Slim Inserts

Description

We are supplying a full range of Heavy duty connector.

1. Pre-installation of large numbers and complex circuits can greatly increase the efficiency of equipment installation and reduce the wiring mistakes.
2. Heavy-duty connectors provide highly integrated connections, and a rich combination type, which maximizes the effective utilization of machine space.
3. The heavy-duty connector makes it convenient and safe for the equipment to be transported, installed and maintained. Connectors are widely used in power transmission and distribution.
4. The high degree of protection provided by heavy-duty connectors (IP65, IP68) offer a great advantage of equipment connection systems in harsh environments. It provides effective protection in harsh environments such as dust, rain, cold, ice, and oil.

Specification - Inserts

Numbers of contacts

 16+PE

Electrical performance according to

 EN61984
Rated current 16A
Rated voltage 250V
Rated impulse voltage 4KV
Pollution degree 3
or 16A 4KV 2
Rated voltage according to UL 600V
Insulation resistance ≥1010Ω
Material Polycarbonate
Flammability according to (UL94) V0
Working temperature -40℃±125℃
Mechanical working life - mating cycles ≥500
Contacts:
Material Copper alloy
Surface Silver Plated, Gold Plated
Contact resistance ≤1mΩ
Screw terminal
Wire gauge 1.0-2.5mm2
AWG 18-14
Tightening 0.5Nm
Crimp terminal
Wire gauge 0.14-4.0mm2
AWG 26-12
Cage clamp terminal
Wire gauge 0.14-2.5mm2
AWG 26-14

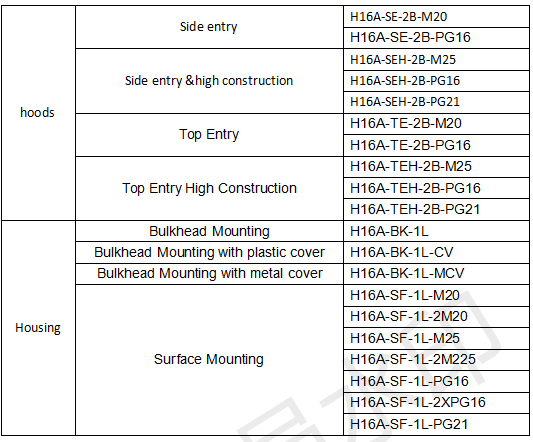

Specification - Housing H16A Series

HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts

HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts

Application:

HA-016 Rectangular Heavy Duty Connector Of 16 Pin The Slim Inserts
