70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector
70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector
70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector
70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector
70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector
70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector
Specifications
Brand Name :
ZJHK
Model Number :
HMK-002
Certification :
CE, SGS, CQC, RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100,000 pcs per month
Delivery Time :
5 Days
Packaging Details :
Standard Export Cartons
Order Number :
09140023002/09140023102
Model Type: :
rectangular
Material :
Polycarbonate
Wire Connection :
AWG 16 - AWG8 (1.5mm² – 10mm² )
Housing :
6B,10B,16B,24B
OEM :
approve
Nos of Contact :
2
Size :
6B,10B,16B,24B
Description

70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector Replace Han 09140023002

70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector

70A Crimp Module Combined inserts

ZJHK HMK-002

Crimp module insert

Order number:09140023002(Male)& 09140023102(Female)

SPECIFICATION

Manufacturer

ZJHK

Type of connector

rectangular

Connector

Module

Kind of connector

Male and Female

Connector series

HM 40A Flexible and Combined Connector Crimp Terminal Insert

Descriptions

Flexible Combination Heavy Duty Power Connector Insert,

2 Poles , 1000V, 40A, Crimp Terminal.

(Order Crimp Contacts Separately)

Connector variant

w/o contacts

Electrical mounting

crimped

Power Contact Rated Current

40A

Power Contact Rated Voltage Acc. to EN61 984

1kV

Mating Cycle (Mechanical Working Life)

>= 500

Size

Used with Hinged Frame

Working Temperature Range

-40⁰C … +125⁰C

Rated Impulse Voltage

8KV

Contact Resistance

<= 0.3mΩ

Insulation Resistance

>=10^10Ω

Pollution Degree

 Ⅲ

Wire Gauge

AWG 16 - AWG8 (1.5mm² – 10mm² )

Tool

TL02-0G/TL02-3G Crimping Tool, TL06G Contact Removal Tool

Material of Inserts

Polycarbonate

Contacts

Hard-Silver Plated Copper Alloy

Picture view

70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector

The ZJHK-Modular® System can be put together as per each requirement from various basis modules. It can be used practically as proven standard contacts and housing

Highlights & Details

  • Manufacturer type description: ZJHK® HM module
  • Your order canbe ship with in 10 days after payment.
  • The order usually only 7-10 days from door to door

Comments

Suitable crimp contacts must be ordered separately!

Complete product composition

70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector

Related Products

CCSM&CCSF

Available Options

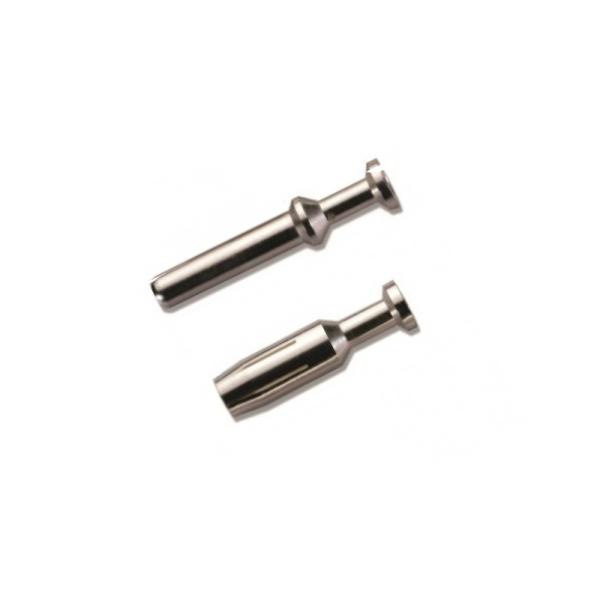

40A Crimp Contact Wire Gauge

Copper Alloy with Silver Plated Finish

1.5mm - AWG16- ø1.75

2.5mm - AWG14- ø2.25

4mm - AWG12- ø2.85

6mm - AWG10- ø3.5

10mm - AWG8- ø4.3

Module installation and disassembly diagram

70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector

Heavy duty connector makes an effective electrical and mechnical connection for various industrial application. Compared to traditional industrial connectors, the heavy duty connectors provide a IP65 protection against harsh environment and save 30~50% labour cost in installation and mantaince.

Therefore, it is widely used in mechinery, electrical control, railway transportation, automation, robotics, wind energy and engery distribution.

70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector

FAQ:

1.Q:Are you manufactory or trade company?
A:We are the manufactory in Wenzhou,Zhejiang Province,China.


2.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.OEM is welcomed.Your Logo can be puted on our products.And we can make package according to your design.

3.Q:What is usual payment term for orders?
A:We accept terms of T/T in advance,Western Union.It can be cccording to buyer requirement

4. Warranty Time.
A:12 month. Any problem of the quality is changed by your next order free.

5.Free Sample.
A:we provide small products to check quality for you, just you pay the express fees.

70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector
