HM Module Combined 6B 10B 16B 24B Frame

Product Details

ZJHK Modular Frames

Grounding system according to VDE

Die cast zinc construction

Hinged frame (except item type 1 – one piece)

A-B, a-b, A-C, a-c, A-D, a-d, A-F, and a-f orientation available depending on 2, 3, 4, or 6 insert ’module’ requirement

Mating cycles ≥500

For use in standard hoods and housings,also,ZJHK Hinged frame can match with Harting,ILME,TE.

Quick Details

1. Standard: DIN EN 61984

2. Flammability: UL94 V0

3. Protection Degree : IP65

4. Plugging Cycle: ≥500

5. Salt Spray Test: 72 hours

6. Working Temperature: -40℃±125℃

ZJHK HM® Modular

The modular system (ZJHK - HM) enables signal, power, pneumatic, coax and ethernet connections in one connector in individual customized arrangement.

These in turn may be fitted to standard ZJHK® housings. The system allows a variety of insert configurations within the one connector assembly. The ZJHK-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection.

ZJHK offers appropriate crimping tools for different levels of automation for all connectors.

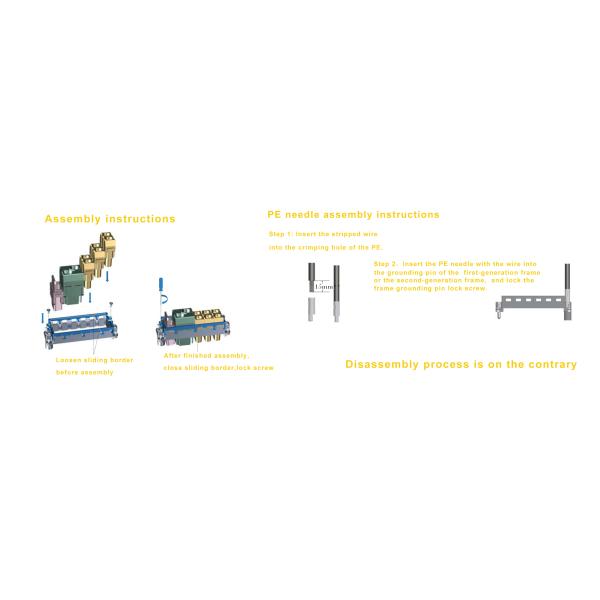

Module installation and disassembly diagram

Heavy duty connector makes an effective electrical and mechnical connection for various industrial application. Compared to traditional industrial connectors, the heavy duty connectors provide a IP65 protection against harsh environment and save 30~50% labour cost in installation and mantaince.

Therefore, it is widely used in mechinery, electrical control, railway transportation, automation, robotics, wind energy and engery distribution.
