H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated
H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated
H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated
H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated
H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated
H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated
Specifications
Brand Name :
ZJHK
Model Number :
HE-006-FC
Certification :
CE, RoHS, SGS, CQC,
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100,000 pcs per month
Delivery Time :
7 Days
Packaging Details :
Standard Export Cartons
Order Number :
09330062702
Model Type: :
Standard Connector HE Series
Material :
Polycarbonate Sabic 3412 ECR
Wire Connection :
Crimp
Housing :
H6B Series
Nos of Contact :
6
Description

Replace

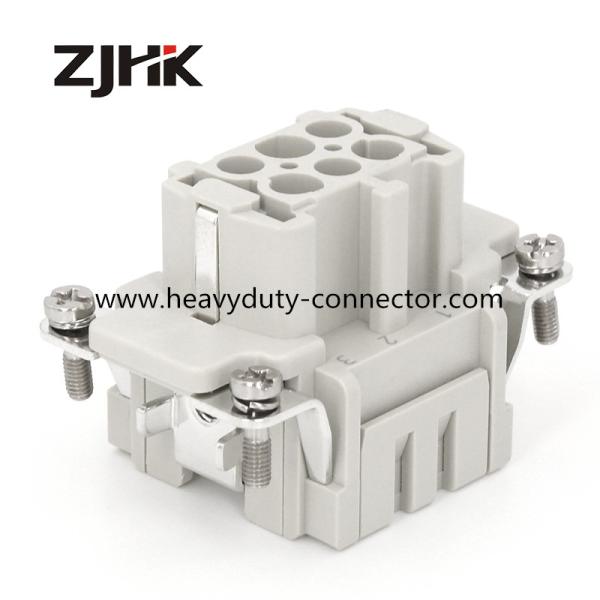

Han 6E Insert Female Crimp Match Harting Male part.

Inserts, Crimp termination, Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.14 ... 4mm²

Part number: 09 33 006 2702

Support Industrial 4.0 solution

Technical data

Identification
Category Inserts
Series HE
Version
Termination method Crimp termination
Gender Female
Size 6 B
Number of contacts 6PIN
PE contact Yes
Technical characteristics
Conductor cross-section

0.14 ... 4 mm²

Please order crimp contacts separately.
Conductor cross-section AWG 26 ... AWG 12
Rated current 16 A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Rated voltage acc. to CSA 600 V
Insulation resistance > 1010 Ω
Limiting temperature -40 ... +125 °C
Mating cycles ≥ 500
Material (insert) Polycarbonate
Colour (insert) RAL 7032 (pebble grey)
Material flammability class acc. to UL 94 V-0
RoHS compliant

Design drawing:

H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated

H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated

Notice:

Please order crimp contacts separately.

H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated



H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated


H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated

Our Services

1. We are professional supplier,so we provide Low MOQ: It can meet your business very well.
2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends.
3. Inspections:100% test before delivery.Package will do after several discussions with you.
4. Free samples for your test,The products are directly from our factory. So it saves a lot secondary cost.
5. Fast door to door delivery service ,Trail order and small order are acceptable
Any questions please feel free to contact us, 7*24 hours for you !!!
