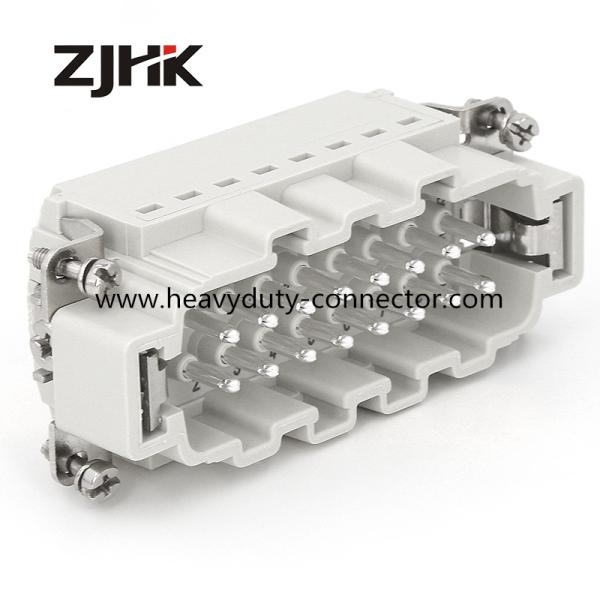

Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug
Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug
Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug
Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug
Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug
Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug
Specifications
Brand Name :
ZJHK
Model Number :
HE-016-FZ
Certification :
CE, RoHS, SGS, CQC,
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100,000 pcs per month
Delivery Time :
7 Days
Packaging Details :
Standard Export Cartons
Order Number :
093300162901
Model Type: :
Standard Connector HE Series
Material :
Polycarbonate Sabic 3412 ECR
Wire Connection :
Quick Lock
Housing :
H16B Series
Nos of Contact :
16
Description

New connection way


Inserts, Quck Lock termination, male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Contacts: 10, Conductor cross-section: 0.14 ... 2.5mm², Copper alloy,
Silver plated

Auto Industrial 4.0 solution
Fast contact way ,just need a screw to do this,fast work.




Technical data

Type
Termination methodQuck Lock insert
GenderFemale
Size16B size
With wire protectionYes
Number of contacts16
Technical characteristics
Conductor cross-section 0.14 ... 2.5 mm²
Conductor cross-section AWG 26 ... AWG 14
Rated current 16A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Rated voltage acc. to CSA 600 V
Insulation resistance > 1010 Ω
Contact resistance ≤ 1 mΩ
Limiting temperature -40 ... +125 °C
Stripping length 7 ... 9 mm
Tightening torque 0.5 Nm
Mating cycles ≥ 500
Material properties
Material (insert) Polycarbonate
Colour (insert) RAL 7032 (pebble grey)
Material (contacts) Copper alloy
Surface (contacts) Silver plated 3 thickness
RoHS compliant with exemption
Commercial data
Packaging size 1
Country of origin China
Chinese customs tariff number

8536901900


Deatils photo:

Female part

Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug
Male part
Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug



Our Services

1. We are professional supplier,so we provide Low MOQ: It can meet your business very well.
2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends.
3. Free samples for your test,The products are directly from our factory. So it saves a lot secondary cost.
4. OEM and ODM are acceptable,Please send us your design and other important information. OEM are always welcome.
