HMK 003 Heavy Duty Electrical Connector 10A Signal Contact
HMK 003 Heavy Duty Electrical Connector 10A Signal Contact
HMK 003 Heavy Duty Electrical Connector 10A Signal Contact
HMK 003 Heavy Duty Electrical Connector 10A Signal Contact
Specifications
Brand Name :
ZJHK
Model Number :
HMK-003/4-MC / HMK-003/4-FC
Certification :
CE, SGS, CQC, RoHS
Place of Origin :
China
MOQ :
1
Price :
negotible
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100,000 pcs per month
Delivery Time :
5 Days
Packaging Details :
Standard Export Cartons
Order Number :
09140073001 & 09140073101
Model Type: :
Modular Connector HM series
Material :
Polycarbonate Sabic 3412 ECR
Contact Type :
Crimp
Current :
40A / 10 A
Voltage :
830V
OEM :
Provided
No of Contact :
4+3
Description

HMK 003 4 830V Crimp Module Combined inserts

Inserts

Technical Characteristics

Type Inserts
Number of contacts 3(Power) + 4(Signal) + PE
Power contacts
Rated current 40A
Rated voltage 830V
Rated Impulse voltage 8KV
Signal contacts
Rated current 10A
Rated voltage 830V
Rated Impulse voltage 8KV
Pollution degree 3
Rated Voltage Acc.to ul 600V
MecHKnical Working Life-mating Cycles >=500
Contacts
Material Copper Alloy
Surface Hard-silver Plated ( 40A )
Hard-silver Plated ( 40A ) ,Hard-silver Plated( 10A )
Contact Resistance
Power contacts =< 0.3mΩ
Power contacts 1.5-6mm²
Power contacts 16-10 AWG
Signal contacts =< 3mΩ
Signal contacts 0.14-2.5 mm²
Signal contacts 26-14 AWG
Max.insulation diameter of power contacts 5mm
Tool TL02-0G Crimping Tool, TL06G Contact Removal Tool

Picture View

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

Drawing

Male inserts

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

Female inserts

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

Related Products

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

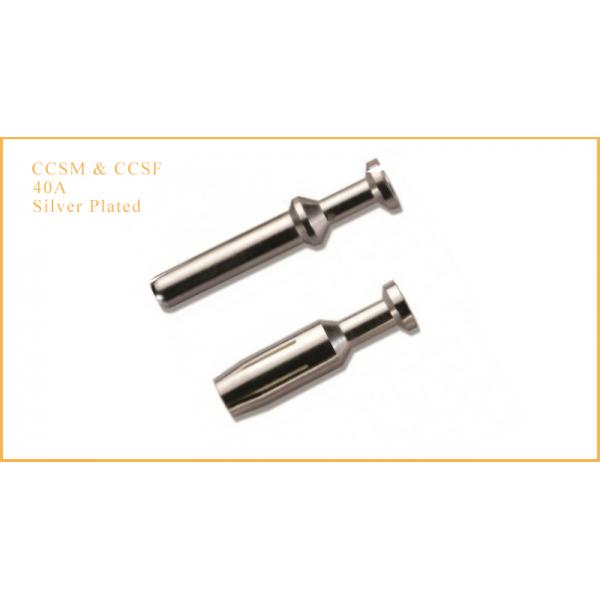

40A CRIMP CONTACTS,POWER CONTACTS

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

FAQ:

1.

Q:Are you manufactory or trade company?


A:We are the manufactory in Wenzhou,Zhejiang Province,China.

2.

Q:If we are interested in your heavy duty connector,can we visit your factory ?

A:Yes. We are normally welcome you visit us and we can learn more from each other.

3.

Q:Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.

A:Of curse we can match harting perfectly.

4.

Q:what’s your advantage compare with Harting,ILME,TE(SIBAS)?

A:Our HDC can replace Harting,ILME,TE(SIBAS)perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.
