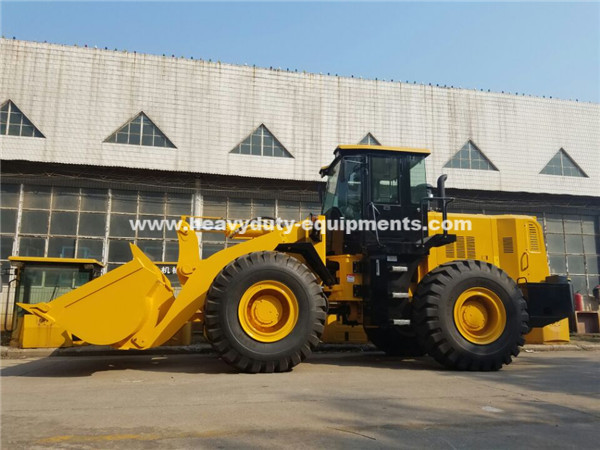

5 Tons Loading Capacity 3m3 Buket Wheel Loader 958 Model with Weichai Engine WD10G220E22
5 Tons Loading Capacity 3m3 Buket Wheel Loader 958 Model with Weichai Engine WD10G220E22
5 Tons Loading Capacity 3m3 Buket Wheel Loader 958 Model with Weichai Engine WD10G220E22
5 Tons Loading Capacity 3m3 Buket Wheel Loader 958 Model with Weichai Engine WD10G220E22
Specifications
Brand Name :
SINOMTP
Model Number :
958
Certification :
CO
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Supply Ability :
300 UNITS PER MONTH
Delivery Time :
35 WORKING DAYS
Packaging Details :
NUDE OR CONTAINER
Engine :
Weichai SteyrWD10G220E22
Engine power :
162kw
Transmission :
YJ375 Power shift normally engaged straight gear
Total time :
9.5s
Loading capacity :
5000kg
Operating weight :
16800kg
Description

5tons Loading Capacity 3m3 Buket Wheel Loader 958 Model with Weichai Engine

Performance 1 rated load 5000kg
2 overall weight 16800kg
3 rated bucket capacity 3m3
4 maximum tractive force 152KN
5 maximum breakout force ≥170KN
6 maximum grade ability 30℃
7 maximum dump height 3150mm
8 maximum dump reach 1250mm
9 overall dimension (L×W×H) 7920×3050×3400mm
10 minimum turning radius 6640mm
Engine 11 model Weichai SteyrWD10G220E22
12 type lnline water cooling dry cylinder injection
13 No. of cylinder-bore/stroke 6－126×130mm
14 rated power 162kw--2000r/min
15 maximum torque 860N.m
16 min fuel-consume ratio ≤215g/kw.h
Transmission system 17 torque converter YJ375
18 gearbox mode Power shift normally engaged straight gear
19 gear shift 4 forward shift 4reverse shift
20 maximum speed 38km/h
Drive axles 21

main reducing spiral

 bevel gear grade 1reduction
22 decelerating mode planetary reduction,grade 1
23 wheel base (mm) 3200mm
24 wheel tread 2250mm
25 minimum ground clearance 450mm
Hydraulic system 26 system working pressure 18MPa
27 boom lifting time 5.95±0.2s
28 total time 10.95±0.5s
29 fuel tank capacity 300L
30 function of leveling automatically yes

Brake system

 31 service brake air over hydraulic disc brake on 4 wheels
32 parking brake manual parking brake
Tyre 33 type specification 23.5-25
34 front tyre pressure 0.4Mpa
35 rear tyre pressure 0.35Mpa

5 Tons Loading Capacity 3m3 Buket Wheel Loader 958 Model with Weichai Engine WD10G220E22
