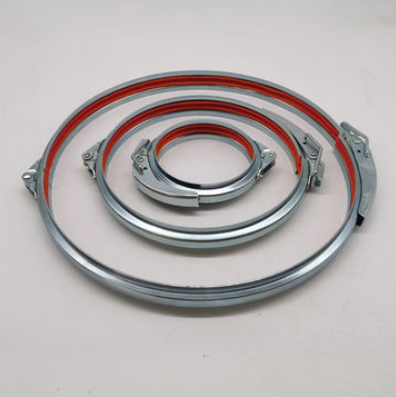

3.15 Inch Quick Release Pipe Clamp Stainless Steel Galvanized Steel
3.15 Inch Quick Release Pipe Clamp Stainless Steel Galvanized Steel
Specifications
Brand Name :
WD
Model Number :
80-600mm
Certification :
ISO 90001
Place of Origin :
Hebei of China
MOQ :
50 pcs
Price :
USD/1.25-1.20/Pcs
Payment Terms :
T/T, L/C
Supply Ability :
10000/Pcs/Month
Delivery Time :
25 Days
Packaging Details :
Wooden Case/Pallet,
Item name :
Air Duct Quick Release V Band Lock Pipe Clamp
Size of clamp :
80-600mm
Clamp usage :
used for dust extraction system
Standard or nonstandard :
Standard
Samples :
acceptable
Color :
Silver
Description

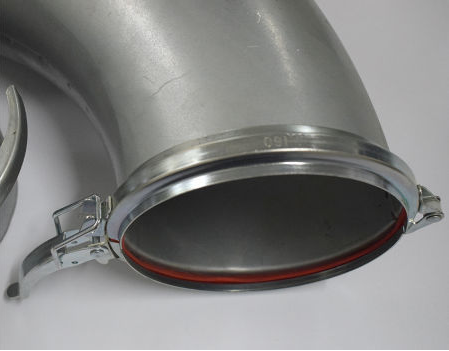

Stainless Steel Galvanized Steel Air Duct Quick Release V Band Lock Pipe Clamp

Introduction of Quick release v band lock pipe clamp:

The duct clamp is a component that uses one kind of pipe special material to hold or hoop another kind of pipe material. It belongs to hardware fasteners. There are two types of clamps, one is the ductwork pipe clamps,and the other is the ventilation pipe clamps

Diameter:80-600mm
Material: stainless steel 304, Carbon Steel
Thickness: 0.8-1.0mm

Feature of quick release pipe clamp:

1.Quick fit & easy disassemble
2.Diameters range from 75 mm upward to 630mm
3.Galvanized or Stainless Steel
4.Suit for hose, rigid ducting, flange, and pipe

Application of duct clamps:


- Joinery wood waste extraction systems and the conveying of powders
- Waste products
- Particle & fume extraction

Specification of Quick Release Pipe Clamps

3.15 Inch Quick Release Pipe Clamp Stainless Steel Galvanized Steel

DIAMETER

(MM)

 PRODUCT CODE

A

(MM)

H

(MM)

THICKNESS

(MM)
80 BMG80 28 8 1
100 BMG100 28 8 1
120 BMG120 28 8 1
125 BMG125 28 8 1
140 BMG140 28 8 1
150 BMG150 28 8 1
160 BMG160 28 8 1
180 BMG160 28 8 1
200 BMG200 28 8 1
225 BMG225 28 8 1
250 BMG225 28 8 1
275 BMG275 28 8 1
300 BMG300 28 8 1
315 BMG315 28 8 1.2
330 BMG330 28 8 1.2
350 BMG350 28 8 1.2
400 BMG400 28 8 1.2
450 BMG450 28 8 1.2
500 BMG500 28 8 1.2
550 BMG550 28 8 1.2
600 BMG600 28 8 1.2

3.15 Inch Quick Release Pipe Clamp Stainless Steel Galvanized Steel

3.15 Inch Quick Release Pipe Clamp Stainless Steel Galvanized Steel

Package of duct clamps:

3.15 Inch Quick Release Pipe Clamp Stainless Steel Galvanized Steel

About our company:
We are the leading manufacturer and develop a series of round duct & fittings for industy dust collection system of ship and buiding . At the same time, we also supply modular ducting for ventilation system.

Products for Dust collection system including: pressed bend, pneumatic sliding damper, manual sliding damper ,duct clamps, wide/slim pull rings and so on

Products for Ventilation system products including: half elbow, duct reducer, pressed collar saddle, Tee piece and so on.

Our advantage: factory price, fast delivery and good service.


3.15 Inch Quick Release Pipe Clamp Stainless Steel Galvanized Steel

For more information, please contact me.

Email: info@ypmachinery.com

Contact person: Cathy

Whatsapp:0086-15028109230
