1.5 Inch Auto Car Accessories Exhaust V Band Clamp Male Female Flange Without Washer
1.5 Inch Auto Car Accessories Exhaust V Band Clamp Male Female Flange Without Washer
1.5 Inch Auto Car Accessories Exhaust V Band Clamp Male Female Flange Without Washer
1.5 Inch Auto Car Accessories Exhaust V Band Clamp Male Female Flange Without Washer
1.5 Inch Auto Car Accessories Exhaust V Band Clamp Male Female Flange Without Washer
1.5 Inch Auto Car Accessories Exhaust V Band Clamp Male Female Flange Without Washer
Specifications
Brand Name :
YP
Model Number :
custom
Certification :
iso
Place of Origin :
CHINA
MOQ :
50pcs
Supply Ability :
5000 per month
Packaging Details :
we will carefully give our packaging suggestion or packing according to your requirement.
Product name :
Type V Band Exhaust Clamp
Material :
Stainless Steel, SS304 or other material
Usage :
Heavy Duty
Size :
1.5-6 inch
Application :
Exhaust Clamp
Shape :
Round
Screw type :
Square
Structure :
T Clamp
Description

1.5 Inch Auto Spare Parts Exhaust V Band Clamp Male Female Flange Without Washer

Product Detalls:

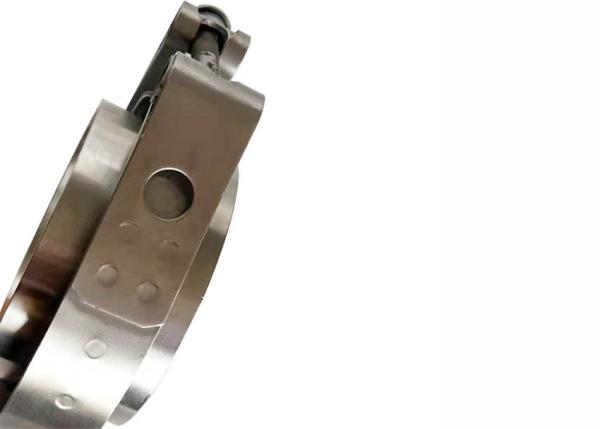

The v band pipe clamp adopts high quality stainless steel or galvanized thin steel belt and v-ring sealing connection.clamp overall polishing, bright without burr.Special technology bending forming, with a unique anti-loose spring design, and various complex working conditions can be tight hose, sealing is very strong.It can be adjusted slightly, so that the flange and flange and seal between the adjustment and alignment of uniform force hold tight, light and fast body.

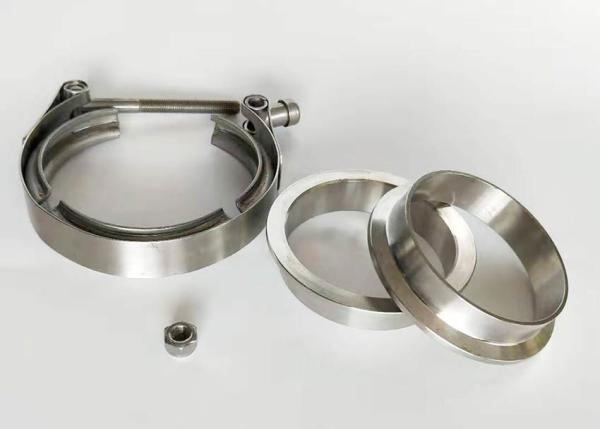

V Band couplings are mechanical connecting clamps consisting of two or more V insert sections welded inside a strong and adjustable clamp. Each assembly consists of two Stainless Steel Male Female flanges and one 304 Stainless Steel V band clamp,providing a perfect overlap seam for welding.The exhaust clamp design allows for a gasket free seal.

size(inch) Flange inner diameter(mm) Outer diameter of exhaust pipe(mm) Material
1.5 38.9 38.1 SS304
1.75 45.3 44.5 SS304
2 51.6 50.8 SS304
2.25 57.9 57.1 SS304
2.5 64.3 63.5 SS304
2.75 70.6 69.8 SS304
3 77 76.2 SS304
3.25 83.3 82.5 SS304
3.5 89.7 88.9 SS304
3.75 96.1 95.6 SS304
4 102.4 101.6 SS304
4.5 115.1 114.3 SS304
5 127.8 127 SS304
6 153.2 152.4 SS304

Features:


Rich configuration on both T Bolt and Nut and match various application even critical like hih temperature, high vibration.

1. Whole stainless steel and resistant to corrosion;
2. Positive sealing integrity;
3. Easy assembly and disassembly;
4. High strength and reliable;
5. Good welding and physical performance .Outer diameter of exhaust pipe

6. Bending by special technology means, it has a unique anti-loosening spring design.

7. After the inner ring is tightened, the hose is rounded to ensure that the hose can hold the hose tightly under elastic deformation and various complex working conditions, with strong sealing.

Application:


The V-Band Clamps/Couplings offer effective fastening solutions in exhaust systems,including filter frame, turbocharging system, exhaust system and industrial application which need flange connection. remove intercooler systems and turbo parts, such as charge piping, intake pipes, diesel engines, turbochargers, and heavy-duty exhaust systems.Etc
