Metal Connect Fittings Blast Gate 100mm For Dust Collection
Metal Connect Fittings Blast Gate 100mm For Dust Collection
Metal Connect Fittings Blast Gate 100mm For Dust Collection
Metal Connect Fittings Blast Gate 100mm For Dust Collection
Specifications
Brand Name :
WD
Model Number :
WD-503016
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
3000-8000 per month
Delivery Time :
10-35 days According yuor order
Packaging Details :
standard package wooden cases or cartons or as client`s request.
Product name :
Valves Dust Collector
Metail :
Zinc plate
Condition :
New
Main function :
Removing Industrial Dust
Size :
80-200mm
Packing :
Carton + pallet / wooden case
Type :
Manual
Payment :
TT or according according to the needs of customers
Seal ring :
Not
Thickness :
1.2mm
Description

Metal Connect Fittings Dust Collection Hose Sliding Damperfor Dust Valves Collector Systems

Product Detail :

Used in every dust collection system to control air flow from one machine to another, blastgates maximize system efficiency.

Adjust the flow of air flow and manually control the size. Light and compact weight, fast and simple manual operation. Flange pipe or hose connection can be connected. We have corresponding connecting clamps, which can be distributed uniformly.

Product name Manual Sliding damper
Thinkness 1.2mm
Material Carbon steel
Surface treatment Galvanized
OEM/ODM YES
Payment T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight

Metal Connect Fittings Blast Gate 100mm For Dust Collection

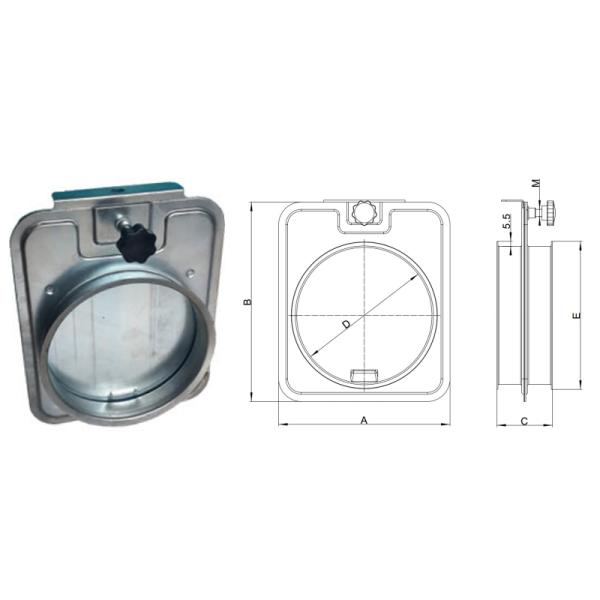

øD(mm) A(mm) B(mm) C(mm) D(mm) E(mm) M(mm) Thickness(mm)

80

 120 150 40 80 93 M8 1.2
100 140 170 40 100 113 M8 1.2
120 160 190 40 120 133 M8 1.2
150 190 220 40 150 163 M8 1.2
160 200 230 40 160 173 M8 1.2
180 220 250 40 180 193 M8 1.2
200 240 300 40 200 213 M8 1.2
250 290 350 40 250 263 M8 1.2


Product Application :

Sliding damper valves are often used together with unloading devices or silos. Manual screw gate valves are flange connected and easy to install. There are square and circular inlet and outlet. There are dozens of specifications according to the size of caliber. They are widely used in metallurgy, carbon, chemical industry, building materials and other industries. The manual gate valve has the advantages of simple and compact structure, reasonable design, light and flexible operation, small volume, smooth channel, low resistance, easy installation and disassembly.

Email : export@ypmachinery.com

Whatsapp:+86 16631129391

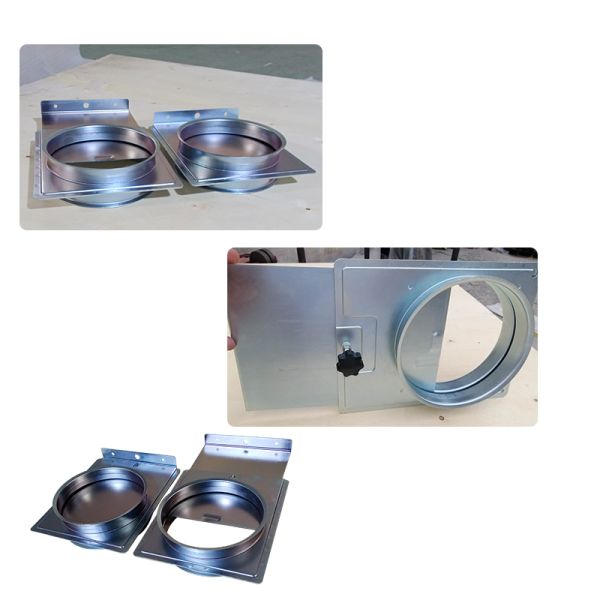

Product Picture:

Metal Connect Fittings Blast Gate 100mm For Dust CollectionMetal Connect Fittings Blast Gate 100mm For Dust Collection
