SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines
SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines
SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines
SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines
SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines
SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines
SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines
SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines
Specifications
Brand Name :
SINOTRUK
Model Number :
HOWO H7
Certification :
CCC.CE
Place of Origin :
China
MOQ :
1
Price :
35000
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
3000units per month
Delivery Time :
30days
Packaging Details :
Nude package after painted wax
engine power :
340hp
wheelers :
10 wheelers
emission standard :
euro 4
color :
white, red, yellow
seats :
2
cargo box :
Diagonal brace
Description

Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.),buses, trailers, including dump truck, tractor truck, concrete mixer truck, sprinkler truck,water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer,flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.

This dump truck we have new and used one,You can choose according to your requirement!

1. Dump Truck Main Specifications:(Configuration can be changed as required)

Truck Model ZZ3257N3647A, Left Hand Drive Model for the Philippines
Truck Brand SINOTRUK -HOWO H7
Dimension(Lx W xH) 8545x2496x3386
Cargo body size (L*W*H, mm) 5800x2300x1400
Cargo body thickness(mm) bottom:8mm, side:6mm, or customized as you required
Lift type of Carriage Ventral lifting or front tipping
Approaching angle/Departure angle(°) 19/26
Overhang(front/rear) (mm) 1500/1739
Wheel base (mm) 3625+1350
Max speed(km/h) 75
Curb weight(kg) 12290
Loading Weight(kg) 25000
Fuel Tanker 300L with locking fuel cap
Fuel consumption(L/100km) 32
Clutch Single-plate dry clutch Φ430mm
Engine Model

WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling ,
Horse Power, 340HP
Emission Standard EURO 4
Transmission Model HW 19710,10 forwards and 2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake

spring energy, compressed air operating on

rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model QJ
Front axle HF9
Rear axle HC16
Tire 12.00R20, 12.00-20
Electrical system Operating voltage 24V,negative grounded
Starter 24V,7.35KW
Alternator 28V,1500W
Batteries 2*12V.165Ah
Tips to build your truck body
Transport medium Floor(mm) Side(mm)
Soil or Stone 8 4
Construction Waste 10 6
Big Ore 12 8
Coal 6 4
clay 8 4
Grain or Chemical fertilizer 6 4

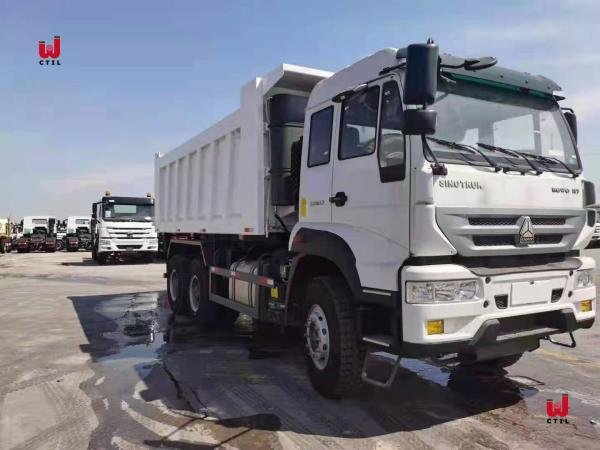

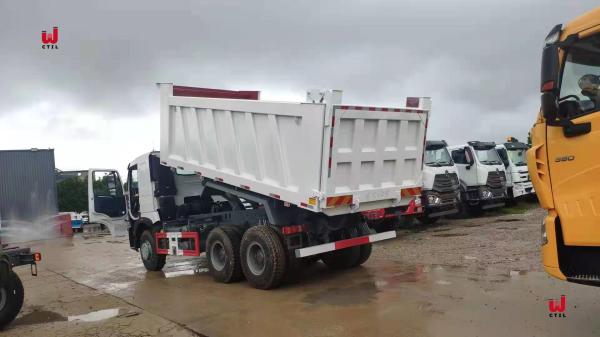

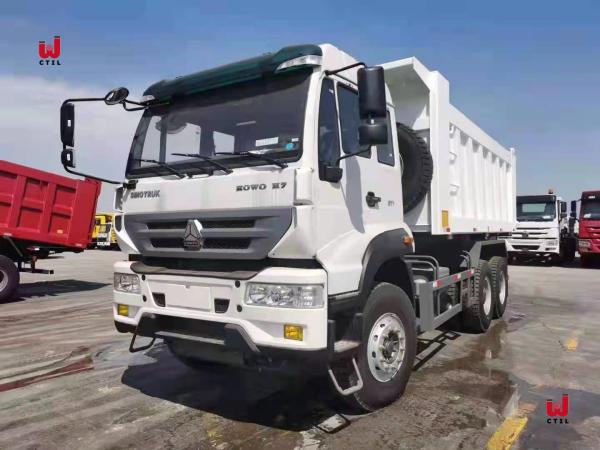

Brand new HOWO dump trucks in our warehouse, waiting for delivery. In order to protect our trucks from the sea water and rain, we painted wax, so color looks not so bright.

SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines

SINOTRUK HOWO H7 10 Wheelers Dump Truck For The Philippines
