Specifications
Brand Name :
CTIL
Model Number :
CTIL70
Certification :
CCC,ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
USD90000-140000/unit
Payment Terms :
30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight
Supply Ability :
3000units/month
Delivery Time :
30-45 days
Packaging Details :
Nude packing after painted wax
Color :
as you liked
Loading capcity :
70tons to 110tons
Emission standard :
Euro 2,Euro 3,Euro 4,Euro 5
Application :
Special designed for mining work
Drive wheel :
8x4
Engine capacity :
>8L
Fuel type :
Diesel
Condition :
New
Horsepower :
351 - 450hp
Driving type :
Left Hand Drive,RHD is optional
Description

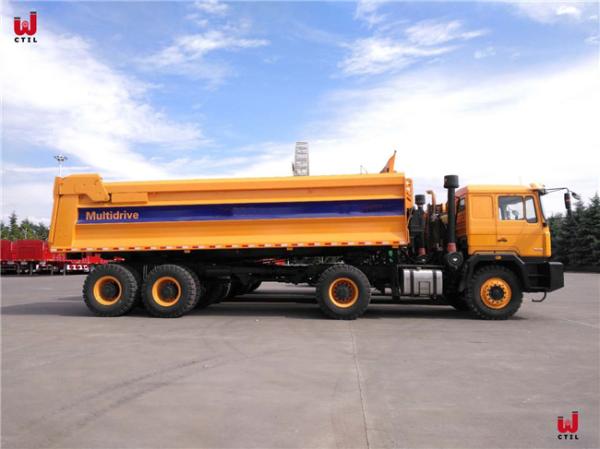

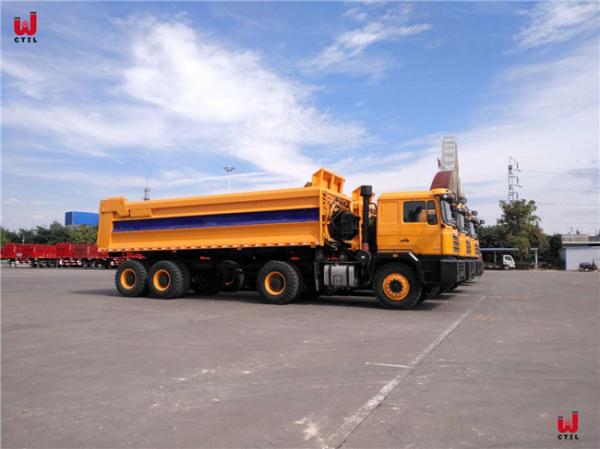

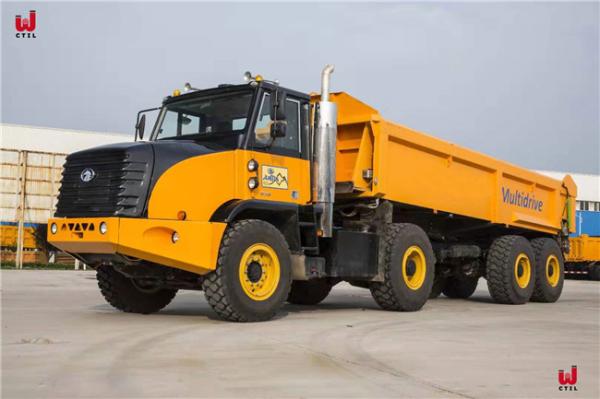

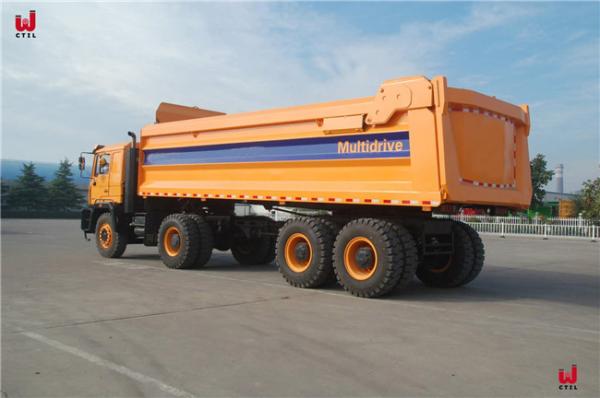

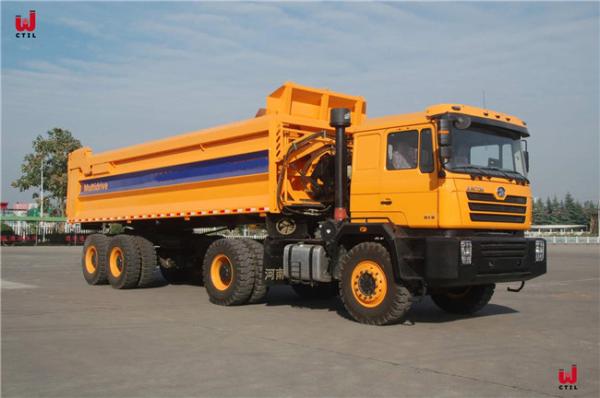

70 to 110 Tons 8X4 Articulated Rock Dump Truck 8X8 Articulating Truck

How does an articulated truck work?

An articulated dump truck works by bending at the articulation joint, so it can navigate more easily. A rigid dump truck steers by using a rack and pinion system. This system turns the entire chassis of the truck at the same time as the front and rear wheels move.

Model Articulated Mine Dump Truck
Gross weight (kg) 108000
Curb weight (kg) 38000

Engine

Model: C13.540

Rated power/speed(kw/rpm): 400/1900

Displacement: 13L
Transmission FAST 12JS260A
Cab Long head
Suspension Leaf spring suspension
Number of axle 4
Front axle 12T Drum
Rear axle 32T Drum
Tires 14.00-25
Maximum speed(km/h) 55
Van dimension 8500x3100x1600
Overall Dimension(L X W X H mm) 13500x3400x4300

70 to 110 Tons 8X4 Articulated Rock Dump Truck 8X8 Articulating Truck

​70 to 110 Tons 8X4 Articulated Rock Dump Truck 8X8 Articulating Truck

3. High mobility: the Articulated Mine Dump Truck adopts an 8×8 or 8×6 driving mode. When turning, the auxiliary vehicle follows the steering direction.

4. Large volume.

5. Low failure rate and high attendance rate: the main and auxiliary vehicles are connected by an articulated flexible structure. When the articulated dump truck passes the rough road, all the tires will be connected to the groundGood contact, make full use of the ground adhesion, avoid the part of the rigid structure of the wide-body vehicle through the rough road.The tyre and the ground do not contact, the vehicle effective power is low.The flexible joint structure can decompose the vehicle through the rough roadThe impact force generated in the road can effectively relieve and avoid the plate spring fracture caused by the large impact force between the ground and the vehicle.Loose bolt, etc
