Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck
Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck
Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck
Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck
Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck
Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck
Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck
Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck
Specifications
Brand Name :
SHACMAN
Model Number :
SX3315DR366
Certification :
CCC,ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD43,500.00-USD46,000.00 per unit
Payment Terms :
30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight
Supply Ability :
3000units/month
Delivery Time :
30-45 days
Packaging Details :
Nude packing after painted wax
Loading capacity :
20-30 tons
Drive wheel :
6x4
Engine capacity :
> 8L
Fuel type :
Diesel
Gross vehicle weight :
31000
Cab :
with Air conditioner
Description

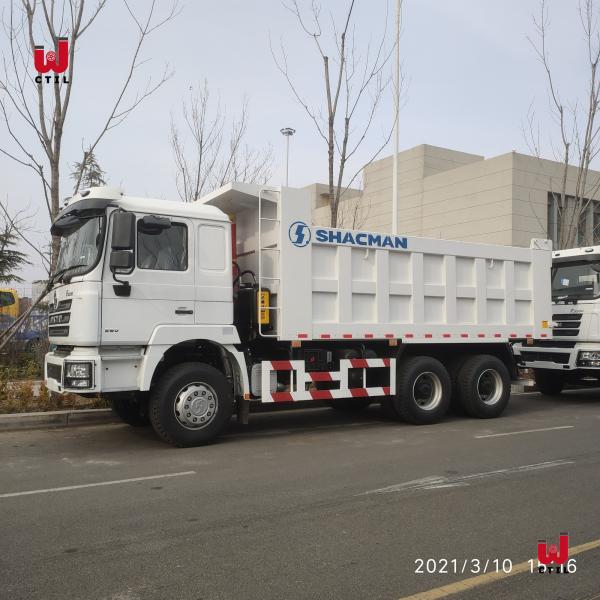

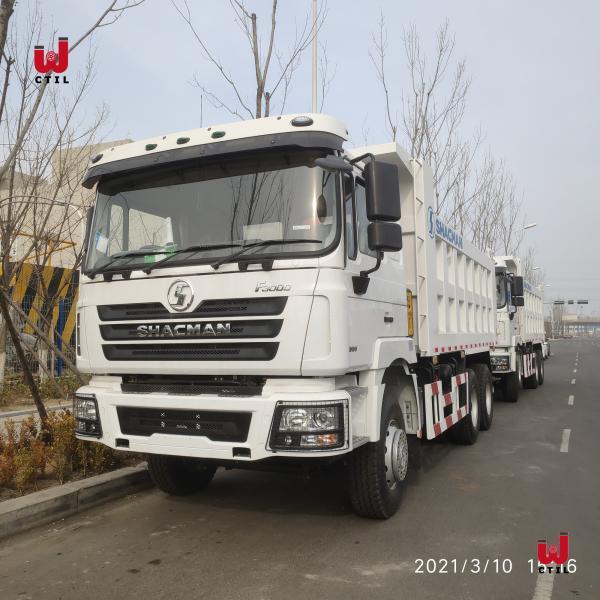

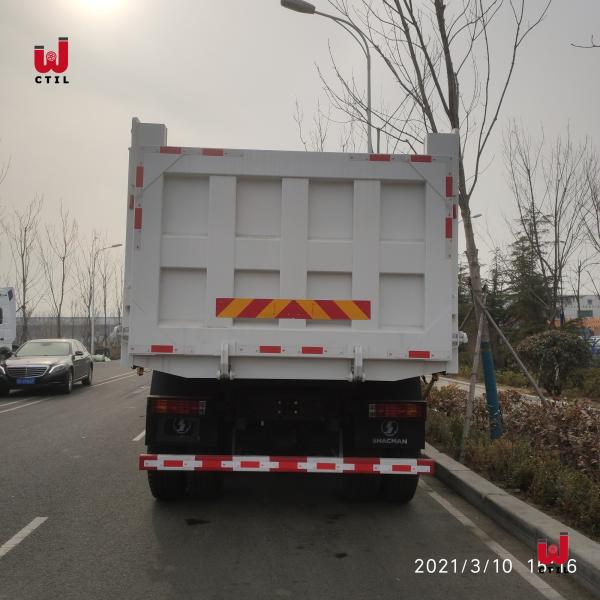

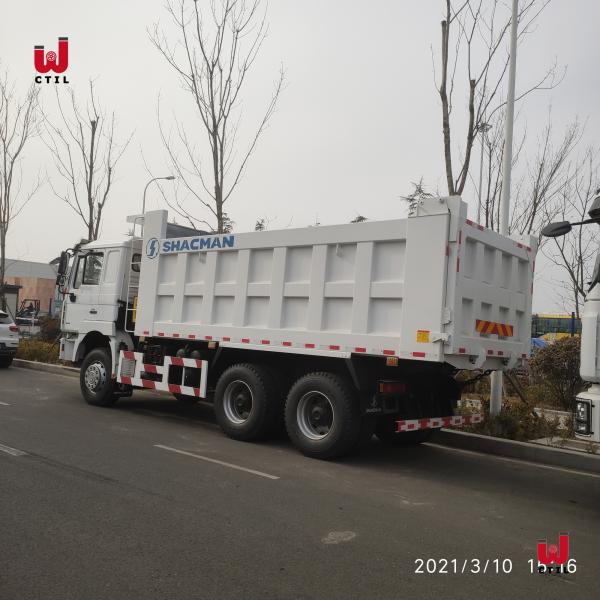

SHACMAN F3000 6x4 20-30 Ton Construction Work Heavy Duty Dumper Truck

The F3000 Series products are the latest success of SHACMAN. Introduced in 2009 it quickly became one of our top selling products.

The F3000 has an improved driver's cab utilizing advanced technologies from the German truck giant, MAN. The power of the F3000 series comes from Wei Chai Euro III, IV engines or the Euro III, IV and V electric control engines Made by Cummins. F3000 series utilize technologies introduced by MAN in its front/rear axles and its suspensions, cooling system of the chassis, the intake/exhaust systems and the chassis structure/layout. Powerful, safe, reliable and comfortable, the F3000 is a refined product line positioned in the high-end market of the truck manufacturing industry. The F3000 series has many optional equipments to customize from; it is a new generation of products that meets the toughest demands and requirements for all purposes under any working condition.

Cabin Standard Cab
With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions (L x W x H)mm 8600×2550×3450
Wheel base (mm) 3975+1400
Wheel track (front/rear) (mm) 2036/1860
Approach/Departure angle(°) 17/23
Weight in KGS Tare Weight 12500
Loading Capacity 30000~40000kg
Front axles loading capacity 9000
Rear axles loading capacity MAN 2x16000
Max. driving speed(km/h) 85
Engine Brand Sinotruk
Model WP12.375E50
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 375HP
Emission standard Euro III,eURO IV or Euro V
Gearbox 12JSDZ240T, 12 forwards & 2 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear power steering, hydraulic steering with power assistance
Fuel tank (L) 400
Tire 12.00R20 radial tire ,12 pieces with one spare
Brakes Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck

Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck

Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck

Packing:Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO.

Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck
