CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer
Specifications
Brand Name :
CTIL
Model Number :
CTILTANK0413
Certification :
CCC,ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD13000-18000/unit
Payment Terms :
30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight
Supply Ability :
3000units/month
Delivery Time :
30-45 days
Packaging Details :
Nude packing after painted wax
Tank material :
carbon steel, stainless steel, aluminuim
Color :
optional
Tire brand :
triangle,double coin
Axles quantity :
2/3
Material :
Steel
Type :
Semi-Trailer
Max payload :
50T
King pin :
2"(50mm)or3.5"(90mm) JOST
Description

3 Axle 45-60cbm New Bulk Powder Cement Tanker Heavy Truck Semi Trailer

What is bulk trailer?

The dry bulk trailer is manufactured in the form of a large body tank. Therefore, these trailers are manufactured in a way that they have a single compartment that serves for loading into and unloading. Manufacturers' most common material choice for dry bulks' is aluminum or steel.

1. 3 Axle 45-60cbm New Bulk Powder Cement Tanker Semi Trailer technological specifications

Trailer Model 45-60 M3 BULK CEMENT SEMI TRAILER
Overall Dimension
(Lx W x H)(mm)		 12000x2490x3990mm
Function transport bulk powder
Thickness(mm) Tank body: Q235A 5mm carbon steel
End plate: Q235A 6mm carbon steel
Loading Weight( KG) 50000
Axle 3x13Ton, FUWA brand
Air compressor 37 KW,0.2Mpa. 1000r/Min(12m3/minute) Bohai brand
Compartment 1
Manhole cover 500mm manhole cover. 1 sets with 1 breath valve.
Discharge valve 4''disc valve
Discharge pipe 4''seamless steel tube
Suspension system Standard Mechanical suspension
Bottom valve quantity 1 unit
Steel Spring 10/10/10 leaf spring suspension
Engine Diesel engine: Weichai brand model:4102
Tire 12R22.5 12units tubeless tire.
Traction Pin 50mm or optional 90mm
Spare Wheel Bracket 2 pieces
Tool Box 1 Standard
Landing Gear Standard 28 tons
Brake system Dual Line braking system
Brake air chamber WABCO brand, Six big double air chambers
Electrical system 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Side Guard According to customer's requirement
Painting According customer requirement
Packing Polish with wax before shipping

We are one of the leading and professional manufacturers in China with wide experience and expertise. Please rest assured to get our 3 Axle 45-60cbm New Bulk Powder Cement Tanker Semi Trailer for sale. For more info, contact us now.

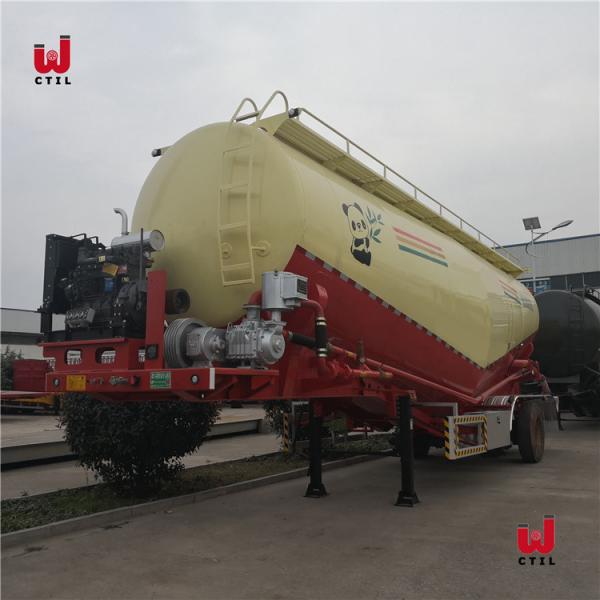

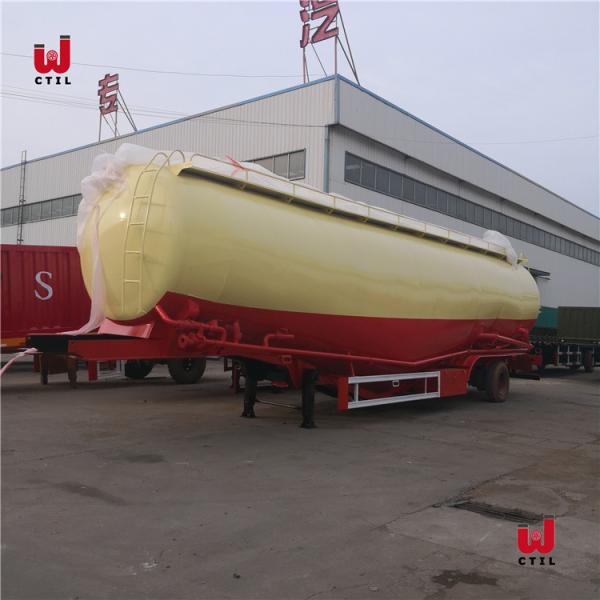

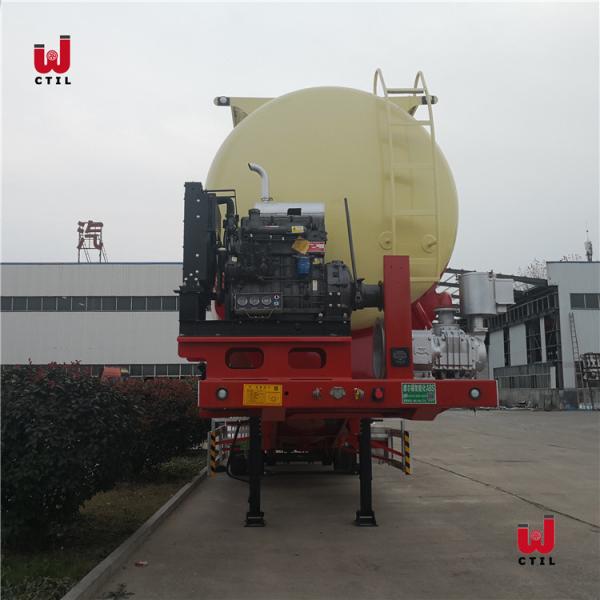

2. Powder Tanker Trailer Photos

CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer

CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer

CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer

CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer

3. Choose your truck
HOWO -7 tractor truck CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer Driving Model:4x2, 6x2, 6x4
Engine:290hp,336hp,371hp,420hp
Gearbox: HW19710, HW19712
Tire:1200R20 Radial tire, 12R22.5Tubless tire
payload:20-50t
HOWO -A7 tractor truck CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer Driving Model:4x2, 6x2, 6x4
Engine:270hp,300hp,340hp, 380hp, 420hp
Gearbox: HW19710, HW19712
Tire:1200R20 Radial tire
payload:20-50t
HOWO E7
tractor truck		 CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer Driving Model:6x4
Engine: 310hp, 340hp, 350hp
Gearbox:HW19712, HW19712CL
Tire:295/80R22.5, 12R22.5, 12.00R20
payload:20-50t
HOWO-T7H tractor truck CCC Dry Bulk Cement Tanker 60cbm Tractor And Semi Trailer Driving Model:4x2, 6x2, 6x4
Engine: 400hp, 440hp, 540hp,
Gearbox:HW19712, HW20716, HW25712
Tire:295/80R22.5, 315/70R22.5, 12.00R20
payload:20-50t

We are one of the leading and professional manufacturers in China with wide experience and expertise. Please rest assured to get our custom tri axles carbon steel material crude oil tanker tractor trailers capacity 60000l for sale. For more info, contact us now.
