3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
Specifications
Brand Name :
CTIL
Model Number :
CTILLOWBED1203
Certification :
CCC,ISO
Place of Origin :
China
MOQ :
1unit
Price :
9000-18000USD per unit
Payment Terms :
30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight
Supply Ability :
3000units/month
Delivery Time :
30-45 days
Packaging Details :
Nude packing after painted wax
Material :
carbon steel, other material is optional
Gooseneck :
with
crawling ladder :
Manual and hydraulic is optional
Lowbed length :
according to customer's requires
Description

China Heavy Equipment Hauling Trailers 60 Tonnes 3 Axles Low Bed Trailer

What does lowboy mean to truckers?
Lowboy. When the height of certain shipments gets too tall even for a step deck, a lowboy trailer will need to be called into action. A more official name for these might be 'double drop' trailer, due to its resemblance to a more severe step deck. These trailers are wonderful for oversized freight

1. MAIN DESCRIPTION
Overall dimensions (LxWxH) 13000 x 3000 x 1650 mm
Working platform size (LxWxH) 9000 x 3000 x 1550 mm, or tell us your requirements
Loading capacity 60 ton
Main beam Height of the beam is 500mm
Upper plate is 16mm,
down plate is 18mm,
middle plate is 10mm
Platform size 3mm
Chassis
Axle Fuwa brand axle 13 ton x 3
Wheel base 8580 + 1310 + 1310 mm
Suspension Mechanical suspension
Spring leaf spring 10 / 10 /10
Traction pin 2" or 3.5"
Landing leg standard 28 ton
Ladder Mechanical ladder
Tire Triangle brand 12R22.5 tubless tyre
Accessories
Brake 6 big double chamber
Tool box 1 unit
Spare tyre carrier 2 units
Color optional

2. Choose your truck
HOWO -7 tractor truck 3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter Driving Model:4x2, 6x2, 6x4
Engine:290hp,336hp,371hp,420hp
Gearbox: HW19710, HW19712
Tire:1200R20 Radial tire, 12R22.5Tubless tire
payload:20-50t
HOWO -A7 tractor truck 3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter Driving Model:4x2, 6x2, 6x4
Engine:270hp,300hp,340hp, 380hp, 420hp
Gearbox: HW19710, HW19712
Tire:1200R20 Radial tire
payload:20-50t
HOWO E7
tractor truck		 3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter Driving Model:6x4
Engine: 310hp, 340hp, 350hp
Gearbox:HW19712, HW19712CL
Tire:295/80R22.5, 12R22.5, 12.00R20
payload:20-50t
HOWO-T7H tractor truck 3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter Driving Model:4x2, 6x2, 6x4
Engine: 400hp, 440hp, 540hp,
Gearbox:HW19712, HW20716, HW25712
Tire:295/80R22.5, 315/70R22.5, 12.00R20
payload:20-50t

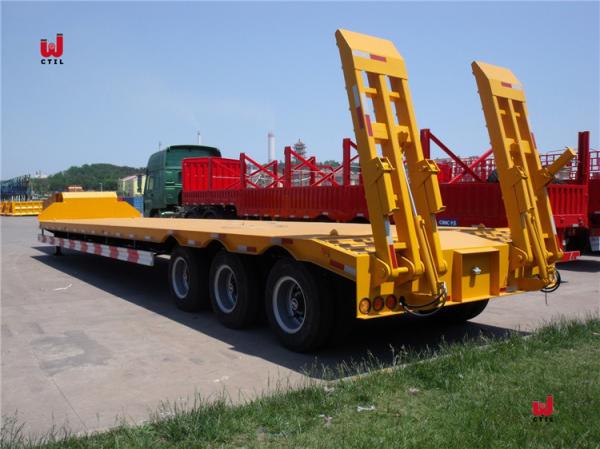

3. China Heavy Equipment Hauling Trailers 60 Tonnes 3 Axles Low Bed Trailer Photos

3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter

3 Axles 60t Heavy Equipment Hauling Trailers/Low Bed Trailer Transporter
