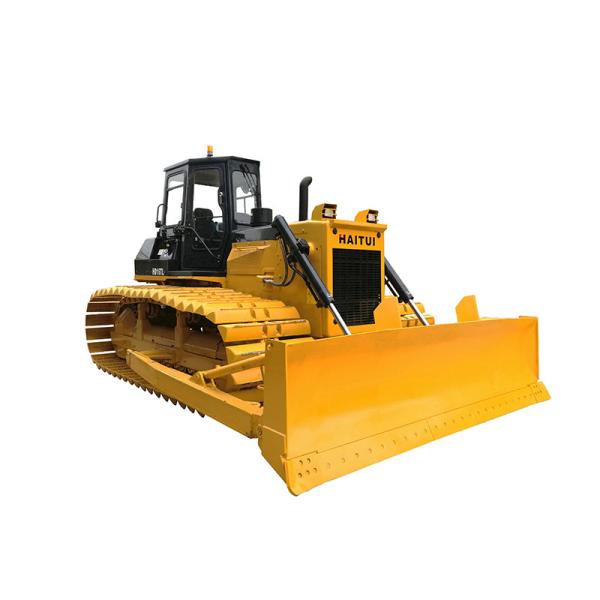

Quality machine Relibale performance HAITUI CRAWLER Bulldozer HD16 bulldozer Engine WEICHAI
Quality machine Relibale performance HAITUI CRAWLER Bulldozer HD16 bulldozer Engine WEICHAI
Quality machine Relibale performance HAITUI CRAWLER Bulldozer HD16 bulldozer Engine WEICHAI
Quality machine Relibale performance HAITUI CRAWLER Bulldozer HD16 bulldozer Engine WEICHAI
Specifications
Brand Name :
HAITUI Cralwer Bulldozer
Model Number :
HD16
Certification :
ISO9000
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
30 working days
Type :
Crawler
Engine :
Weichai
undercarridge :
SJ
Condition :
NEW
Description
Model HD16 HD22 HD32
Engine model Weichai WP10G178E355 Cummins NT855-C280S10 Cummins NTA855-C360S10
Rated power(kw/rpm) 131/1850 kw/rpm----160HP 175/1800 ---220HP 235/2000----320HP
Displacement(L) 9.726 14.01 14.01
Max.torque(N.m/rpm) 830/1000-1200 1030/1250 1440/1400
Operating weight(Kg) 17000 23450 372000
Dimension(no ripper)(mm) 5140×3388×3032 5492×3726×3742 6885×4128×3645
Min ground clearance(mm) 405 405 500
Ground pressure(MPa) 0.067 0.072-0.077 0.105/0.09/0.078
Track shoe width(mm) 510 560/610/660 560/660/760
Track gauge(mm) 1880 2000 2140
Dozing capacity( m³) 4.55 6.4 10
Blade width(mm) 3390 3725 4130
Blade height(mm) 1150 1315 1590
Max drop below ground(mm) 540 540 560
Pitch(mm) 203.2 216 228
Quantity of track link 37 38 41
Quantity of Carrier rollers 4 4 4
Quantity of Track rollers 12 12 14
Max pressure(MPa) 14 14 14
Discharge(L/min) 213 262 355
Max tractor force(KN) 146 202 280
Grade ability(°) 30 30 30
Forward(km/h) 3.29/5.82/9.63 3.6/6.5/11.2 3.6/6.6/11.5
Reverse(km/h) 4.28/7.59/12.53 4.3/7.7/13.2 4.4/7.8/13.5
