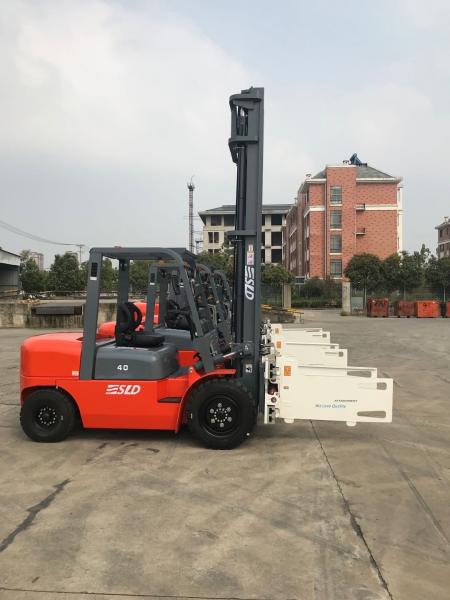

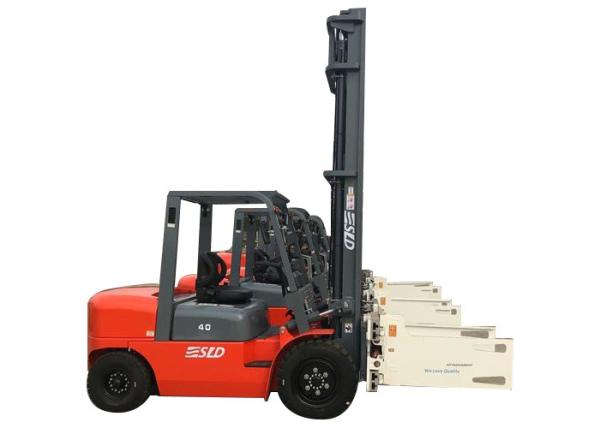

6m Mast lifting 8k 4 Ton Pallet Diesel Forklift Truck Machine
6m Mast lifting 8k 4 Ton Pallet Diesel Forklift Truck Machine
6m Mast lifting 8k 4 Ton Pallet Diesel Forklift Truck Machine
6m Mast lifting 8k 4 Ton Pallet Diesel Forklift Truck Machine
6m Mast lifting 8k 4 Ton Pallet Diesel Forklift Truck Machine
6m Mast lifting 8k 4 Ton Pallet Diesel Forklift Truck Machine
Specifications
Brand Name :
SLD
Model Number :
FD40
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, L/C
Supply Ability :
300 units per month
Delivery Time :
15 working days
Packaging Details :
Nude
Power Type :
Diesel
Overall dimension(without fork) :
3245x1430x2270mm
Service weight :
6480mm
Rated load :
4000kgs
Load center :
500mm
Lift height :
3000mm
Wheelbase :
2100mm
Fork size :
1070x150x55mm
Engine :
ISUZU
Transmission :
Hydraulic
Description

4.0 Ton Diesel Forklift Forklift With ISUZU Engine With Mast Lifting Height 6000mm

Components
4.0T diesel counterbalance forklift truck is mainly composed of engine, transmission, operating control device, working device (inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and others), hydraulic system and electrical system.

  • It can be equipped with several diesel engines, which is convenient for customers to choose.
  • Built-in tilt cylinder makes the counterbalance forklift truck have much wider driving space.
  • Integrated operating system contributes to simple operation.
  • With unique overhead guard design,3.0-4.0T diesel forklift truck owns good visibility and is safer to drive.
  • Fully isolated driver compartment is beneficial to reduce vibration of truck body.
  • The driving cab of counterbalance forklift truck is designed based on ergonomics, which can reduce drivers' fatigue.
  • Our company has established over 30 domestic agencies and more than 10 foreign agencies, which greatly guarantees excellent service and technical support.
  • provides one year warranty for the main components of 3.0-4.0T diesel forklift trucks. During the warranty period, the replaced material expense and labor cost are both free.

General

Model

FD40T

FD45

FD50

Power Type

Diesel

Diesel

Diesel

Load Capacity

kg

4000

4500

5000

Load centre

mm

500

500

500

Tyre

Tyre

Pneumatic Tyre

Pneumatic Tyre

Pneumatic Tyre

Front Tyre

250-15-16PR

300-15-18PR

300-15-18PR

Rear Tyre

6.50-10-10PR

7.00-12-12PR

7.00-12-12PR

Overall Dimension

Lift Height

mm

3000

3000

3000

Fork Size

L×W×T

mm

1070×125×50

1070×150×55

1070×150×55

Mast Tilt Angle

F/R

.

6/12

6/12

6/12

Mast Lowered Height

mm

2195

2330

2330

Mast Extended Height(with backrest)

mm

4180

4165

4165

Length to face of fork(Without fork)

mm

2890

3245

3245

Overall Width

mm

1410

1430

1430

Overhead Guard Height

mm

2120

2340

2340

6m Mast lifting 8k 4 Ton Pallet Diesel Forklift Truck Machine

6m Mast lifting 8k 4 Ton Pallet Diesel Forklift Truck Machine

6m Mast lifting 8k 4 Ton Pallet Diesel Forklift Truck Machine

6m Mast lifting 8k 4 Ton Pallet Diesel Forklift Truck Machine
