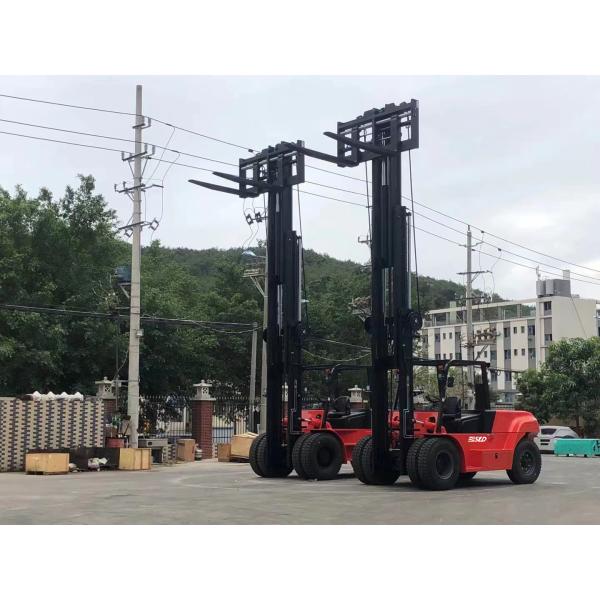

12 Tons Heavy Duty Forklift With Cummins Engine
12 Tons Heavy Duty Forklift With Cummins Engine
Specifications
Brand Name :
SLD
Model Number :
FD120
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD43,478.00~USD50,724.00 unit
Payment Terms :
L/C, T/T
Supply Ability :
100 units per month
Delivery Time :
30 working days
Packaging Details :
40HQ containers
Engine :
Yuchai or CUMMINS
Rated load :
12000 kgs
Load center :
600mm
Mast lifting height :
3000mm
Wheel base :
2950mm
Service weight :
16000kgs
Color :
Orange red,customized
Warranty :
one year or 2000 working hours
Fork size :
1600X180X90mm
Options :
full cabin with A/C, fork positioner, side shift
Attachments :
fork, roll prong, bale clamp, tire clamp
Description

Heavy Duty Forklift 12 Tons With Cummins Engine For Sale

Features of 12 ton forklift:

1, The engine is Cummins or Yuchai Diesel Engine. big power, large torque, simple to operate and luxurious operation environment, save energy.
2, Hydraulic power shift transmission, big traction in combined operating condition, the transmission system more reliable.
3, Variable speed control valve matched with neutral starter, the machine start more secure.
4, Front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structure bridge shell support, increase the load capacity and service life.

5, Strong roof guard or full cabin with air-conditioning , wide view and comfortable seats, flexible control.

Parameters: Vehicle configuration FD120
Performance Rated load 12000
Load center 600
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 6130
Width mm 2230
Height mm 2940
Mast lifting height mm 3000
Fork size (L*W*H) mm 1600X180X90
Min. turning radius mm 4350
Max. travel speed (with load) Km/h 23
Lifting speed (with load) mm/s 220
Gradeability (with load) % 20
Weight Kg 16000
Tyre Front 4X11.00-20/18PR
Rear 2X10.00-20/18PR
Wheel tread Front mm 1630
Rear mm 1780
Wheelbase mm 2950
Min. ground clearance mm 300
Engine Model YC6J150-T301
Rated power KW 110
Max. torque N.m 600

Note: the above data are subject to change without prior notice.
