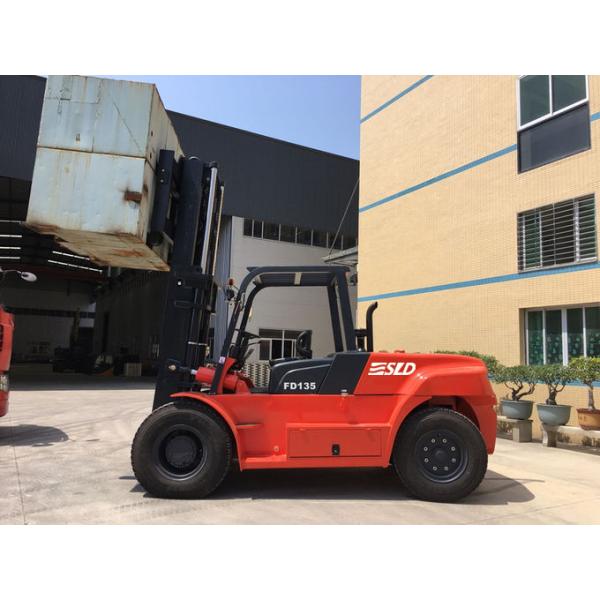

13.5 Ton Heavy Duty Diesel Forklift With Yuchai / CUMMINS Engine
13.5 Ton Heavy Duty Diesel Forklift With Yuchai / CUMMINS Engine
Specifications
Brand Name :
SLD
Model Number :
FD135
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD43,478.00~USD50,724.00 unit
Payment Terms :
L/C, T/T
Supply Ability :
100 units per month
Delivery Time :
30 working days
Packaging Details :
40HQ containers
Name :
Heavy Lift Forklift
Rated load :
13500 kgs
Mast lifting height :
3000mm
Wheel base :
2950mm
Service weight :
16000kgs
Engine :
Yuchai or CUMMINS
Load center :
600mm
Fork size :
1600X180X90mm
Description

FD135 Diesel Forklift 13.5 Ton Heavy Duty Forklift

This 13.5 ton diesel forklift is widely accepted by customers because of its economy.

1. Adopt Yuchai diesel engine, large torque, strong overload capacity, reliable work, and low oil consumption.

2. Hydraulic transmission, Heavy duty torque converter installed for smooth rotation of power within the internal combustion engine, to rotating-driven loads. Torque converter supersedes the mechanical clutch, effectively allowing the load to be configured from the power source.

3, Heavy load driven axle, Good heat dissipation and long service life.
4. Flexible steering axle adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability.

5. Standard 2 stage mast with wide view, reasonable structural design ensures high-quality performance.


13.5 tons heavy duty forklift Parameters

Parameters: Vehicle configuration FD135
Performance Rated load 13500
Load center 600
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 6130
Width mm 2230
Height mm 2940
Mast lifting height mm 3000
Fork size (L*W*H) mm 1600X180X90
Min. turning radius mm 4350
Max. travel speed (with load) Km/h 23
Lifting speed (with load) mm/s 220
Gradeability (with load) % 20
Weight Kg 16000
Tyre Front 4X11.00-20/18PR
Rear 2X10.00-20/18PR
Wheel tread Front mm 1630
Rear mm 1780
Wheelbase mm 2950
Min. ground clearance mm 300
Engine Model YC6J150-T301
Rated power KW 110
Max. torque N.m 600

Note: the above data are subject to change without prior notice.
