Specifications
Brand Name :
Huayide
Model Number :
HYD-VNAP
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 set
Price :
can be negotiable
Payment Terms :
L/C, T/T
Supply Ability :
900000KGS PER Month
Delivery Time :
10-20 working days
Packaging Details :
Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack .
Type :
Vna Rack
Height :
1500-8000mm or Customized
Width/Depth :
400-1500mm or Customized
Length :
1500-3200mm or Customized
Raw Material :
High-quality Q235 cold-rolled steel
Loading Capacity :
1000~6000kgs or 2200~13200lbs
Surface Treatment :
Powder coated
Pitch Holes :
75mm
Description

Very Narrow Aisle Pallet Racking (VNA)

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

Very narrow aisle pallet racking condenses standard pallet racking into a smaller area which is conspired to generate a high-density storage system from the vertical level.

VNA · Warehouse Storage Rack · Made In China

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

Key Features​

—

- Direct access to all the unit loads
- Save up to 40% of space by reducing the work aisles
- Simple assembly, disassembly, and re-adaptation of load levels
- Compatible with any type of goods, by weight or volume
- Allows pallet storage at floor level on the lowest level of the racking.
- Flexible enough to install stacker cranes.

VNA · Warehouse Storage Rack · Made In China

Specification​

—

Standard Size L2300*D1000*H4500 and size can be customized as your request
Height 1500-8000mm or Customized;
Width/Depth 400-1500mm or Customized;
Length 1500-3200mm or Customized;
Color In default, the Upright frame is blue, and the Beam is orange, which can be customized.
Raw Material High-quality Q235 cold-rolled steel
Upright-Section 80*60*1.5/1.8/2.0mm,90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm, etc.
Beam-Section 80*45mm, 100*45mm, 120*45mm, 140*45mm,160*45mm,180*45mm etc.
Layers Customizable
Pitch Holes 75mm
Loading Capacity 1000~6000kgs or 2200~13200lbs
Surface Treatment Powder coated
Packaging Air bubble, Wooden Case, etc.

FrameUprightHeight & AisleTypes

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

VNA · Warehouse Storage Rack · Made In China

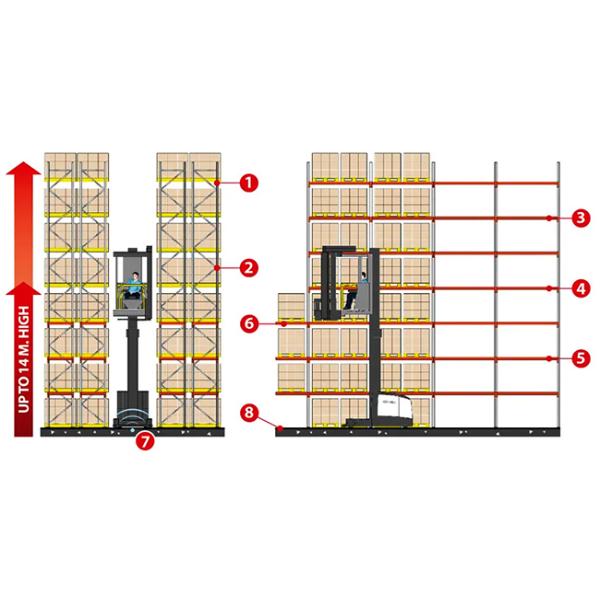

High-RiseVNA Racking Components​

—

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

VNA · Warehouse Storage Rack · Made In China

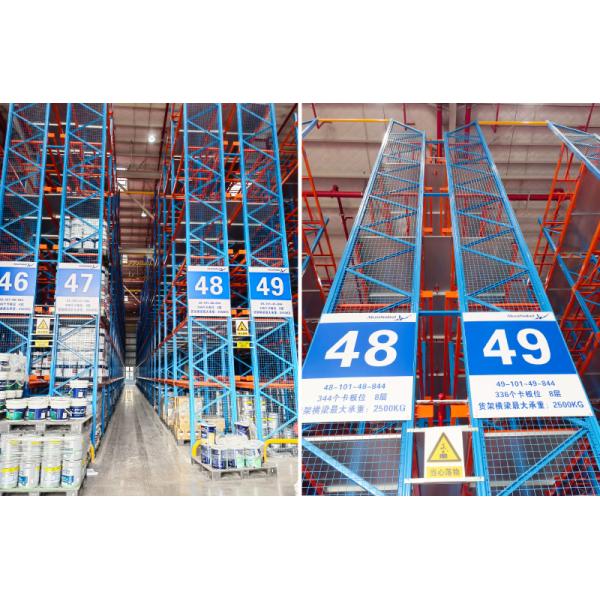

CASE​

—

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

VNA · Warehouse Storage Rack · Made In China

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

VNA · Warehouse Storage Rack · Made In China

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

VNA · Warehouse Storage Rack · Made In China

Ensure the quality of Huayide racking products

—



1 The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2 The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3 Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4 Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

B07: Very Narrow Aisle Heavy Duty VNA Pallet Racking Warehouse Storage VNA Racking

VNA · Warehouse Storage Rack · Made In China
