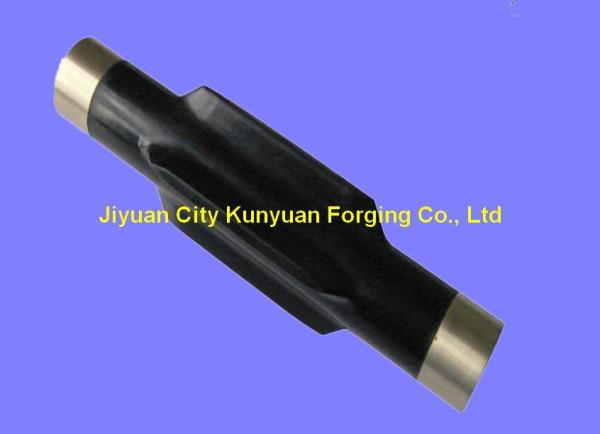

Precision API Standard Straight Integral Blade Drilling Stabilizer 4145H Near Bit Type
Precision API Standard Straight Integral Blade Drilling Stabilizer 4145H Near Bit Type
Precision API Standard Straight Integral Blade Drilling Stabilizer 4145H Near Bit Type
Precision API Standard Straight Integral Blade Drilling Stabilizer 4145H Near Bit Type
Specifications
Place of Origin :
Jiyuan, China (Mainland)
Brand Name :
KY
Certification :
ISO9001:2008
MOQ :
5 Metric tons
Price :
USD 1-10000 /Piece
Packaging Details :
Packaged with steel pallet, wooden case packing suitable for long distance transportation
Delivery Time :
50~65 days after receiving the order
Payment Terms :
L/C,T/T
Supply Ability :
4000 Metric Tons per Year
Material :
4145H,4145Mod,40CrMnMo
Test :
100% UT
Brand :
KY
Certificate :
ISO9001:2008
Origin of Goods :
Jiyuan, China
Standard :
API
Name :
Integral Blade Drilling Stabilizer
Processing type :
Forging& Rough machined
Color :
Black
Package :
Iron stand
MOQ :
5 Metric tons
Description

Precision API Standard Straight Integral Blade Drilling Stabilizer , Near Bit Type


Description:

Integral straight blade stabilizer: Integral 3-straight rib stabilizer,integral 4-straight rib stabilizer,and Integral multi-straight rib stabilizer ,which working surface are provided with carbide insert compound and overlay,etc. The body is made from high strength alloy steel of heat treatment.



Features:

To be manufactured from high strength 4145H heat treated material.

•One-piece rotation stabilizer can be run either near the bit or up in the drill string.

•Various hardfacing is available i.e. Composite Tungsten Carbide Rod, Tungsten Carbide Inserts, Diamond Inserts, Geothermal.

•Full standard spec and special spec are available.

Applications:

To be applied in most rugged and abrasive drilling formation.


Specifications:

1.Material:4145H,4145Mod,40CrMnMo e ct.

2.UT:ASTM A388

　　　　　　　　　　　Integral blade stabilizer specification

Working
Outer
Diameter

Working
Length

D2

D

L±20

Suitable Bit Diameter
mm(in)

Short Type

Long type

Near-bit Type

Drill
String
Type

Near-bit Type

Drill
String type

L3=150

L1=350

L3=300

L1=700

152.4
152
151

400

500

121

51

950

1050

1100

1200

1450

1550

1650

1750

152.4(6)

158.7
158
157

158.7(6 1/4)

161.5
164
163

165.1(61/
2)

190.5
190
198

400

500

159

57

950

1050

1100

1550

1450

1550

1650

1750

190.5(71/2)

200.0
199
198

200.0(8 3/8)

212.7
212
211

400

500
600

700

178

71

950

1050
1150

1250

1100

1200

1650
1400

1450

1550

1650
1750

1650

1750

1850
1950

212.7(8 3/8)

215.9
215
214

215.9(8 1/2)

222.2
221
220

222.2(8 3/4)

241.3
240
239

400

500

600

700

178

71

950

1050

1150

1250

1100

1200

1300

1400

1450

1550

1650

1750

1650

1750

1850

1950

241.9(9 1/2)

244.5
244
243

244.5(9 5/8)

250.8
250
249

250.8(9 7/8)

311.1
310
309

600
700

800

203

229

76

1250
1350
1450

1400
1500
1600

1850
1950
2050

2050
2150
2250

311.1(12 1/4)

444.5
443
441

700
800
900

1550
1650
1750

1700
1800
1900

2150
2250
2350

2350
2450
2550

444.5(17 1/2)

Competitive Advantage:

Strict quality control

Competitive price

Just-in-time delivery

Specialist services

Quality certificate:ISO9001:2008
