OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project
OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project
OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project
OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project
OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project
OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project
Specifications
Brand Name :
Qiulin
Model Number :
0076
Certification :
N/A
Place of Origin :
Jiangsu China
MOQ :
1 UNIT
Price :
USD20000-100000 per unit
Payment Terms :
L/C, T/T
Supply Ability :
100units per year
Delivery Time :
120days
Packaging Details :
By plastic film and steel frame
Product Name :
Seawater desalination tower equipment
Application :
Petrochemical
Standard :
ASME
pressure :
Atmospheric pressure
Temperature :
Less than 50 degree
Material :
Duplex Stainless Steel
warranty :
12 months from installation
Installation :
pre assembly in workshop
Description

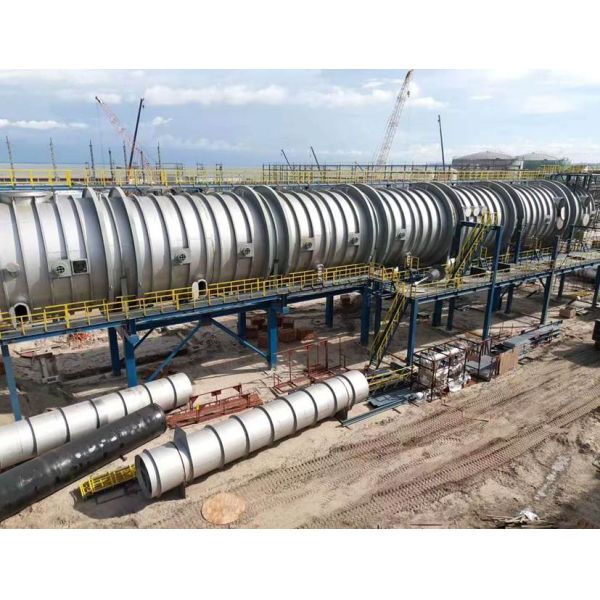

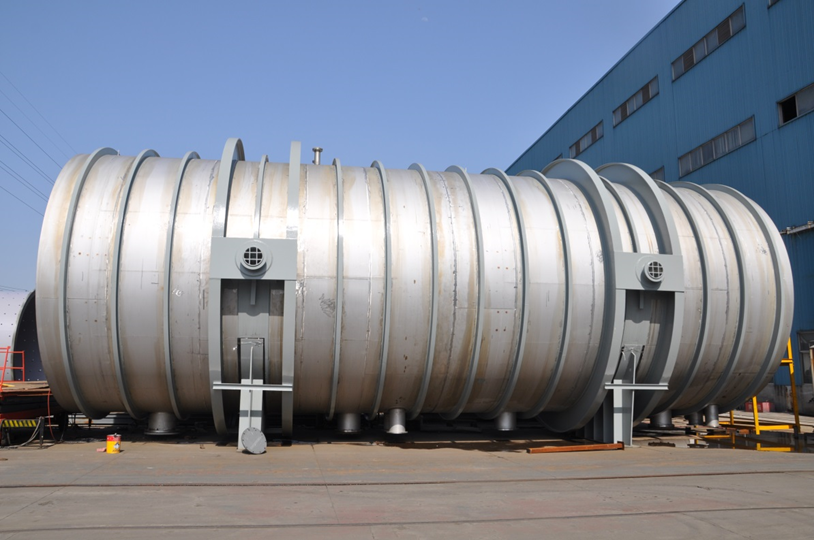

OEM pressure vessel Seawater desalination equipment for Petrochemical Project

Seawater desalination equipment for Shanghai Electric, Petrochemical Project

The equipment Max. dia.:8.2m,

Overall length :760m,single unit length:12m,

Single unit weight :98T

Material: Duplex Stainless Steel ,

Tube Material: Titanium Tube；

Total more than 14000 pcs of tubes in each unit.

Company Information

Established 2006
Export rate 30%
Site Area 100000m2
Supply Scope Steel structure for oil rig, shipbuilding, bridge, workshop and warehouse, dust clean system etc. different kind of structures. Mineral equipment. Tank and pressure vessels
Application Oil and Gas, LNG and Marine , petrochemical, metallurgy, food and pharmaceutical, environmental protection
License

ISO9001/ ISO14001/OHSAS18001

API/AWS/EN

ASME U

Design and fabrication license for pressure vessel (class A1 and A2)
Production capacity

Monthly steel structure fabrication:3000T

Maximum loading weight:200T

Maximum diameter: 9M

Lifting Height: 13M

OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project

Fabrication Site

OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project

Machining Center

OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project

Material Test Lab

OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project

Painting room and RT inspection Room.

OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project

Fabrication Workshop

OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project

OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project

Transportation

OEM Pressure Vessel Seawater Desalination Equipment For Petrochemical Project
