ODM Crawler Tractor Bulldozer Truck For Mining Construction
ODM Crawler Tractor Bulldozer Truck For Mining Construction
Specifications
Brand Name :
XINXING CATHAY
Place of Origin :
CHINA
MOQ :
1
Price :
bargain
Payment Terms :
L/C, T/T
Engine :
WP10G178E355
Rated power :
131/1850
fuel consumpyion :
≤215
operation weight :
15738
ground contact length :
2430
ground pressure :
63
Description

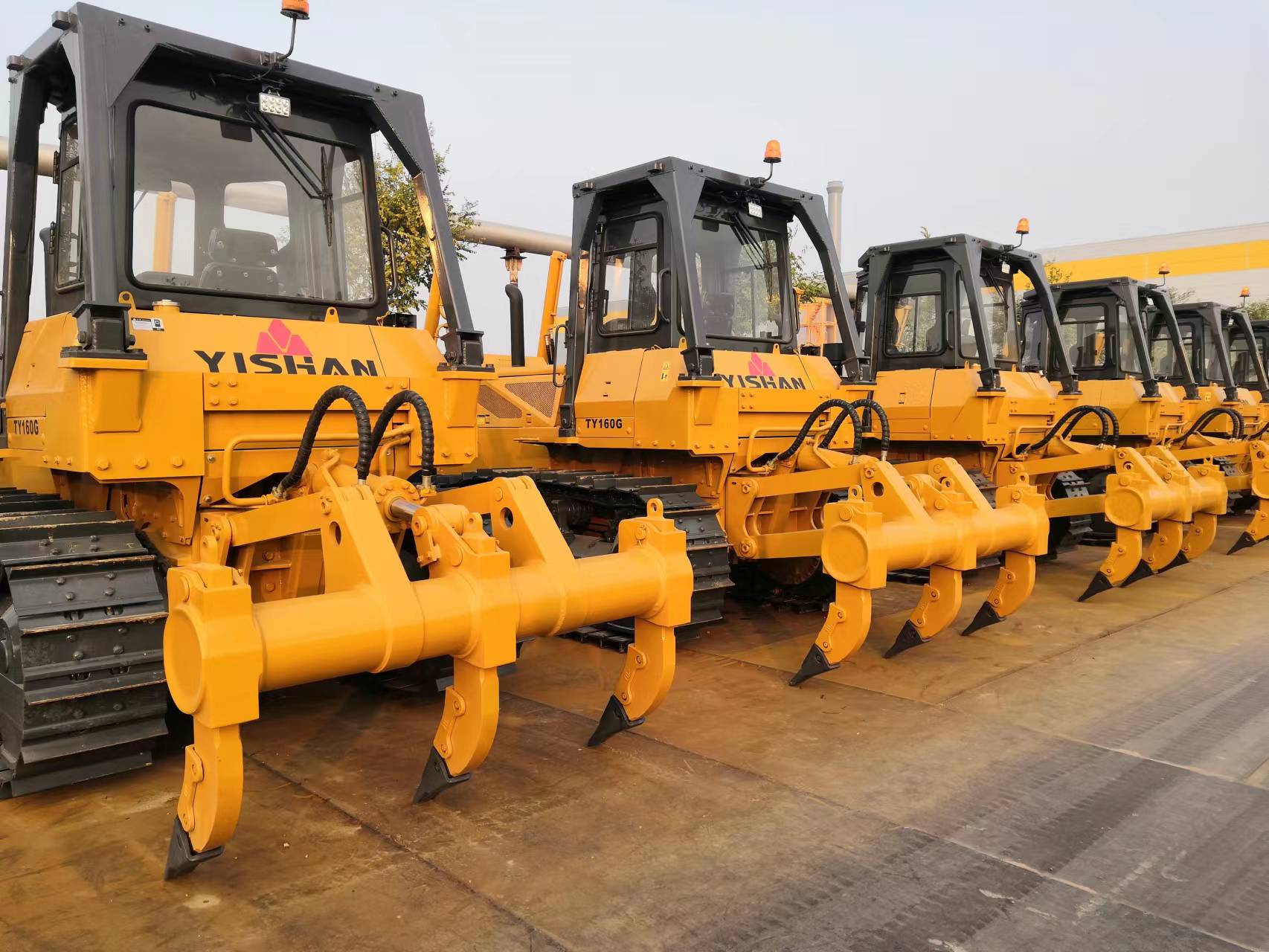

T160H Crawler Bulldozer Truck Construction Bulldozer Truck

The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.

The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.

The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding.

Engine

 WP10G178E355

Rated power (Kw/rpm)

131/1850

Fuel consumption(g/KwH)

≦ 215

Max torque (NM/rpm)

830/1150

Min.ground radium(m)

 3.1

Grade ability(°)

 30

Max.drawbar pull(KN)

 144
Operation weight(Kg) 15738

Forward(Km/H)

2.7/3.7/5.4/7.6/11

Reverse(Km/H)

3.5/4.9/7.0/9.8

Ground contact length (mm)

 2430

Shoe width (mm)

 510

Ground pressure (Kpa)

 63

Min.ground clearance (mm)

 400

Overall dimensions L×W×H (mm)

5125*3416*3190

Blade dimensions W×H (mm)

3416*1149

Blade digging angle(°)

 55

Blade max.tilt adjustment (mm)

 860

Blade max.ground clearance (mm)

 1095

Blade max.digging clearance(mm)

 532

Blade capacity (M³)

 4.5

Working efficiency (for 40m moving) (M3/h)

 255

System pressure (Mpa)

 13.7

1. Warranty time is 12 months.

2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.

3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
