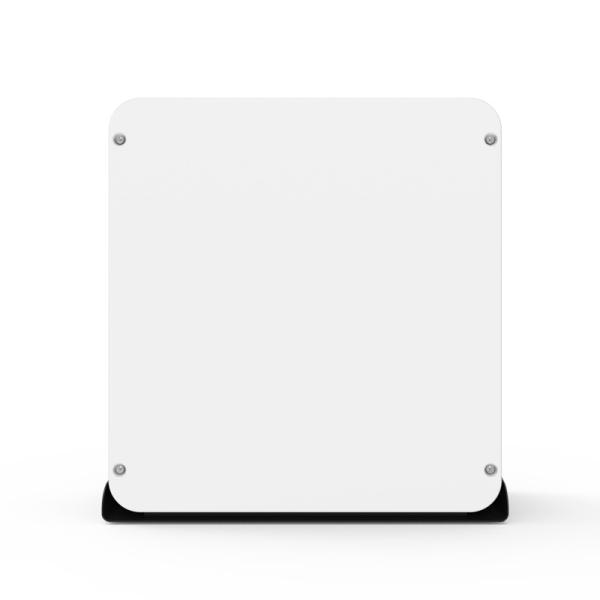

Powerwall mini 48V 50Ah Lithium Ion Batteries For Home Energy Storage Wall-mounted UN38.3, CE, TUV
Powerwall mini 48V 50Ah Lithium Ion Batteries For Home Energy Storage Wall-mounted UN38.3, CE, TUV
Powerwall mini 48V 50Ah Lithium Ion Batteries For Home Energy Storage Wall-mounted UN38.3, CE, TUV
Powerwall mini 48V 50Ah Lithium Ion Batteries For Home Energy Storage Wall-mounted UN38.3, CE, TUV
Specifications
Place of Origin :
China
Brand Name :
HECO
Certification :
CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001
Model Number :
Powerwall mini
MOQ :
10 pcs
Price :
Negotiable
Packaging Details :
1 pcs/wooden case
Delivery Time :
Sample: within 15 days; bulk order:25~60 days, based on the order quantity
Payment Terms :
T/T (30% advance payment, 70% balance payment to deliver the goods);Western Union, Paypal
Supply Ability :
2000 pcs/ month
Voltage :
48V
Capacity :
50Ah
Dimension :
574*228*600mmmm
Weight :
44kg
Use :
Solar Energy System, home energy storage
Warranty :
10 years
Description

Quick details:

1. Easy to install: plug and play

2. High safety: LiFePO4 chemistry and smart BMS to protect the whole battery

3. Wide compatibility: matching with most leading inverters of different brands

4. Long warranty period of 10 years

5. Full certificates approved by UN38.3, CE, TUV, IEC, etc

Description:

Powerwall mini series is smallar in height than Powerwall series. The height is 600mm. It has two capacity versions, 50Ah and 100Ah, that is 2.4KWh and 4.8KWh.

Specifications:

Model Powerwall mini
Battery Chemistry LiFePO4
Battery Module M4850
Nominal Voltage 48V
Module Qty 1 module 2 modules
Nominal Capacity 50Ah 100Ah
Nominal Energy 2.4kWh 4.8kWh
Max Output Power 2.4kW 4.8kW
Weight 44kg 65kg
Size 574*228*600 mm
Working Voltage 42~54℃
Operating Temp. Range -20~50℃
Communication CAN/RS485
Certification CE/CEI 0-21/UN38.3/MSDS/ISO 9001
Cycles Life 6000 Cycles
Scalabilitty Up to 4 units in parallel
The charge rate 0.5C
The discharge rate 0.5C
Protection Level IP65
Compatible Inverters Goodwe/Victron/Imeon/Solis/Luxpower/Voltronic/Deye/SAJ Etc.
Color White, Silver, Yellow (Customized)
Alarms Overcharge / Overdischarge / Overcurrent / Overtemperature / Short Circuit
Pros Can be used in both off-grid and hybrid setups, compact design, modular expansion
Monitoring & Protection Each module has BMS, breaker embedded in system
OEM/ODM Warmly Welcomed
Warranty 10 Years

Powerwall mini 48V 50Ah Lithium Ion Batteries For Home Energy Storage Wall-mounted UN38.3, CE, TUV

Powerwall mini 48V 50Ah Lithium Ion Batteries For Home Energy Storage Wall-mounted UN38.3, CE, TUV

Company advantages:

1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
