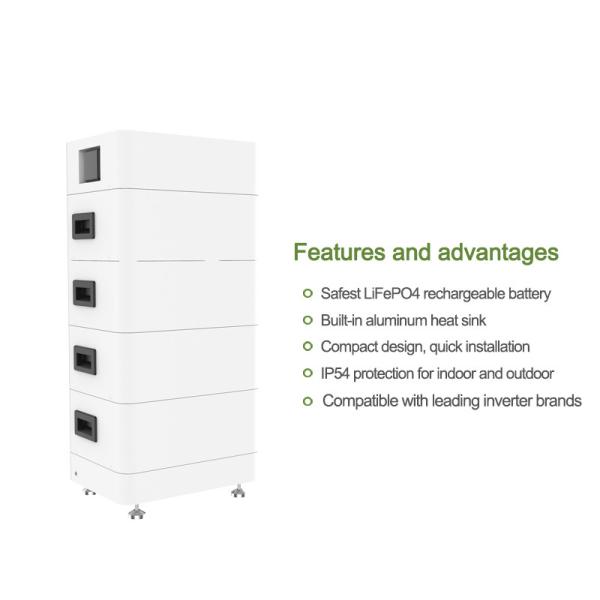

20KWH 576V 37AH LiFepo4 Battery Bank For Home Energy Storage With Stackable Modules
20KWH 576V 37AH LiFepo4 Battery Bank For Home Energy Storage With Stackable Modules
20KWH 576V 37AH LiFepo4 Battery Bank For Home Energy Storage With Stackable Modules
20KWH 576V 37AH LiFepo4 Battery Bank For Home Energy Storage With Stackable Modules
20KWH 576V 37AH LiFepo4 Battery Bank For Home Energy Storage With Stackable Modules
20KWH 576V 37AH LiFepo4 Battery Bank For Home Energy Storage With Stackable Modules
Specifications
Place of Origin :
China
Brand Name :
HECO
Certification :
MSDS,UN38.3, CE, TUV
Model Number :
Powertower
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
1 unit/wooden case
Delivery Time :
Sample: within 25 days;bulk order:25~60 days, based on the order quantity
Payment Terms :
T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability :
1000 units/ month
Battery Type :
LiFePO4
Battery volt :
576V
Battery capacity :
37AH
Energy :
21.31KWh
Colour :
White
Dimensions :
504*380*1500mm
Weight :
269kg
Description

Quick detail:

1. High safety: LiFePO4 chemistry (instead of Tesla NCA chemistry) is much safer and longer in cycle life

  • High intelligent: smart BMS can communicate via CAN communicate protocol with inverter
  • Deep cycle: 90% DOD is acceptable

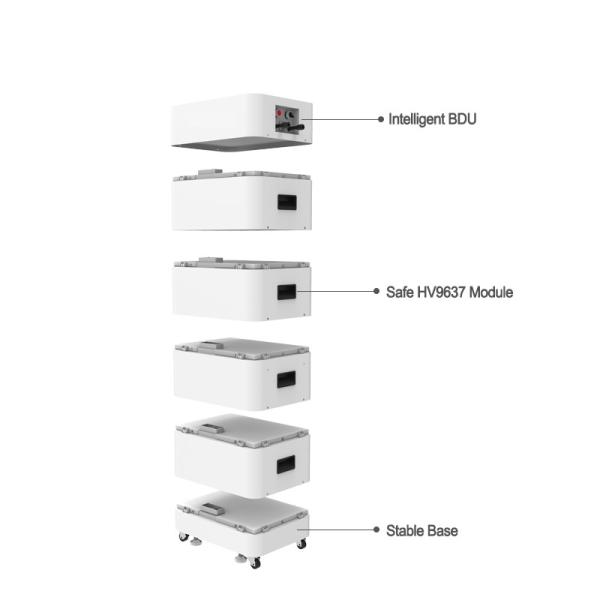

  • Easy installation and expansion: Stackable modules are easy to assemble and extend the capacities
  • UN38.3, CE, UL certified

Description:

Powertower series is composed of 2~6 pcs of 96V 37AH battery modules in series. It is high voltage version. High voltage has smallaer energy lost and higher transfer efficiency. The energy range is from 7KWh to 21KWh which can meet the needs of most households.


Specifications:

Item Parameters
Battery Chemistry LiFePO4
Product Model Tower T7 Tower T10 Tower T14 Tower T17 Tower T21
Battery Module M9637
Module qty 2 3 4 5 6
Nominal Energy 7.10 kWh 10.66 kWh 14.20 kWh 17.76 kWh 21.31 kWh
Nominal Capacity 37Ah
Nominal Voltage 192V 288V 384V 480V 576V
Net Weight

105kg

231 lbs

146kg

321 lbs

187kg

412 lbs

228kg

502 lbs

269kg

593 lbs

Dimension/mm

/inch

700*504*380

27.6*19.8*14.9

900*504*380

35.4*19.8*14.9

1100*504*380

43.3*19.8*14.9

1300 *504*380

51.2*19.8*14.9

1500 *504*380

59.1*19.8*14.9
Cycle Life 6000+ Cycles
Protection Level IP54
Charging Temp. Range 0~50 ℃
Discharging Temp. Range -10~50 ℃
Internal Battery Module High Voltage 9637
Communication CAN
Certification CE / CEI 0-21 / UL / UN38.3 / MSDS / ISO 9001
Compatible Inverters Goodwe / Victron / Imeon / Solis / Luxpower / Growatt / Voltronic / Deye / SAJ Etc.
OEM/ODM Warmly Welcomed
Warranty 7 & 10 Years


20KWH 576V 37AH LiFepo4 Battery Bank For Home Energy Storage With Stackable Modules20KWH 576V 37AH LiFepo4 Battery Bank For Home Energy Storage With Stackable Modules20KWH 576V 37AH LiFepo4 Battery Bank For Home Energy Storage With Stackable Modules


Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.

Tag: 20KWh home energy storage battery, 20KWh home lithium battery
