Specifications
Place of Origin :
China
Brand Name :
HECO
Certification :
CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001
Model Number :
HC-ESL-48F300-B
MOQ :
10 units
Price :
Negotiable
Packaging Details :
wooden case
Delivery Time :
Sample: within 25 days; bulk order:35~60 days, based on the order quantity
Payment Terms :
T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
Supply Ability :
1000 packs/ month
Nominal Volt :
48V
Nominal Capacity :
300AH
Dimensions :
610*580*715mm or customized design
Weight :
160kg

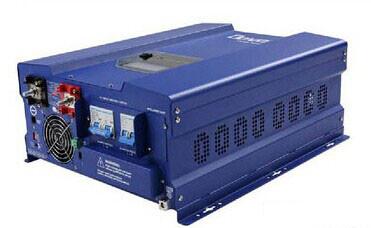

Output Watts of Hybrid inverter-charger :
5.76KW
Application :
Backup power supply, Solar energy storage system
Description


48Volt 300AH Energy Storage Lithium Battery , 15KWh LiFePO4 Battery Bank For Backup

Quick Detail:

With the emergence of solar, wind power and other new energy sources, the development of intelligent grid technology as well, large -scale energy storage station is becoming to meet peak power allocation. HECO is developing he environmental-protection lithium-ion energy storage battery with the lightest, fast charge and discharge, cycle file more than than 10,000 times to meet the future demand of energy storage stations and new energy vehicle charging stations. HECO strives to become an advanced enterprise in the energy storage battery industry field.
HECO 12V &24V standard lithium ion battery with excellent safety,high energy density, cell voltage detection, which could be connected with BMS to monitor the matter as well, which is most suitable for energy storage battery.


Description:


48Volt 300AH Energy Storage Lithium Battery , 15KWh Off Grid Battery System


Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.
LiFePO4 battery replacing Lead acid battery is an inevitable trend.
Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.


Specifications:

MODEL# 48/15K-120/225 48/20K-120/225 48/25K-120/225
DATASHEET
Intergrated PCM/BMS BMS in, with display panel
Output Capacity(Wh), D0D=80% 15K 20K 25K
Nominal voltage (V) 48 48 48
Nominal capacity (Ah) 300 400 500
System configuration

300x1 battery
+ 1 host BMS

400x1 battery
+ 1 host BMS

500x1 battery
+ 1 host BMS

Dimensions (L*W*H in mm) 610*580*715 770*580*715 930*580*715
Constant charge/ discharge current (A) 120 120 120
Maximum charge/ discharge current (A) 225 (3 minutes) 225 (3 minutes) 225 (3 minutes)
Standard Charge Voltage (V) 58.4 58.4 58.4
Discharge cut-off voltage (V) 50.4 50.4 50.4
Approx. Weight (Kg) 150 200 250
WORKING CONDITION Operating temp. : -20 ~ 60℃
Humidity : max 95%
ENCLOUSURE
Common characteristics Material : Iron
Colour : Black or Ivory White
Battery connector Anen Connector
or according to customers' requirement
STANDARDS
Safety EN61000-6-1, EN61000-6-3

48Volt 300AH Energy Storage Lithium Battery , 15KWh LiFePO4 Battery Bank for Backup

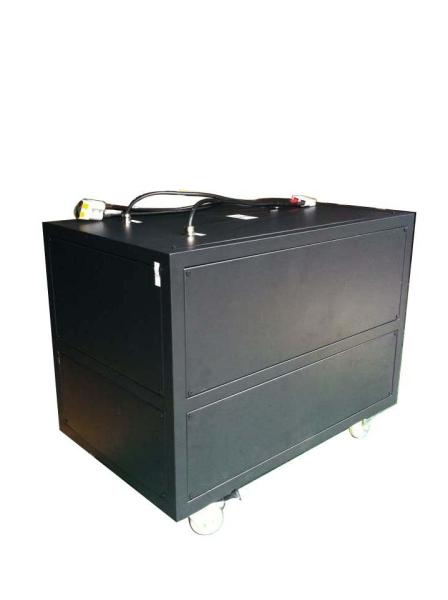

48V 300AH LiFePO4 Battery Bank

Product advantages:
1. Long cycle life (1200 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.

Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.

Tag:15KWh solar energy storage lithium battery, 48V 300ah lithium battery bank, 48V solar energy storage battery
