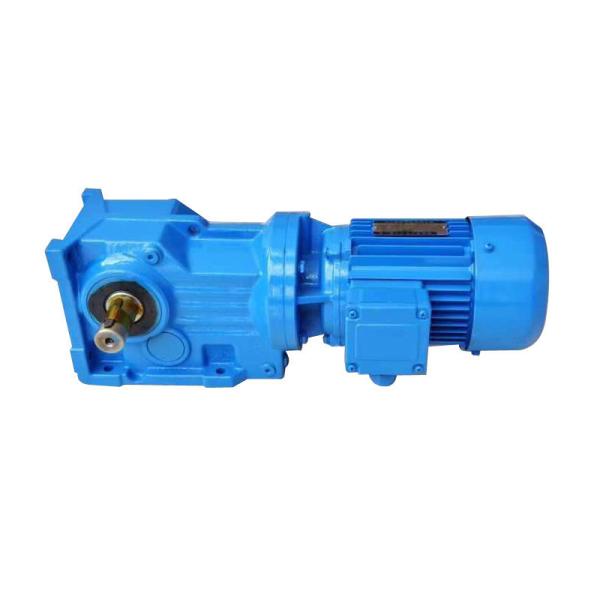

Transmission Helical Bevel Worm Gear Speed Reducers For Electric Motors
Helical reducer has the features of high versatility, good combination and heavy loading capability, along with other merits such as easy to attain various transmission ratios, high efficiency, low vibration and high permissible axis radial load. This series can not only be combined with various kinds of reducers and variations and meet the requirements, but also advantage of localization of related transmission equipment.
Specifications:
1) Output speed: 0.6~1,028r/min
2) Output torque: up to 18,000N.m
3) Motor power: 0.18~160kW
4) Mounted form: foot-mounted and flange-mounted mounting
Product Name
|
SLR Series Rigid Tooth helical reducer
|
Gear Material
|
20CrMnTi
|
Case Material
|
HT250
|
Shaft Material
|
20CrMnTi
|
Gear Processing
|
Grinding finish by HOFLER Grinding Machines
|
Color
|
Customized
|
Noise Test
|
Bellow 65dB
|
We are offerings series helical-worm geared motor
Gear type | Helical Gear |
Gear & Gear Shaft Material | 20 CrMnTi |
Gear hardness | HRC58~62 |
Solid & Hollow shaft material | 42CrMo |
Housing material | HT250 High-strength Cast Iron |
Gear precision | DIN6 |
Bearing | C&U ,HRB ,NSK, LYC ,ZWZ |
Oil Seal | NAK Brand VITON or NBR |
Warranty | 1 Year |
The features of R Series Foot Mounted Speed Reducer
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor
R Series Helical Gear Reducer
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ
Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
