Oil - Water Mixed Potato Chip Fryer Equipment Stainless Steel 3500*1200*2400mm
Oil - Water Mixed Potato Chip Fryer Equipment Stainless Steel 3500*1200*2400mm
Oil - Water Mixed Potato Chip Fryer Equipment Stainless Steel 3500*1200*2400mm
Oil - Water Mixed Potato Chip Fryer Equipment Stainless Steel 3500*1200*2400mm
Oil - Water Mixed Potato Chip Fryer Equipment Stainless Steel 3500*1200*2400mm
Oil - Water Mixed Potato Chip Fryer Equipment Stainless Steel 3500*1200*2400mm
Oil - Water Mixed Potato Chip Fryer Equipment Stainless Steel 3500*1200*2400mm
Oil - Water Mixed Potato Chip Fryer Equipment Stainless Steel 3500*1200*2400mm
Specifications
Brand Name :
GELGOOG
Model Number :
GGF-3500
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden packing as export standard
Machine Name :
Automatic Potato Chips Fryer Machine
Heating Energy :
Electric heating
Capacity :
300 kg/h
Weight :
800 kg
Size :
3500*1200*2400mm
Power :
120 kw
Description

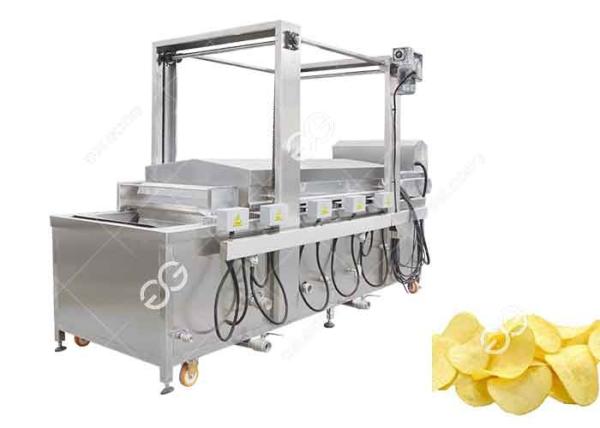

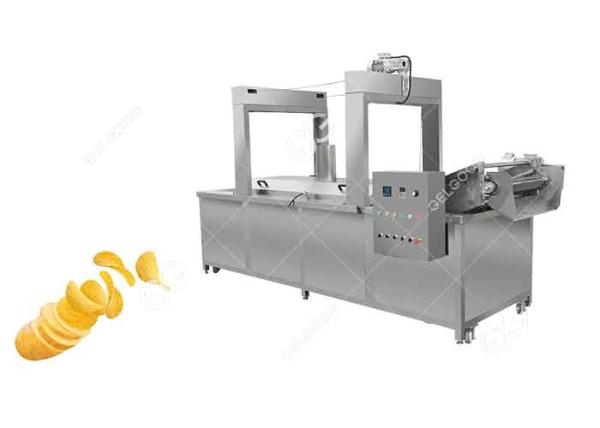

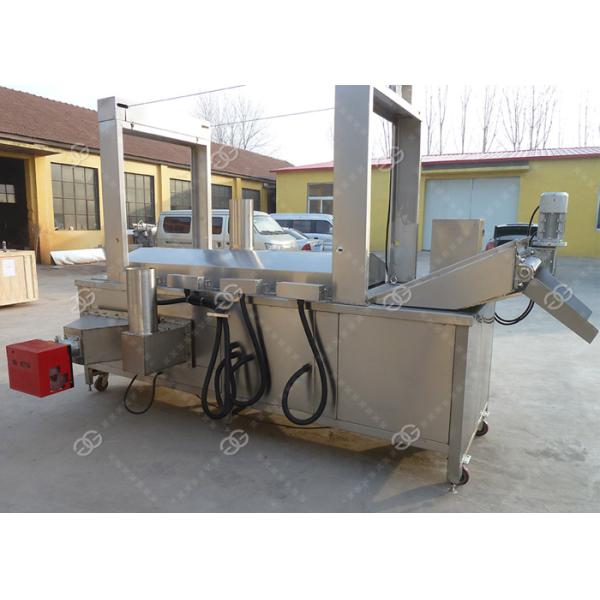

Automatic Oil-water Mixed Peanut Potato Chips Frying Fryer Machine Price

Automatic Potato Chips Frying Machine Features:

First, pot body part of Automatic Potato Chips Frying Machine
1. The pan adopts 3mm stainless steel plate and its material is 304.
2. The shell of the pan adopts 1.2mm stainless steel plate and the material is 304, cold forming
3. Water leakage test after pot body welding to ensure no leakage.
4. The main material of the pot is 304 stainless steel and other materials that are in line with the food industry.
5. Aluminum silicate board insulation material between the pot body and the shell is 60mm thick.

Second, mesh belt and mesh belt bracket part of Automatic Peanut Fryer Machine
1. The belt transmission speed adopts frequency conversion speed control.
2. The drive motor adopts two layers of upper and lower transmission synchronous control respectively, and the power of the transmission motor is 0.75KW.
3. Mesh belt parameters: Total mesh belt width 800mm, mesh wire diameter 2.33mm, mesh wire center distance 10mm, edge width 10mm, 9 sections. The material is 304.
4. The mesh belt bracket is made of 4mm stainless steel cold-bend butt joints, and the material is 304.
5. The hood and belt bracket can be independently raised for easy cleaning.
6. Bearings and bearing seats are stainless steel.
7. Upper and lower mesh belt gap 80mm for frying space.

Technical Parameter of Automatic Potato Chips Fryer Machine

Model GGF-3500
Capacity 300 kg/h
Dimension 3500*1200*2400mm
Weight 800 kg
Power 120 kw

Oil - Water Mixed Potato Chip Fryer Equipment Stainless Steel 3500*1200*2400mm
