500 KG Industrial Nut Butter Grinder Peanut Butter Processing Line Machine Fully Automatic

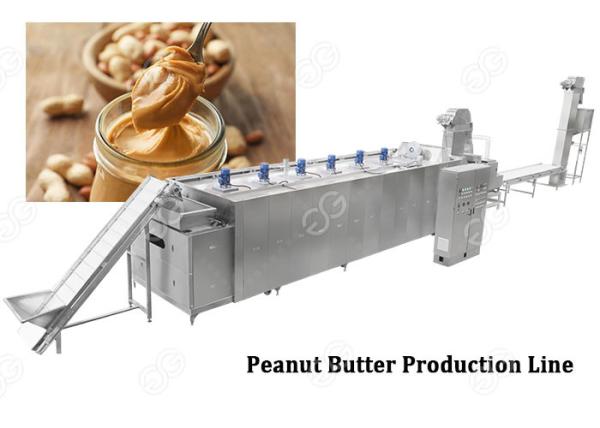

This automatic peanut butter production line include the peanut roaster, peanut dry peeling machine, automatic feeding machine, grinding machine, vacuum degassing machine, cooling machine and so on. It has the characteristics of high mechanization degree, good reliability, full closed production and no pollution.

Automatic Peanut Butter Processing Line Process:

Elevator -- Roasting -- Conveyor Belt -- Cooling -- Peeling -- Selecting -- Peanut Butter Grinding -- Storage Tank -- Mixing Cooling -- De-gasing -- Storage Tank -- Liquid filling machine

• Roasting: batch roaster’s working temperature is 0-300 Cº within 20-30minutes. The batch roaster will bake some delicious smells.
• Cooling: Peanut will be send cooling belt to cool.
• Peeling: put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece.
• Selecting Conveyor Belt: the peanut kernel and skins are picked up by mechanical.

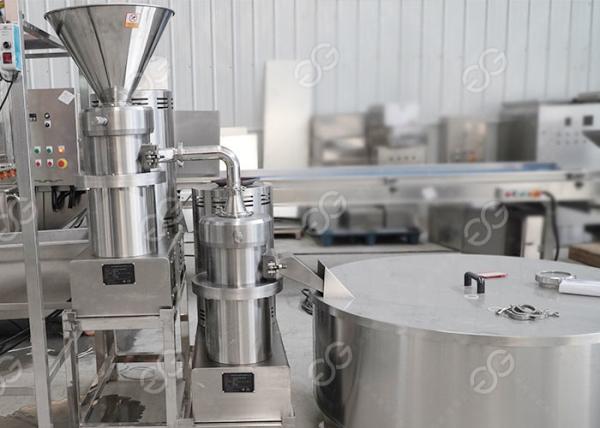

• Grinding: Using steel grinder to make the first grinding; Using colloid grinder to make the second grinding;
• Cooling Mixing: make the butter more homogeneous and the butter through second grinding should be cooled immediately. The temperature should go down 45C.
• Vacuum Tank: Short time storage and take out the air from peanut butter
• Storage Tank: settling down in the storage tank till the temperature drop to air temperature.

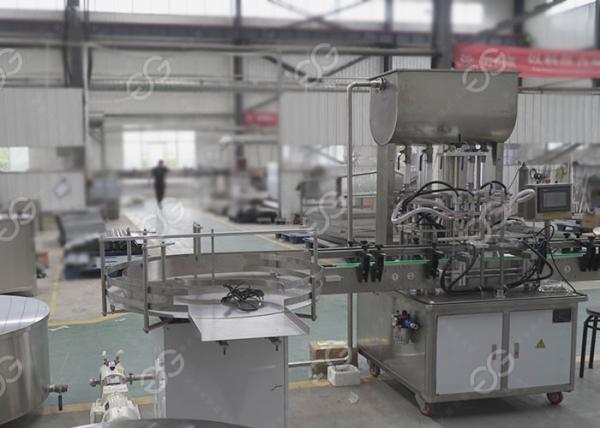

• Filling machine: Automatic filling machine, the finished peanut butter is packed into bottle.

This peanut butter processing machine can produce natural peanut butter, stable peanut butter, smooth type peanut butter, salty peanut butter, sweet peanut butter, particle type peanut butter and so on, it also can produce the tahini and walnut butter.

Notes:

1. Workshop requirements: ≥150㎡

2. we can design 100kg/h, 200kg/h, and 500kg/h peanut butter production line according to our customer needs.

3. need workers about 3-5 person.

Parameter of Automatic Peanut Butter Processing Line:
