100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer
100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer
100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer
100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer
100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer
100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer
100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer
100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer
Specifications
Brand Name :
Harvest
Model Number :
3 line 6 axles
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 units/month
Delivery Time :
15 days
Packaging Details :
nude package
Size :
13000*3000*1650mm
Max Payload :
120 ton
Axles :
FUWA
Ladder :
Mechanical
Landing Gear :
28 ton
King pin :
2" or 3.5"
Suspension :
mechanical
Tire :
12.00R20/12R22.5
Description

Heavy Duty Lowbed Lowboy 100ton 120ton 3 Line 6 Axles Lowbed Semi Truck Trailer

Application: it can be used to transport non-detachable objects especially construction machines such as excavators, loaders, bulldozers.

Type:semi-trailer, material: steel, size:13000*3000*1650mm

• Finite Element analysis used in vehicle to promote product performance.

• Strong Loading Capacity 30-100 Tons

• High Stength full thickness Steel,titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.

• 42 tough ribs design, Ensure the safety and carrying capacity of trailer.

• Uniquely designed low-load platform provides lower transport center of gravity and smoother transportation.

• Lowbed Trailer Main Parts Warranty Period Reach 24 Months.

Packaging: nude package
Shipping: 40ft container, bulk cargo, ro-ro ship
Port: Qingdao, Tianjin, Lianyungang, Shanghai

Specification

Dimension
13000*3000*1650mm
Axle
FUWA ,YAHUA or BPW Brand
Suspension
Mechanical or air supension (American or German)
Rim
6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20
King Pin
JOST 2" or 3.5" traction pin
Support legs
JOST, FUWA or YAHUA brand 28T
Wheelbase
7180/6680/6260+1310+1310mm
Steel Spring
8/8/8, 10/10/10, 12/12/12 pieces per axle
Ladder
Manual or hydraulic automatic
Electrical system
24V, 7 pin socket, One set 7-core standard Cable
Tire
8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20
Spare Tire Carriers
2 pieces
The material of Main beam
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm;
Material is Q345 Carbon Steel.
Side beam
16mm-25mm channel steel (Material is Q235 carbon steel)
Platform plate
5/6/7 mm Diamond Plate
Brake
Kemi Brand of China
Brake Chamber
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks
ABS system
optional
Light
Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box
1 sets(waterproof type)
Spare tire carrier
1 sets(Patent type)
Painting
Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint
Packing
Polish with wax before shipping

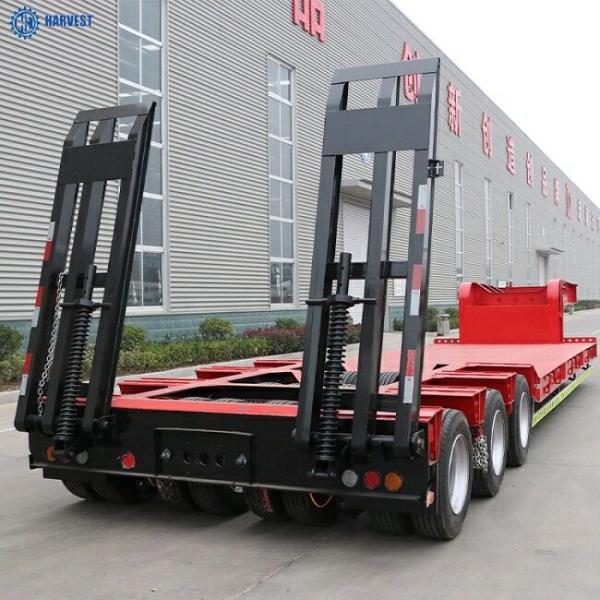

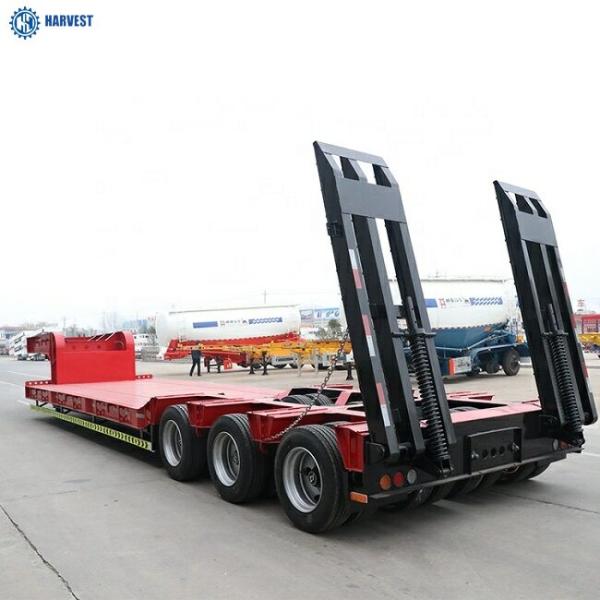

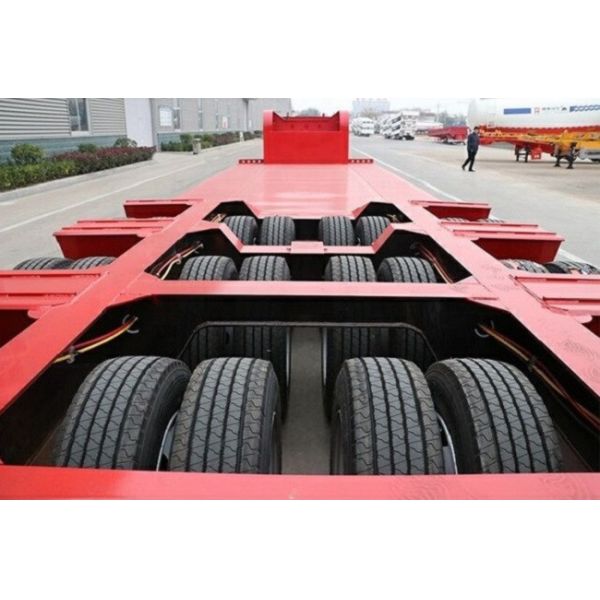

Lowbed Pictures

100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer100ton 120ton Harvest Lowbed 3 Line 6 Axles Heavy Duty Semi Trailer
