Specifications
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining
Showroom Location :
Canada, United Kingdom, United States, Germany
Place of Origin :
China
Brand Name :
PAIBO
Model Number :
PB-300
Type :
Solar Panel
Warranty :
1 Year
Production Capacity :
300KG/H
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2024
Warranty of core components :
1 Year
Core Components :
Pressure vessel, Motor, Other, PLC, Pump, Engine
Weight (KG) :
7500 kg
Application :
Green Gnergy
Product name :
Solar Photovoltaic Panel Recycling Machine
Keywords :
Solar panel recycling machine
Usage :
Mono Solar Panels Recycling
Advantage :
High Separator Rate 99%
Capacity :
200-1000kg/h
Function :
Solar panel Recycling
Raw material :
Waste Solar Panel ,PVE and PV Modules Recycler
Key Words :
Waste Solar Panel Cell Photovoltaic
Name :
Solar Photovoltaic Panel Recycling Machine
Packaging Details :
Film package
Supply Ability :
60 Set/Sets per Month
Price :
negotiable
MOQ :
1
Delivery Time :
35
mob :
0086-17398977463
contact :
sale@paibomac.com
tel. :
0086-17398977463
Description
Product Description
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
Photovoltaic Solar Panels Recycling Machine
Waste solar photovoltaic panels The main components of photovoltaic modules are aluminum frame, glass, cell, EVA film, and backplane. Among them, the main component of glass is silica, and the secondary components are soda ash, limestone, magnesium oxide, alumina, mirabilite, and carbon; EVA is mainly ethylene-vinyl acetate copolymer; the core components of the battery are mainly monocrystalline silicon and Polysilicon; the main material of the frame is metal aluminum; the back plate is composed of two layers of PVF film and one layer of PET film. More than 90% of these materials can be recycled.
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell

Solar Panel Structure: Aluminium Frame--Tempered Glass---Encapsulant- EVA---Solar cells---Encapsulant - EVA---Back
Sheet---Junction Box
We can Recycle Metal(Copper, Silver etc), Silicon, Plastic and Glass from the Whole Process.
In view of the current problems in the recycling of solar panel materials, we have developed a large-scale solar photovoltaic panel recycling equipment that is non-toxic, high in separation efficiency, low in cost, and easy to handle in terms of process flow, which has important application value and academic significance. The photovoltaic panel processing equipment extracts silicon powder, copper powder and plastic with high market value through physical crushing and sorting. There are generally three main steps for the recycling of photovoltaic modules: first, disassemble the modules by machine or manually, and remove the backplane, wires and aluminum frames; the second step is to remove the tempered glass; the third step is to disassemble the remaining components. The panels are crushed and sorted to extract metals and plastics.
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell

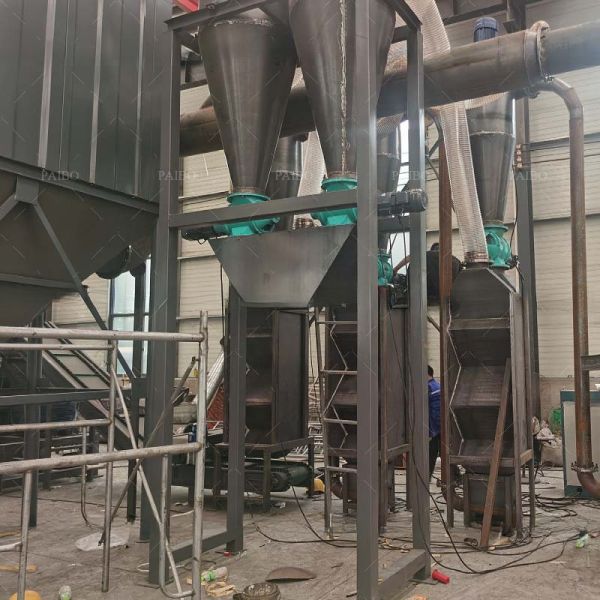

The scrapped photovoltaic panels enter the shredder for shredding, and the shredded materials enter the special shredder for shredding; Disperse the EVA film and the monocrystalline silicon wafer. The dispersed material enters the collector through the induced draft fan, and then is sorted to obtain silicon. The remaining mixed materials enter the special crusher, and then enter the airflow sorting screen through the air closer, and collect the positive metal and plastic through the airflow and vibration, and collect the dust generated by the airflow sorting machine at the same time.
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
Features:
1. Using crushing and sorting technology to realize the reuse of solar panels.
2. Compact structure, reasonable layout, stable performance and low noise.
3. The waste photovoltaic panel recycling and processing equipment adopts PLC to control the entire production line to feed
materials evenly and coordinate operation.
4. The efficiency of the pulse dust removal equipment is as high as 99%, and the dust can be volatilized effectively, which
fully meets the environmental protection requirements "Comprehensive Emission Standard of Air Pollutants
Processable raw materials: used to process various waste solar photovoltaic panels, photovoltaic modules, etc., extract the metals
inside, and reuse resources. The equipment can recycle 95% of the material in crystalline silicon photovoltaic panels, and it is
specially designed to deal with "crystalline silicon" photovoltaic panels that have reached the end of their life. A typical
crystalline silicon solar panel is made of 65-75% glass, 10-15% aluminum frame, 10% plastic and 3-5% silicon. The photovoltaic panel recycling equipment dismantle, sort, process and recycle 98% of its materials.
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell

Finished products that can be processed: After the sorted materials are processed and packaged, they will be sent to different
industries for reuse. Two-thirds of glass is recycled as cullet, which is sent to the glass manufacturing industry; aluminum
frames are sent to aluminum refineries; waste plastics can be used as fuel in cement plants; and recycled silicon can be recycled
in the precious metals industry. Utilize; leftover cables and connectors are crushed and sold as copper beads.
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell

Most materials of waste photovoltaic modules can be recycled. Although the silver, aluminum, tin and other metals contained in them are small in content, they have high recycling value. Using waste photovoltaic panel crushers and waste photovoltaic panel crushing equipment production lines can process the dismantling of power stations Components, dismantling of photovoltaic power generation panels, cells, silicon wafers, monocrystalline skins, monocrystalline silicon, polycrystalline skins, primary polycrystalline, polycrystalline square ingots, re-doped silicon materials, etc. to achieve the sorting process and results.
Model
Power (Kw)
Capacity (Kg/H)
Dimension (m)
PB-P300
102
200-300
20*5*5
PB-P500
134
400-500
25*6*5
PB-P800
194
600-800
30*6*5
PB-P1000
238
800-1000
35*8*5
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
High Processing Rate Lithium Ion Battery Recycling Machine for Waste Solar Panel Cell
