100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
Specifications
Place of Origin :
China
Brand Name :
PAIBO
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2024
Warranty of core components :
1 Year
Core Components :
PLC
Warranty :
1 Year
Power (kW) :
3.7
Weight (KG) :
800
Key Selling Points :
Competitive Price
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Energy & Mining
Showroom Location :
Canada, Germany, Viet Nam
Product name :
Electrical sorter Electrostatic Separator
Recovery rate :
95%-98%
Usage :
separate metal and non-metals
Application :
Metal separation,metal recycling
Dimension :
1380*1750*3500mm
Type :
electrostatic separator equipment
Capacity :
100-150kg/h
Power :
4kw
Feature :
1000 High voltage electronic sorting
Used for :
aluminum and plastic recycling electrostatic separator
Price :
negotiable
MOQ :
1
Packaging Details :
Film package
Delivery Time :
35
mob :
0086-17398977463
contact :
sale@paibomac.com
tel. :
0086-17398977463
Description


99.9% separation rate Electrostatic Separator Equipment

100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic

Application Areas:
The waste aluminum-plastic crushing and sorting equipment is a device that completely separates the aluminum-plastic composite
material into aluminum and plastic. The raw materials come from the corner scraps of pharmaceutical factories, aluminum-plastic
board factories, food and beverage plants and other aluminum foil packaging industries, waste soft bags, capsule plates and
toothpaste skins in waste stations.
Aluminum plastic separation machine is more and more popular in recent years because it is a environmental recycle machine.

Aluminum plastic separation machine adopts fully-dry type physical method to separate the scrap,which replace the traditional fire burn, water wash and landfill process methods, so there is no pollution to the environment.
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic

Working principle of Electrostatic Separator Equipment

Electrostatic separator , electrostatic sorting machine is a product exclusively developed by our plant. It is a dry-type equipment which performs separation in high-voltage corona field based on the difference of materials in electric performance. It is suitable to mechanical pilot feeder of fine powder. Heating device is installed inside the separation drum. It features in wide range of electric field, powerful electric strength, stable electromechanical performance, high efficiency and low energy consumption.
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic

Application of Electrostatic Separator Equipment

Electrostatic separator electrostatic sorting machine can put the gold, more than 99% of the waste copper, aluminum and other metal and plastic separated. Electrostatic separator can be used for aluminum plate, PCB, waste wire and cable, aluminum conductor and sand separation and non conductor


The aluminum plastic separation machine could separate aluminum and plastic from medical blister packs, scrap aluminum plastic foil, aluminum plastic composite panel, or other kinds of raw materials are made by aluminum and plastic which the percentage of aluminum isn’t less than 20%.

The process of aluminum plastic separation machine as blow:

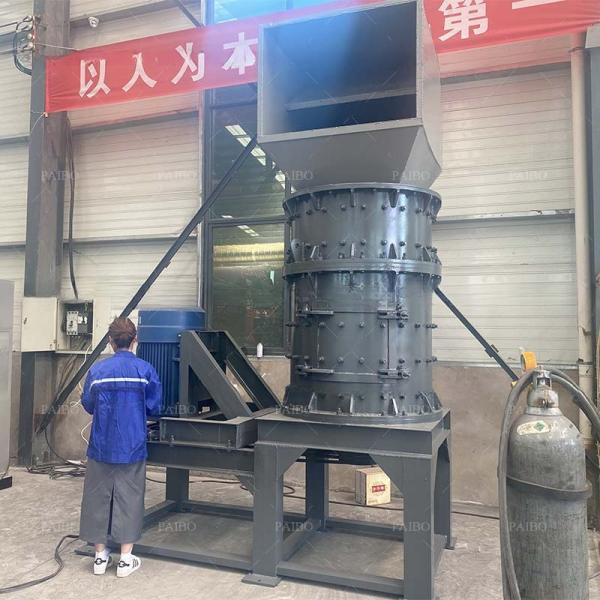

1.Crusher machine -crush the raw material to be small pieces.

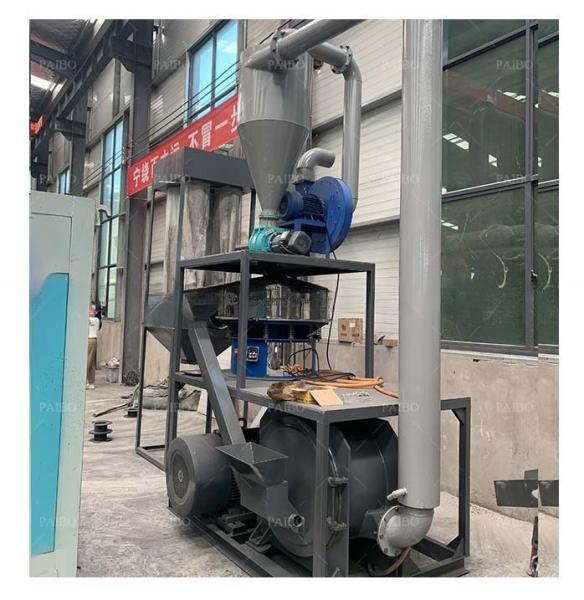

2.Grinding machine -grind the raw material to be granules or powder.
Technical Parameters of Electrostatic Separator Equipment
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
Detailed Image
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
Dust separation plant for the Electrostatic Separator Equipment
Electrostati precipitator, Dust separation is a kind of gas dust removal method. Dust-containing gases are electrically separated when passing through a high-voltage electrostatic field. After the dust particles combine with negative ions and become negatively charged, they tend to be discharged and deposited on the anode surface. It is used to purify gas or recover useful dust particles in metallurgy, chemical and other industries.

Application Engineering for the plant.
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic

01 How to get to know the machine very well?
Machine'Solution from our chief engineer, based on your rawmaterials,final product, and other detailed requirements from you.Supporting customization, Voltage changing, Plug type to fit foryour local. etc.Providing Machine video and photo give youdirect feeling about our machine

02 How to pay?
Usually Half as deposit,half as balance or full paymentBy TT,L/C,Western Union,Paypal,VISAMASTECARDE-CHECKING By Trade assurance paying online inUSD OR CNY
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
Trade Assurance protects your order safety in the event of a supplier failing to meel your contractrequirements on order quantity, product quality, and on-time shipment.
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
100-150kg/h Capacity Aluminum Plastic Separation Machine for Recycling Waste Plastic
