Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Specifications
Condition :
New
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Uk
Place of Origin :
Henan, China
Brand Name :
Recycle
Model Number :
RSK-PCB200
Type :
E waste PCB Boards Recycling Machine
Warranty :
1 Year
Production Capacity :
150-1000KG/H
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Hot Product 2021
Warranty of core components :
1 Year
Core Components :
Motor, Engine
Weight (KG) :
3000 kg
Name :
Factory Customized Complete Line for Processing PCB Motherboards
Key Words :
PCB Motherboards Recycling Line
Final product :
Metal and Non Metal
Advantage :
Harmless
Raw material :
Pcb Board, TV boards, Computer Motherboards etc
Application :
E Waste Treatment
Certification :
CE Certificate
Feature :
High Recovery Rate
Color :
Customerized
Capacity :
150-1000 Kg/h
Price :
$41,600.00/sets >=1 sets
Description

Motherboard Refining System Circuit Board Stripping Machine E Waste PCB Board Recycling Machine
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment


Product Application
E-waste PCB Recycling Plant is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials.
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment

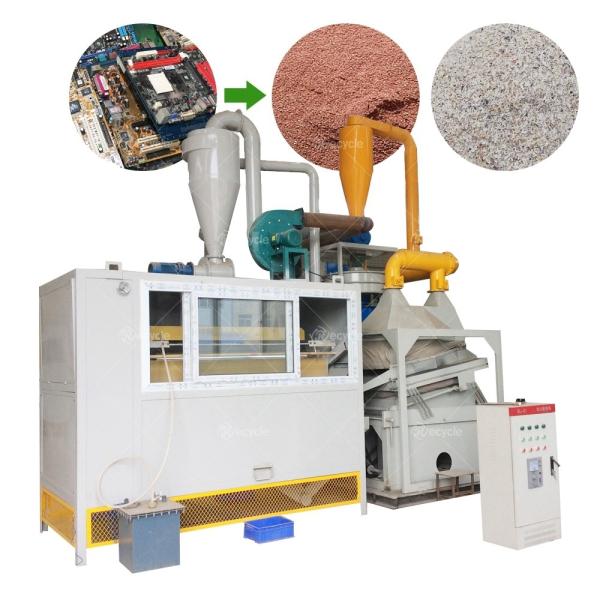

Final Products


Because of the high value of the metals, fiber and resin, there is no doubt that this plant not only help to change waste into treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can reach to 99%.
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment

Technical Parameters
Model
Power (Kw)
Weight (Ton)
Capacity (Kg/H)
Dimension (m)
RSK-PCB300
102
15
200-300
20*5*5
RSK-PCB500
134
20
400-500
25*6*5
RSK-PCB800
194
30
600-800
30*6*5
RSK-PCB1000
238
40
800-1000
35*8*5
NOTE:

Working voltage:380±10V(415V ,440V also can be customized)

(If you want more detailed parameters and quotations, please contact us)

Product Structure
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment

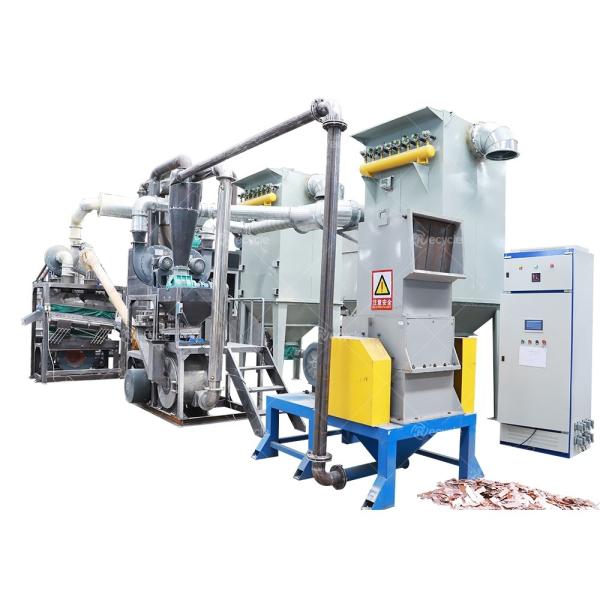

The E-Waste PCB Recycling Plant consists of shredding system, milling system, sorting system and dust collection system, the whole process is controlled by PLC.
Through shredding, grinding, vibration screening, (the incompletely separated metal and nonmetal will reentry into the grinding machine to be grinded again) gravity separating, electrostatic separating and pulse dust collecting, the metal and nonmetal will reach about 99% of separation, eventually get metal and non-metallic collective, and the valuable components after dismantling machine can also be recycled refined.
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Process Description

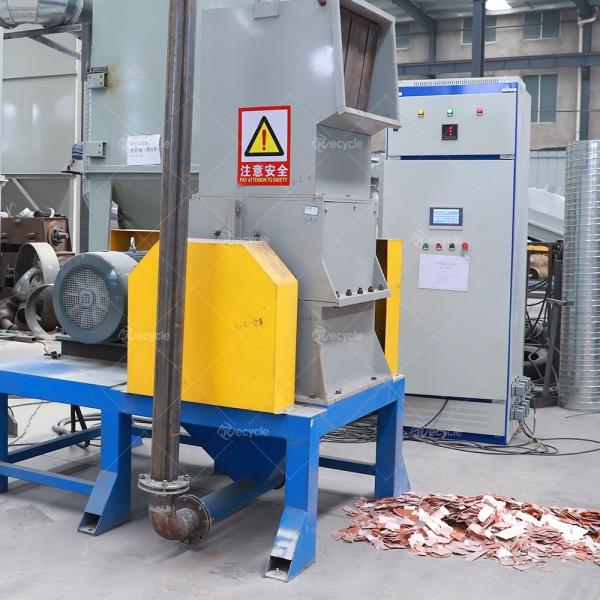

The first crushing machine we choose the double shafts shredder, and the second crushing machine we use the hammer crusher, and the third crushing machine we use the high speed turbine grinding machine, the material after shredding, crushing and grinding will be separated by the air separator and the electrostatic separator.

It has the advantages of unique structure, large output and power saving. Several machines cooperation work after single loading of materials. Controlled by PLC This machine has good performance in copper recycling and comes with a device to prevent against secondary pollution The metal recycling rate is up to99% which is the only in china.

Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment


Product Features

1. Suitable structure and layout, stable performance and recycling water is used to control temperature and reduce noise in the grinder;

2. E-waste PCB Recycling Plant adopts PLC system, electrostatic separator makes higher and quicker separation, moreover gets more non-ferrous metal;

3. The negative pressure feeding system prevent the dust from running out, the separation rate of pulse dust cleaning device can reach 99%;

4. The separation rate of air separator can reach 97%, with the magnetic separator, the iron can be separated from other metals.
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment

Related Configuration
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment

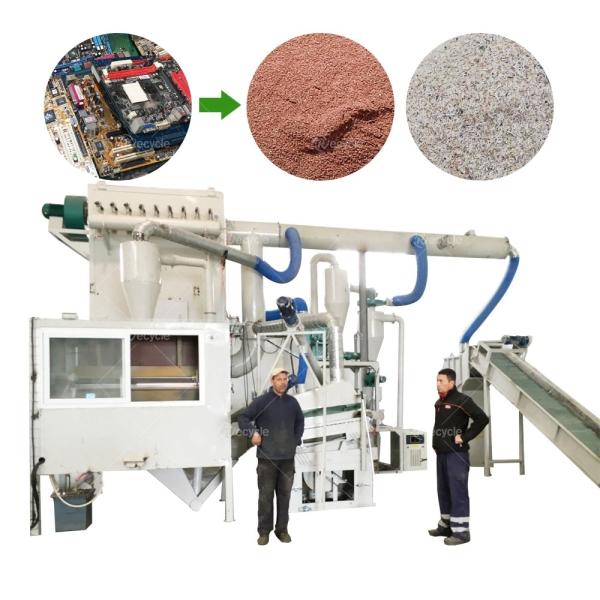

Customer Site
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Company Show
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
Motherboard Refining System Circuit Board Stripping Machine and for E Waste Treatment
