100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
Specifications
Condition :
New
Applicable Industries :
Machinery Repair Shops, Home Use, Construction works
Showroom Location :
France, Spain
Place of Origin :
Henan, China
Brand Name :
Recycle
Model Number :
RSKPCB-300
Type :
Waste PCB Recycling Machine
Warranty :
1 Year
Power :
120, 100-300KW of the Pcb Board Recycling Machine
Material :
Container
Production Capacity :
300KG/H
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Weight (KG) :
15000 kg
Application :
PCB Waste Treatment
Raw material :
Computer Or Phone Board
Capacity :
200-1000 kg/h of the Pcb Board Recycling Machine
Color :
Blue of the Pcb Board Recycling Machine
Certification :
CE ISO of the Pcb Board Recycling Machine
Name :
Pcb Board Recycling Machine
Product name :
Eps Waste Mdf Small Pcb Board Recycling Machine
Function :
Non-metal and Metal separation
Weight :
15t-40t of the Pcb Board Recycling Machine
Packaging Details :
Waste Small Pcb Board Recycling Machine will be packed in the standard wooden case or containers or as customer requirement
Port :
Qingdao Port or Other assigned Port
Supply Ability :
50 Set/Sets per Month
Price :
$70,000.00/sets 1-2 sets
Description

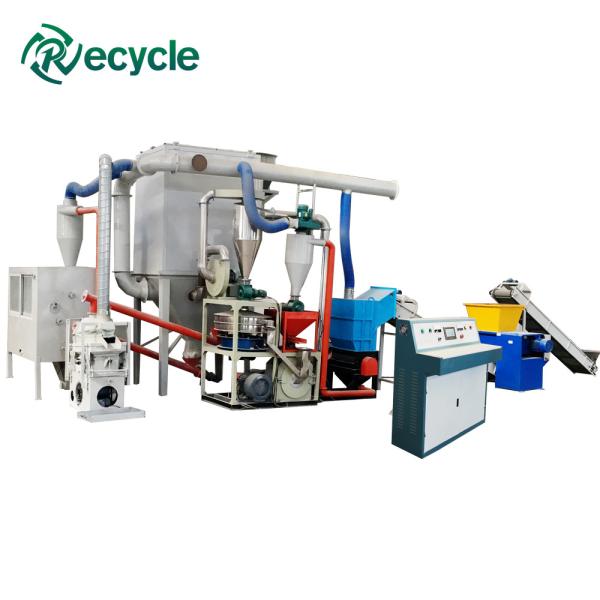

E-waste PCB Recycling Plant
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling


Product Application
E-waste PCB Recycling Plant is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials.
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling


Final Products


Because of the high value of the metals, fiber and resin, there is no doubt that this plant not only help to change waste into treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can reach to 99%.
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling

Technical Parameters
Model
Power (Kw)
Weight (Ton)
Capacity (Kg/H)
Dimension (m)
RSK-PCB300
102
15
200-300
20*5*5
RSK-PCB500
134
20
400-500
25*6*5
RSK-PCB800
194
30
600-800
30*6*5
RSK-PCB1000
238
40
800-1000
35*8*5
NOTE:

Working voltage:380±10V(415V ,440V also can be customized)

(If you want more detailed parameters and quotations, please contact us)

Product Structure
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling

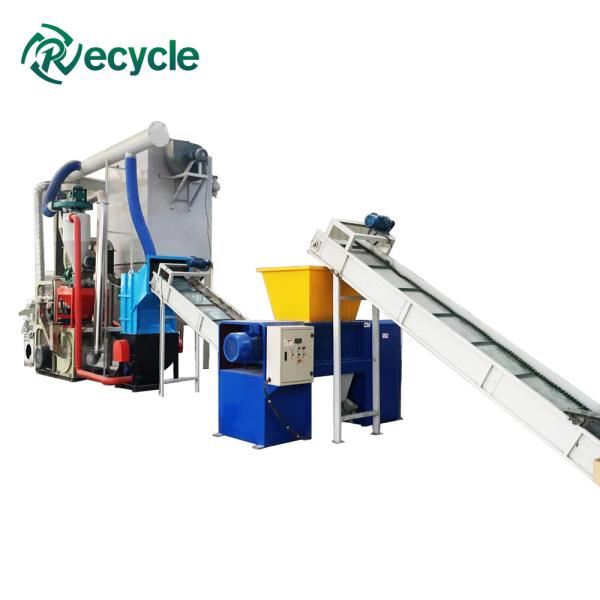

The E-Waste PCB Recycling Plant consists of shredding system, milling system, sorting system and dust collection system, the whole process is controlled by PLC.
Through shredding, grinding, vibration screening, (the incompletely separated metal and nonmetal will reentry into the grinding machine to be grinded again) gravity separating, electrostatic separating and pulse dust collecting, the metal and nonmetal will reach about 99% of separation, eventually get metal and non-metallic collective, and the valuable components after dismantling machine can also be recycled refined.
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
Process Description
The first crushing machine we choose the double shafts shredder, and the second crushing machine we use the hammer crusher, and the third crushing machine we use the high speed turbine grinding machine, the material after shredding, crushing and grinding will be separated by the air separator and the electrostatic separator.

It has the advantages of unique structure, large output and power saving. Several machines cooperation work after single loading of materials. Controlled by PLC This machine has good performance in copper recycling and comes with a device to prevent against secondary pollution The metal recycling rate is up to99% which is the only in china.

100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling


Product Features

1. Suitable structure and layout, stable performance and recycling water is used to control temperature and reduce noise in the grinder;

2. E-waste PCB Recycling Plant adopts PLC system, electrostatic separator makes higher and quicker separation, moreover gets more non-ferrous metal;

3. The negative pressure feeding system prevent the dust from running out, the separation rate of pulse dust cleaning device can reach 99%;

4. The separation rate of air separator can reach 97%, with the magnetic separator, the iron can be separated from other metals.
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling

Related Configuration
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling

Customer Site
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling

Customer Visiting
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
Quality Assurance
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
Company Show
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
100-300KW Pcb Board Recycling Machine for Environmentally Friendly Recycling
