30 x 40 ft Aluminum Structural Fire Proof Party Marquee Wedding Tent Glass Wall

Aluminum Frame Tent for Wedding / party/ Assembly / Other Activities

♣ DESCRIPTION

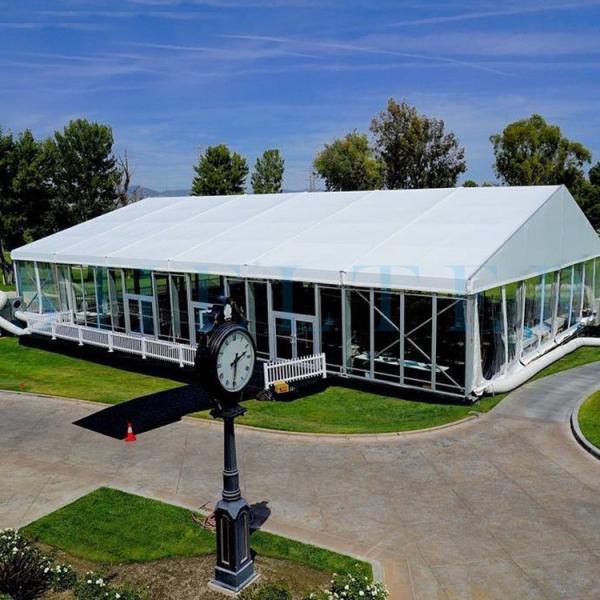

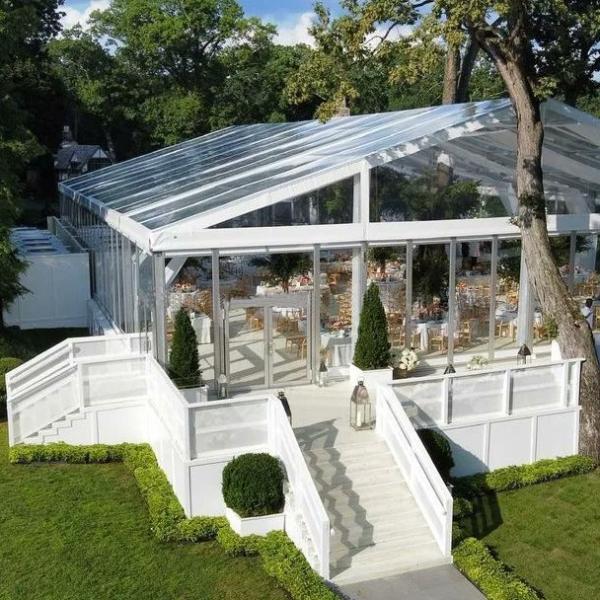

Luxury Aluminum Outdoor Glass Tent

Name: 30 x 40 ft Aluminum Structural Fire Proof Party Marquee Wedding Tent Glass Wall

Side Wall: Tempered transparent glass wall

Outer Cover Water proof Index:<3000mm

Feature: Water Proof / Fire Resistant/Wind Resisant / Snow Resistant

Service Life:More than 12-20 Years For Frame And 5-8 Years For The Cover.

Application:Wearhouse / Hospital/Wedding Party / Outdoor Event / Trade Show Event/Sports event.

Sizes are customized.Each tent can be customized to suit any application or need, from color and

printing to side walls and accessories, from aluminum alloy frames that are durable ,each tent is

waterproof and flame retardant.

• Details reveal quality

•

•

• 1) Width: from 3 meters to 50meters

• 2) Eave height: standard from 2.5m, 3m, 4m to 5m upon span width (or special height per requested)

• 3) Length: Unlimited, extended by 3m or 5m each bay

•

OPTIONAL ACCESSORIES

Windows: round and square clear PVC windows, glass window for glass wall.

Wooden flooring system: cassette flooring

Doors: double-swing glass door, single-swing glass door, glass fire door ,rolling shutter

Wall: soft polyester fabric wall, glass wall, hard wall, sandwich panel wall

Fixing way: ground anchors, weight plate, expandable screw.

Rain Gutter: inner roof beam rain gutter or rain gutter between two similar tents.

Other Optional Items: insulation ,table, chair, lighting, A/C, carpet, installation tools etc.

♣ MATERIAL DETAILS

Frame Material

Hard pressed extruded aluminum alloy,anodized surface handing,silver color,sturdy and never rust,over

15-20 years life span

Frame Material:Aluminum Alloy T6061/T6 hardness achieved 15 HW.The wind load capability is base on the aluminum hardness.

1) The main parts are made of aluminum alloy and the spare parts are made of steel.

2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.

Cover Material

Fabric cover:High quality double PVC-coated polyesster cextile,100% waterproof,flame retardant to

DIN4102 B1,M2,CFM,UV resistant,tear resistant, self-cleaning ability,etc.

Roof Cover Material:950g/Sqr transparent PVC Fabric

Our PVC fabric flame retardant according to German standard DIN4102 B1,M2,and USA standar

CFM/NFPA 701

Side Cover Material:

(1)650g/sqm double coated pvc, translucent, waterproof , flame retardant meet M2, B1, DIN4102 standard

(2)950g/sqm transparent pvc fabric

(3)solid walls: glass panel, sandwich panels, ABS panels, color steel sheet

Application of The Medium-Sized Outdoor Tent

This tent could be widely used for medium-scaled events such as assembly, wedding,party,catering and other purpose, about 100-200 people.

Such tent is easy to assemble and disassemble.We will supply installation manual and vedio.

If necessary,we can send a technician to guide the instalation .

About package and transport

♦ 1:All steel structure should packing by air bubble filmplastic protect, because the steel structure easily scratches without protection packing.
♦2:All fabric should packing by palstic bag , protect cleaning
♦3:Steel structure loading by top open container. lightly and slowly hang into container.

FAQ

Q1: Are you factory?
A:Yes, we are factory, we have 15 years work experience.

Q2: How can I calculate the tent size I need?
A:Usually we need to determine tent usage. If the tent with tables and chairs in it,one person need 1.5

square meters.If tent without tables,one person need 1 square meter.

Q3.Does your company accept customized tent?
A:Yes, we can make the tent according to customers different need. Customized sizes are acceptable.

Q4. Does your company provide any help to install the tent?
A:Yes, usually we will send manual guide books or Video to help customer installation.If customer need

our engineer come to their country to help install,that is also workable.

Q5: Does your tent install repeatedly?
A:Yes, Our tents can be assembled and dismantled and repeatedly.They installed sections by sections,

Aluminum structure can be used for 25 years,PVC fabric can be used for 8-10 years.

Q6. Can I visit your company ?
A: Yes,sure,welcome.We are in Guangzhou which is near the Baiyun Airport. When you arrive at the airport,

we will pick you up.
