Specifications
Brand Name :
Hengnuo
Model Number :
Dome Tent-06
Certification :
SGS, CE,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 19- USD 35 Per Square Meter
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
12000 pcs per month
Delivery Time :
3-7 days for 1-30 sets.
Packaging Details :
Geodesic dome tent package 1. galvanized steel packed in membrane film 2. roof in professional PVC carry bag
Frame material :
Hot-dip galvanized steel pipe
Roof cover :
850g/sq.m white PVC + 950g/sq.m clear PVC
Temperature resistance :
-30 degree Celsius ~ +70 degree Celsius
Size :
Diameter 3m-diameter 50m
Wind Load :
120km/h
Snow load :
75kg/sq.m
Accessories :
Insulation /Partition board / curtain / solar fan / interior floor/all-in -one bathroom,and so on
Application :
Accommodation/ Party/ outdoor event
Cover material :
Double-Coated PVC
Description

High Quality Comfort Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

Our eco-friendly dome tents can be setup in any location with minimal impact on the surrounding environment. The are designed to run completely off grid with a solar powered ceiling fan and wood stove, but can also be wired with electricity if you prefer. All of the Backcountry Recreation Geodesic Domes are built with high quality materials and components and should last over 15 years if it is looked after well. We also carry spare PVC Covers in stock in case of emergencies.

Name High Quality Comfort Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping
Brand Name Hengnuo
Certificate ISO 9001:2008 / SGS / CE
Size Diameter: 3-50m
Frame Material Galvanized steel tube
Cover Material 850g/sq.m PVC Fabric,Black-out + 950g/sq.m transparent PVC
Outer Cover Water proof Index <3000mm
Feature Water Proof / Fire Resistant/Wind Resisant / Snow Resistant
Service Life More than 12-20 years for frame and 5-8 years for the cover.
Application Accommodation / Catering / Party
Wind Load 100km /h,can be reinforce
Snow Load 75kg/sqm

The frames are made of hot-dip galvanized steel and stainless steel pipe.The life span is baout 15-20years,

The cover is made of double-coated PVC. Available in multiplet colors.It can be used around 5-8 years.

The features of pvc cover is fireproof (DIN 4102 B1, M2), wateroof and UV-resistance.

Product Description

Our Geodesic Domes have a strong structure which is constructed by a quality iron pipe with hot galvanized surface. It can withstand heavy snow and high winds. The dome cover is made of a waterproof, UV-protected, and fire retardant white PVC.

Specification:from diameter 5m to 10m (pupolar size)

Size

(Diameter)

Ridge Height

(m )

Area

(sqm)

Weight

(KG)

Frame pipe Diameter
5m 2.95 m 19.6 220 KG Φ 26x2mm
6m 3.5 m 28.26 m² 280 KG Φ 26x2 mm
7m 3.9 m 38.5 380 KG Φ 26x2 mm
8m 4.8 m 50.24 460 KG Φ 32x1.5mm
9m 5.4 m 63.6 480 KG Φ 32x1.5 mm
10m 6 m 78.5 500 KG Φ 32x1.5 mm

Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

You can design the tent to the comforts of your own home. Please note that the tent does not come furnished and can be decorated and furnished with your own unique flare and style. You can read more about what is included below.

- - - - Product show - - - - -

Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

Item name High Quality Luxury Hotel Decoration Igloo Geodesic Dome Tent For Outdoor Event Camping
Main Profiles Material:White painted Hot-dip Galvanized Steel Tube
Features:Stainless
Cover Density: 850g/sqm double coated blockout white PVC + 950g/sqm transparent PVC
Color: Choose from our color card
Meterial: PVC coated polyester fabric
Features: Waterproof,fireproof,UV-resistance,mildew proof,self-cleaning ability.
Components Hot-dip Galvanized Steel
Allowed temperature condition -30 degree Celsius~+70 degree Celsius
- - - - - Accessories - - - - -

Windows: round / triangle / square PVC window.

round / triangle / square glass window.

Wooden flooring system: scassette flooring. 9mm PU foam and 10mm wooden floor.

Doors: double-swing glass door, single-swing glass door, PVC door

Heat insulation: 8mm or 12mm thickness insulation, PU leather cover heat insulation.

Ventilation :Cat-ear ventilation window, solar fan

Shower room:1.2m*1.4m, 1.2m*1.7m, 1.2m*1.9m

Floor : Grade E1 laminate floor

Exhaust fan: solar exhaust fan,silent exhaust fan.

Other Optional Items: table, chair, lighting, A/C, partition, all-in-one bathroom,bathroom cabinet,toilet,

stove,chimney,installation tools etc.

Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

Usually a complete tent including these below:

● Frame. Galvanized steel. Powder-coated white.

● Outside cover. Available in multiplet colors.

● Inside cover: 8mm or 12mm cotton insulation.

● Heavy duty anchor plates are included to secure the tent to a concrete or wooden surface. Galvanized steel. Powder-coated white.

● Solid door frame ready for a 36x80" pre-hung exterior door. Galvanized steel. Powder-coated white.

● Skylight roof.

● Round / triangle / square PVC window with mesh screen vents.

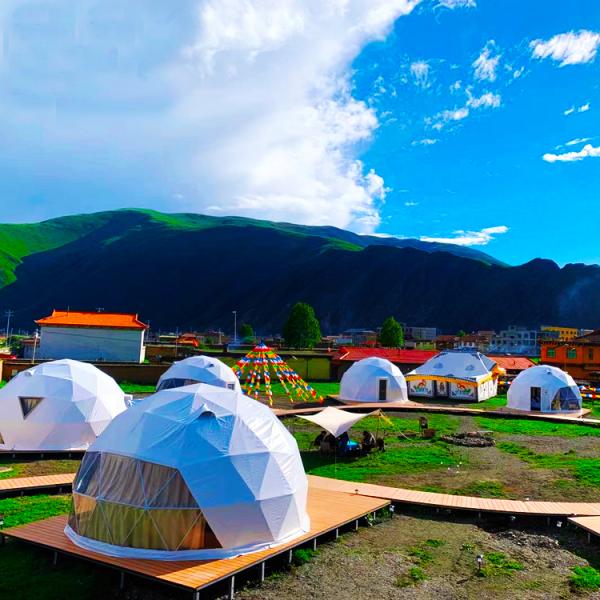

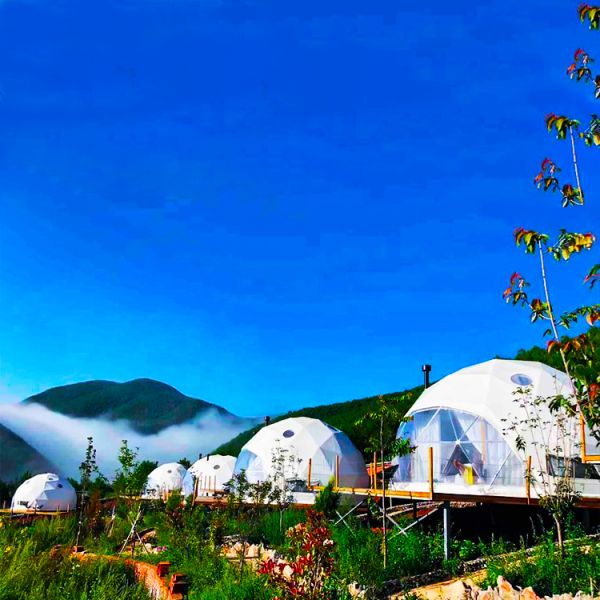

- - - - - Successful case - - - - -

Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

DOME PLATFORM:

We recommend building dome platforms in a circular or 15-sided (pentadecagon) shape that is close to the geodesic dome base shape and size. This is necessary to prevent rain water or meltwater from getting under the cover inside the dome. In this case, the water runs down off the cover directly onto the ground.

-The dome tent is easy and fast to assemble and dismantle. We will offer the installation manual and video.

Hemispherical Hotel Living Geodesic Dome Tent For Outdoor Camping

Our tents are easy to assemble and disassemble.We will supply installation manual and vedio

after delivery.

If necessary,we can send a technician to guide the instalation .

Packaging & Shipping

Packing way

Packing:

Type A: (for free)

1.The hot-dip galvanized steel tubes are packed in air bubble plastic film, to avoid scratch

2.The covering fabric is packed in professional PVC zipper carry bag, to keep clearn.

3.Hardware and other accessories are packed in other PVC zipper bag

Type B: (extra fee)

All packed in the plywood box each set.

(If the tent is too big, typeA will be more suitable.)

  • OUR ALL TENT STYLE

We produce aluminium A frame tent, pagoda tent, geodesic dome tent, curve tent, polygonl tent,high peak mixed tent, multi side tent, hexagonal pagoda tent, etc.
