Specifications
Brand Name :
HRHD
Model Number :
TR2508
Certification :
ISO， CE
Place of Origin :
China
MOQ :
1
Price :
20-50
Payment Terms :
Western Union, T/T
Supply Ability :
20000pcs/month
Delivery Time :
10-20 days
Packaging Details :
Pallet, Carton
Raw material :
Carbon steel
Painted :
based on customers' requirements
Pressure :
2500PSI-5000PSI
Drawing :
Can be provided
Delivery time :
7-35days
Warranty period :
One year
Description

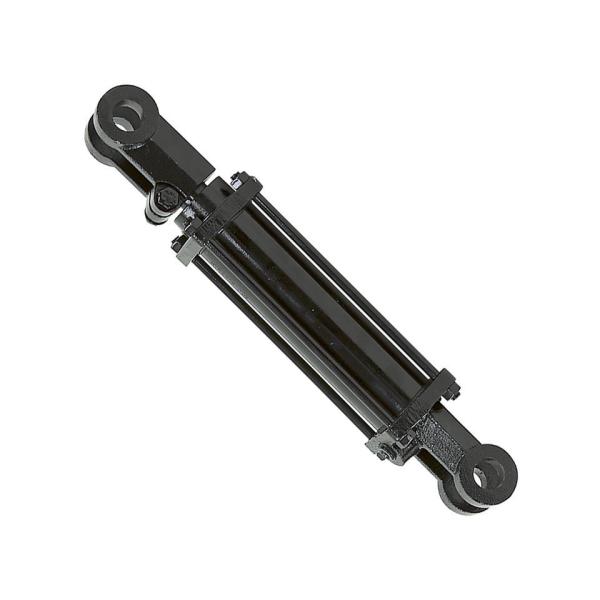

3000PSI TR2508 double acting farm use tie rod hydraulic cylinder with 2.5 inch bore 8 inch stroke

Our Company Advantages:

1. ISO 9001 MANUFACTURER

2. 20 YEARS HYDRAULIC PRODUCTS EXPERIENCE

3. SHORT DELIERY TIME

4. PROFESSIONAL DESIGNER

5. WE ARE FACTORY, WE CAN CONTROL THE BEST QUALITY, WE ALSO HAVE BEST PRICE, AND BEST SERVICE


3000PSI Tie-Rod Cylinder
BORE:2.0", 2.5", 3.0", 3.5", 4.0",5.0''
ROD:1.125" ~ 2.0"
STROKE:4.0" ~ 48"
*Standard North American Design.
*Superior Corrosion Resistance.
*3/7 Years Limited Warranty.
*3000PSI Working Pressure. 4500PSI Testing Pressure.
SPECIFICATION(mm)
MODEL Bore x Stroke (inch.) Shaft Dia. (inch.) Center to center of pin (inch.) Ports (NPTF) Ports thread (SAE) Weight (lbs)
retracted extended
CY2008TR-ASAE 2 x 8 1 1/8 20 1/4 28 1/4 3/8 9/16-18UNF(SAE 6#) 18.7
CY2508TR-ASAE 2 1/2x8 1 1/8 20 1/4 28 1/4 3/8 9/16-18UNF(SAE 6#) 22.0
CY2516TR-ASAE 2 1/2x16 1 1/8 31 1/2 47 1/2 3/8 9/16-18UNF(SAE 6#) 29.7
CY3008TR-ASAE 3 x 8 1 1/4 20 1/4 28 1/4 1/2 3/4-16UNF(SAE 8#) 28.6
CY3016TR-ASAE 3 x 16 1 1/4 31 1/2 47 1/2 1/2 3/4-16UNF(SAE 8#) 33.9
CY3508TR-ASAE 3 1/2x8 1 1/4 20 1/4 28 1/2 1/2 3/4-16UNF(SAE 8#) 31.2
CY3516TR-ASAE 3 1/2x16 1 1/2 31 1/4 47 1/2 1/2 3/4-16UNF(SAE 8#) 36.9
CY4008TR-ASAE 4 x 8 1 1/2 20 1/4 28 1/4 1/2 3/4-16UNF(SAE 8#) 38.5
CY4016TR-ASAE 4 x 16 2 31 1/2 47 1/2 1/2 3/4-16UNF(SAE 8#) 45.9
CY5016TR-ASAE 5 x 16 2 31 1/2 47 1/2 1/2 3/4-16UNF(SAE 8#) 97.8
Note: All 2" through 4" bore cylinders with 8" stroke are designed with the rod threaded to accommodate a stroke control collar per ASAE specifications.
MODEL Bore x Stroke (inch.) Shaft Dia. (inch.) Center to center of pin (inch.) Max.rated psi & column load on full extension Weight (lbs)
retracted extended PSI lbs.
CY2004TR 2 X 4 1 1/8 14 1/4 18 1/4 Full PSI 7854 15.6
CY2006TR 2 X 6 1 1/8 16 1/4 22 1/4 Full PSI 7854 16.5
CY2008TR 2 X 8 1 1/8 18 1/4 26 1/4 Full PSI 7854 17.8
CY2010TR 2 X 10 1 1/8 20 1/4 30 1/4 Full PSI 7854 20.0
CY2012TR 2 X 12 1 1/8 22 1/4 34 1/4 Full PSI 7854 21.0
CY2014TR 2 X 14 1 1/8 24 1/4 38 1/4 Full PSI 7854 22.0
CY2016TR 2 X 16 1 1/8 26 1/4 42 1/4 Full PSI 7854 22.9
CY2018TR 2 X 18 1 1/8 28 1/4 46 1/4 Full PSI 7854 24.0
CY2020TR 2 X 20 1 1/8 30 1/4 50 1/4 Full PSI 7854 24.9
CY2024TR 2 X 24 1 1/8 34 1/4 58 1/4 *2180 6850 27.0
CY2030TR 2 X 30 1 1/8 40 1/4 70 1/4 *1500 4700 34.9
CY2036TR 2 X 36 1 1/8 46 1/4 82 1/4 *1090 3430 39.9
CY2504TR 2 1/2 X 4 1 1/8 14 1/4 18 1/4 Full PSI 12272 18.0
CY2506TR 2 1/2 X 6 1 1/8 16 1/4 22 1/4 Full PSI 12272 19.0
CY2508TR 2 1/2 X 8 1 1/8 18 1/4 26 1/4 Full PSI 12272 20.9
CY2510TR 2 1/2 X 10 1 1/8 20 1/4 30 1/4 Full PSI 12272 22.0
CY2512TR 2 1/2 X 12 1 1/8 22 1/4 34 1/4 Full PSI 12272 24.0
CY2514TR 2 1/2 X 14 1 1/8 24 1/4 38 1/4 Full PSI 12272 24.9
CY2516TR 2 1/2 X 16 1 1/8 26 1/4 42 1/4 Full PSI 12272 27.0
CY2518TR 2 1/2 X 18 1 1/8 28 1/4 46 1/4 Full PSI 12272 27.9
CY2520TR 2 1/2 X 20 1 1/8 30 1/4 50 1/4 Full PSI 12272 29.9
CY2524TR 2 1/2 X 24 1 1/8 34 1/4 58 1/4 *2125 10435 32.9
CY2530TR 2 1/2 X 30 1 1/4 40 1/4 70 1/4 *1460 7175 44.9
CY2536TR 2 1/2 X 36 1 1/4 46 1/4 82 1/4 *1065 5232 56.0
CY3004TR 3 X 4 1 1/4 14 1/4 18 1/4 Full PSI 17672 22.9
CY3006TR 3 X 6 1 1/4 16 1/4 22 1/4 Full PSI 17672 24.0
CY3008TR 3 X 8 1 1/4 18 1/4 26 1/4 Full PSI 17672 26.0
CY3010TR 3 X 10 1 1/4 20 1/4 30 1/4 Full PSI 17672 28.0
CY3012TR-125 3 X 12 1 1/4 22 1/4 34 1/4 Full PSI 17672 29.0
CY3012TR-150 3 X 12 1 1/2 22 1/4 34 1/4 Full PSI 17672 31.7
CY3014TR-125 3 X 14 1 1/4 24 1/4 38 1/4 Full PSI 17672 31.0
CY3014TR-150 3 X 14 1 1/2 24 1/4 38 1/4 Full PSI 17672 34.1
CY3016TR-125 3 X 16 1 1/4 26 1/4 42 1/4 Full PSI 17672 34.0
CY3016TR-150 3 X 16 1 1/2 26 1/4 42 1/4 Full PSI 17672 37.3
CY3018TR 3 X 18 1 1/4 28 1/4 46 1/4 *2340 16560 34.9
CY3020TR 3 X 20 1 1/4 30 1/4 50 1/4 *1985 14025 36.9
CY3024TR-125 3 X 24 1 1/4 34 1/4 58 1/4 Full PSI 17672 40.9
CY3024TR-150 3 X 24 1 1/2 34 1/4 58 1/4 Full PSI 17672 46.2
CY3030TR 3 X 30 1 1/2 40 1/4 70 1/4 *2105 14880 58.9
CY3036TR 3 X 36 1 1/2 46 1/4 82 1/4 *1535 10855 67.8
CY3504TR 3 1/2 X 4 1 1/4 14 1/4 18 1/4 Full PSI 24053 24.0
CY3506TR 3 1/2 X 6 1 1/4 16 1/4 22 1/4 Full PSI 24053 25.9
CY3508TR 3 1/2 X 8 1 1/4 18 1/4 26 1/4 Full PSI 24053 27.8
CY3510TR 3 1/2 X 10 1 1/4 20 1/4 30 1/4 Full PSI 24053 30.0
CY3512TR 3 1/2 X 12 1 1/4 22 1/4 34 1/4 Full PSI 24053 33.0
CY3514TR 3 1/2 X 14 1 1/4 24 1/4 38 1/4 Full PSI 24053 34.9
CY3516TR 3 1/2 X 16 1 1/4 26 1/4 42 1/4 *2060 19840 35.9
CY3518TR 3 1/2 X 18 1 1/4 26 1/4 46 1/4 *1719 16539 39.9
CY3520TR 3 1/2 X 20 1 1/4 30 1/4 50 1/4 *1458 14028 41.9
CY3524TR 3 1/2 X 24 1 1/2 34 1/4 58 1/4 *2250 21645 50.9
CY3530TR 3 1/2 X 30 1 1/2 40 1/4 70 1/4 *1545 14880 60.9
CY3536TR 3 1/2 X 36 1 1/2 46 1/4 82 1/4 *1125 10850 68.9
CY4004TR 4 X 4 1 1/4 14 1/4 18 1/4 Full PSI 31416 30.0
CY4006TR 4 X 6 1 1/4 16 1/4 22 1/4 Full PSI 31416 32.0
CY4008TR 4 X 8 1 1/4 18 1/4 26 1/4 Full PSI 31416 35.0
CY4010TR 4 X 10 1 1/4 20 1/4 30 1/4 Full PSI 31416 37.9
CY4012TR 4 X 12 1 1/4 22 1/4 34 1/4 *2400 30195 40.9
CY4014TR 4 X 14 1 1/4 24 1/4 38 1/4 *1925 24210 42.9
CY4016TR 4 X 16 1 1/4 26 1/4 42 1/4 *1580 19840 44.9
CY4018TR 4 X 18 1 1/2 28 1/4 46 1/4 Full PSI 31416 48.9
CY4020TR 4 X 20 1 1/2 30 1/4 50 1/4 *2315 29085 52.9
CY4024TR-150 4 X 24 1 1/2 34 1/4 58 1/4 *1720 21645 60.9
CY4024TR-175 4 X 24 1 3/4 34 1/4 58 1/4 Full PSI 31416 62.9
CY4024TR-200 4 X 24 2 34 1/4 58 1/4 Full PSI 31416 65.0
CY4030TR 4 X 30 2 40 1/4 70 1/4 Full PSI 31416 86.8
CY4036TR 4 X 36 2 46 1/4 82 1/4 Full PSI 31416 108.0
CY4048TR 4 X 48 2 58 1/4 106 1/4 *1635 20560 150.0
CY5008TR 5 X 8 1 1/2 18 1/4 26 1/4 Full PSI 49088 73.3
CY5010TR-150 5 X 10 1 1/2 20 1/4 30 1/4 Full PSI 49088 77.0
CY5010TR-200 5 X 10 2 20 1/4 30 1/4 Full PSI 49088 78.5
CY5012TR 5 X 12 2 22 1/4 34 1/4 Full PSI 49088 82.5
CY5014TR 5 X 14 2 24 1/4 38 1/4 Full PSI 49088 89.1
CY5016TR 5 X 16 2 26 1/4 42 1/4 Full PSI 49088 95.7
CY5018TR 5 X 18 2 28 1/4 46 1/4 Full PSI 49088 102.3
CY5020TR 5 X 20 2 30 1/4 50 1/4 Full PSI 49088 107.8
CY5024TR 5 X 24 2 34 1/4 58 1/4 Full PSI 49088 117.7
CY5030TR 5 X 30 2 40 1/4 70 1/4 *2265 44470 136.4
CY5036TR 5 X 36 2 46 1/4 82 1/4 *1665 32700 155.1

Tie rod hydraulic cylinders are have four rods (bolts) that connect the ends of a double-acting hydraulic cylinder to add strength and stability to the cylinder and prevent it from coming apart under pressure. Double-acting tie-rod hydraulic cylinders provide power in both directions (extending and retracting), which allows for more precise movement. They have a linear actuator and are used in agricultural equipment, industrial machinery, and construction equipment to support, lift, and press heavy loads. Seals can be replaced as needed to keep cylinders in good working order. Clevis mounts on both ends allow the cylinder to be mounted directly to the equipment. The rod end has a clevis attachment that is welded to the body for strength and stability. The piston-side end cap has a clevis bracket for attaching to equipment.

Standard duty tie rod cylinders

Standard-duty tie-rod hydraulic cylinders are double-acting steel cylinders rated to 2500 psi. They are slightly smaller than heavy-duty cylinders. They provide power in both push and pull directions, allowing for more precise positioning than single-acting cylinders. The hard chrome-plated case-hardened steel rod provides smooth movement and a long service life.
